Chapter 3 Input Module Features

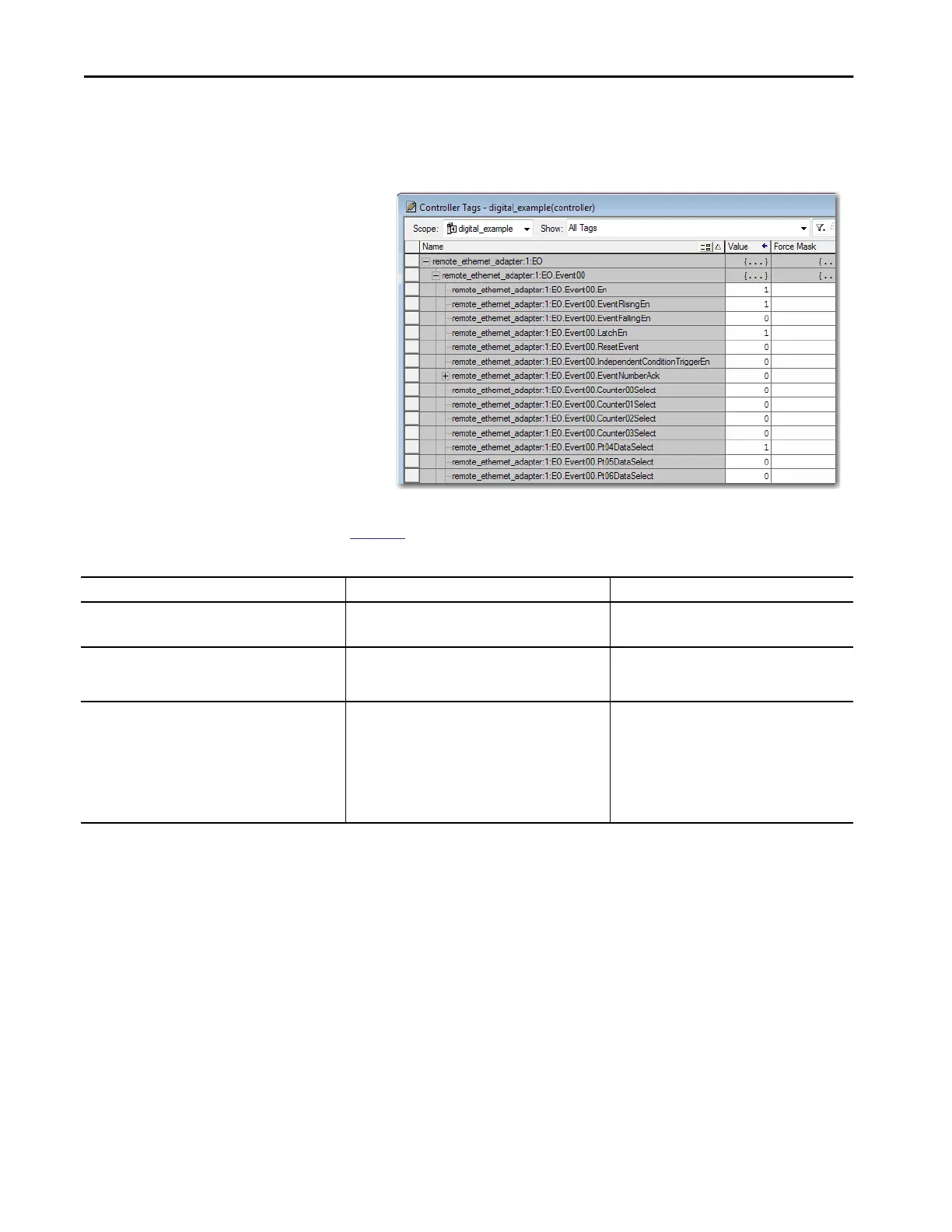

• The event definition parameters are configured in the Event Output s as
shown in this example.
Table 15 describes the tasks that are included in defining an event.
Table 15 - Event Definition
Task Event Output Tag to Change Valid Values
Enable the event. EO.Eventxx.En • 0 = Event is disabled.
• 1 = Event is enabled.
Choose if an input state change or a pattern of input state
changes triggers the event.
EO.Eventxx.IndependentConditionTriggerEn • 0 = Pattern of input state changes triggers the
event.
• 1 = Single input state change triggers the event.
Select at least one point on the module to participate in the
event.
The tag name changes based on the input function. The
following names are available:
• EO.Eventxx.PtxxDataSelect - This tag appears for any
point on the module if no counters are used.
• EO.Eventxx.CounterxxSelect - These tags begin at
point00 and continue based on the number of counters
that the module uses.
• 0 = Point does not participate in the event trigger.
• 1 = Point participates in the event trigger.
