Allen-Bradley Kinetix 6000 User Manual

Rockwell Automation Publication 2094-UM001J-EN-P - March 2017 147
Configure and Start the Kinetix 6000 Drive System Chapter 6
c. Check Open Module Properties.
5. Click OK.

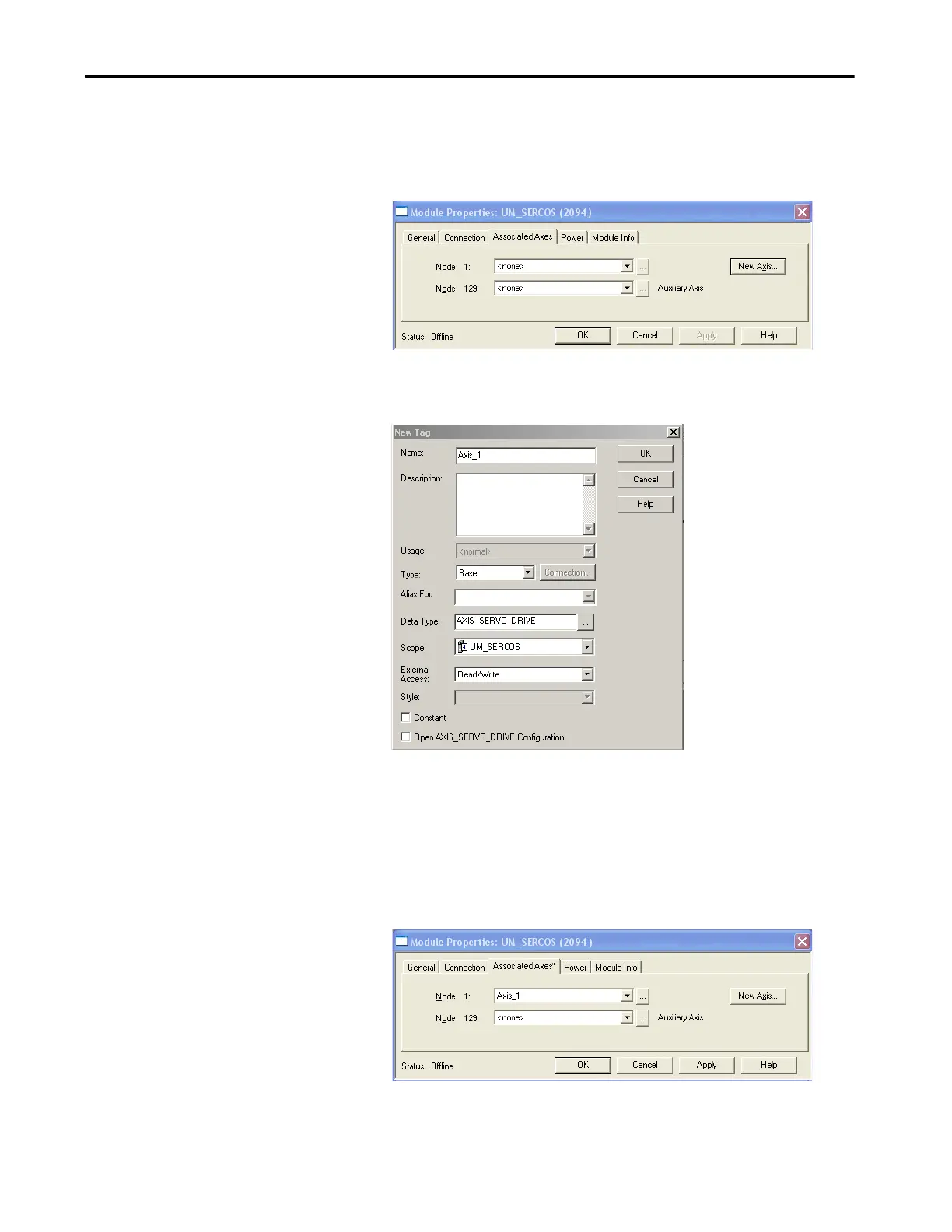

6. Click the Associated Axes tab.
7. Click New Axis.
The New Tag dialog box opens.
8. Type the axis Name.
AXIS_SERVO_DRIVE is the default Data Type.
9. Click OK.
The axis appears under the Ungrouped Axes folder in the Controller
Organizer.
10. Assign your axis to Node 1.

Allen-Bradley Kinetix 6000 Specifications

General

Control Type	Digital
Feedback	Resolver, Encoder
Protection Rating	IP20
Power Range	0.4…22 kW
Communication	Ethernet/IP
Ambient Temperature	0°C to 50°C
Axis	Single-axis, Multi-axis
Safety	Safe Torque-Off
Control Modes	Velocity, Torque, Position
Relative Humidity	5% to 95% (non-condensing)
Vibration Resistance	5.9 m/s² (0.6 g) from 10 Hz to 500 Hz
Shock Resistance	15 g, 11 ms
Storage Temperature	-40°C to 70°C
