Rockwell Automation Publication 1756-RM003N-EN-P - October 2011 245
Compare Instructions (CMP, EQU, GEQ, GRT, LEQ, LES, LIM, MEQ, NEQ) Chapter 5

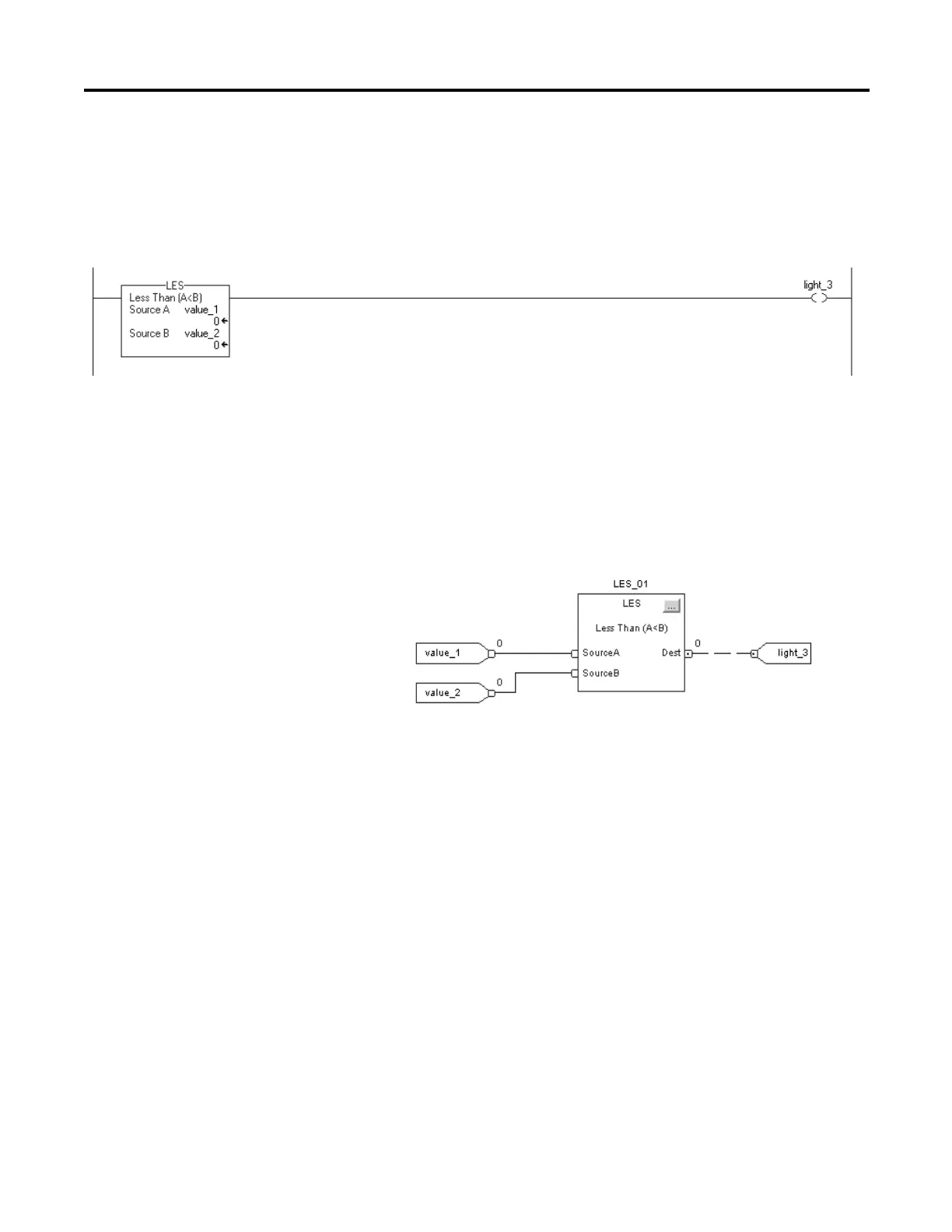

Example: If value_1 is less than value_2, set light_3. If value_1 is greater than or equal to
value_2, clear light_3.
Relay Ladder
Structured Text
light_3 := (value_1 < value_2);
Function Block
