Chapter 6 Compute/Math Instructions (CPT, ADD, SUB, MUL, DIV, MOD, SQR, SQRT, NEG, ABS)

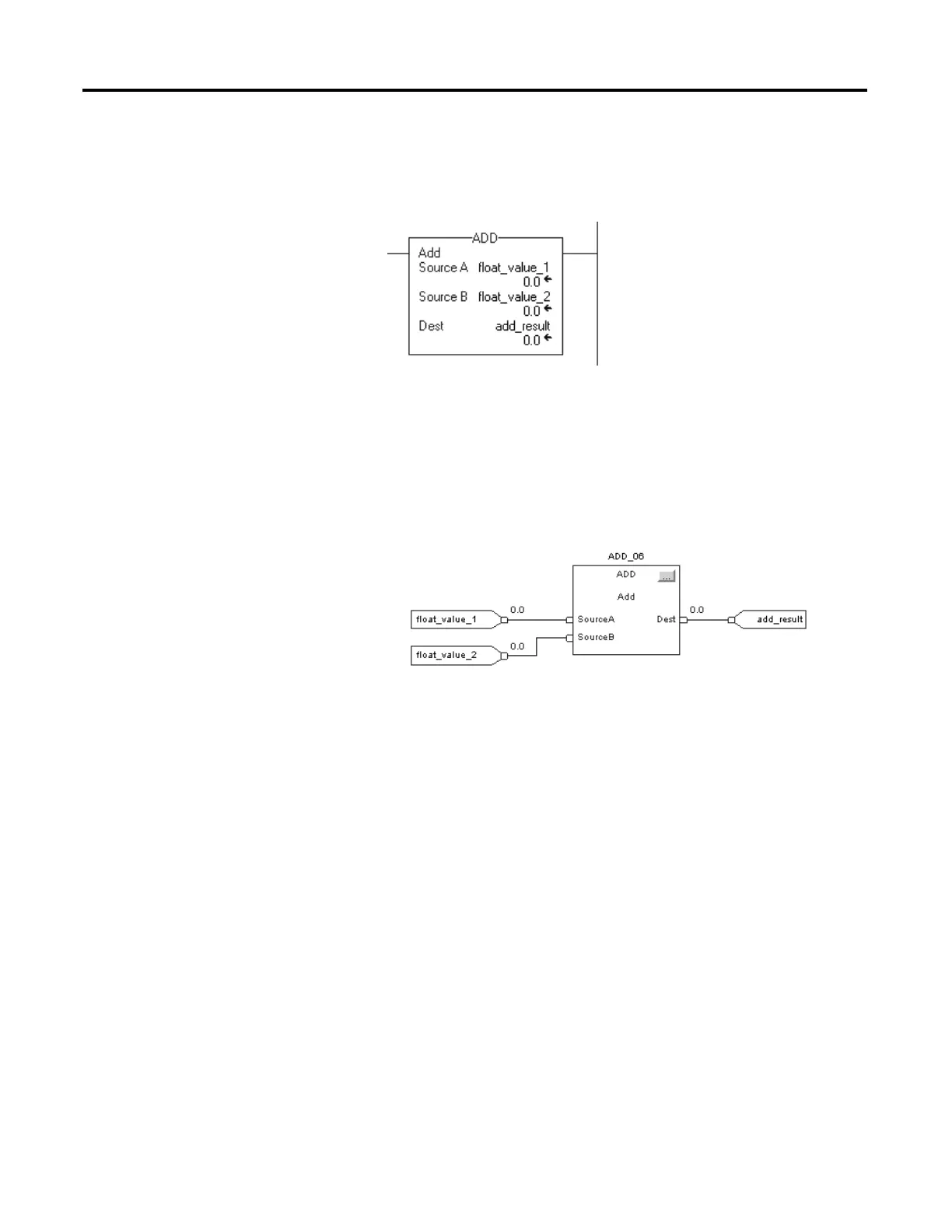

Example: Add float_value_1 to float_value_2 and place the result in add_result.
Relay Ladder
Structured Text
add_result := float_value_1 + float_value_2;
Function Block
