Advanced Math Instructions (LN, LOG, XPY) Chapter 15

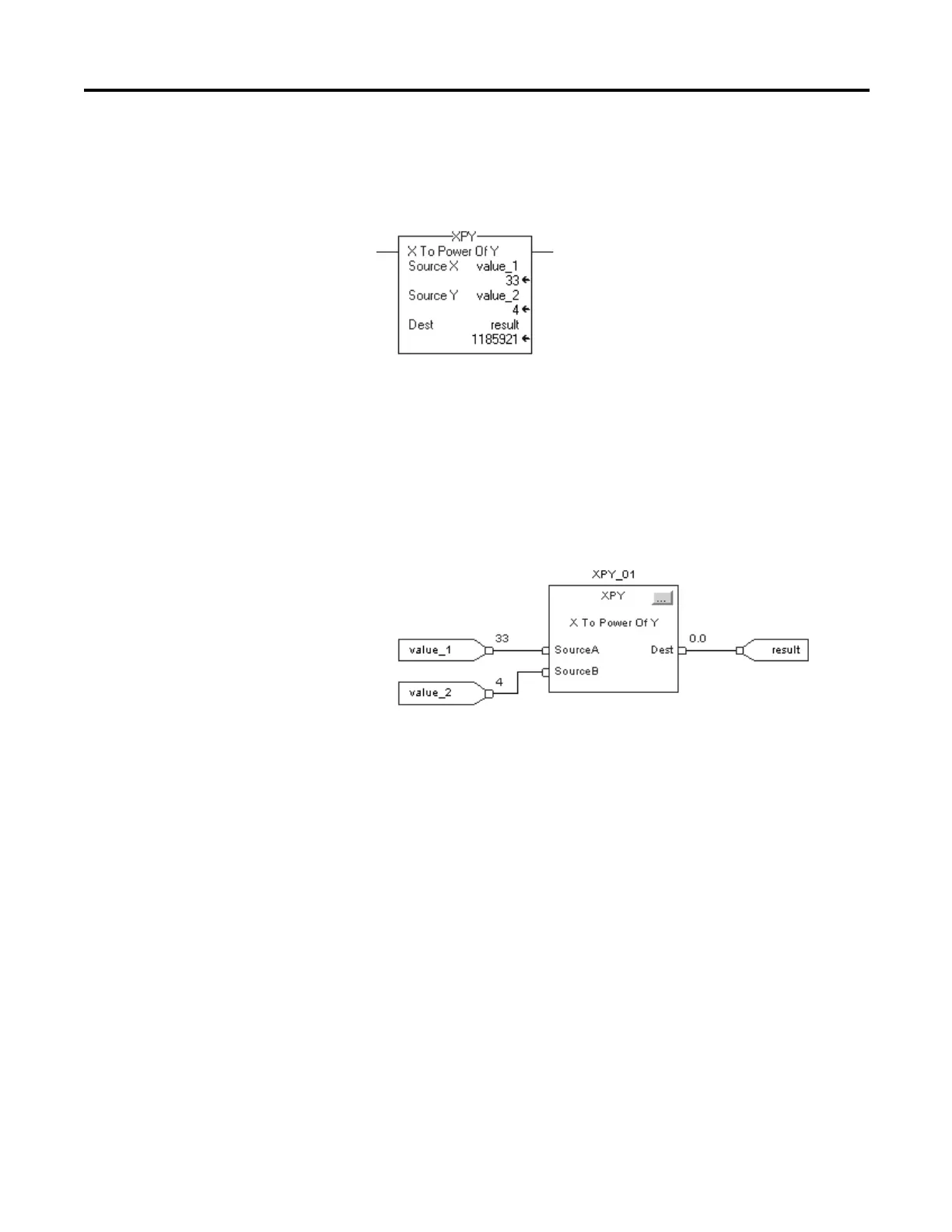

Example: The XPY instruction takes value_1 to the power of value_2 and places the result
in result.
Relay Ladder
Structured Text
result := (value_1 ∗∗ value_2);
Function Block
