Allen-Bradley Logix5000 Reference Manual

Rockwell Automation Publication 1756-RM003N-EN-P - October 2011 353

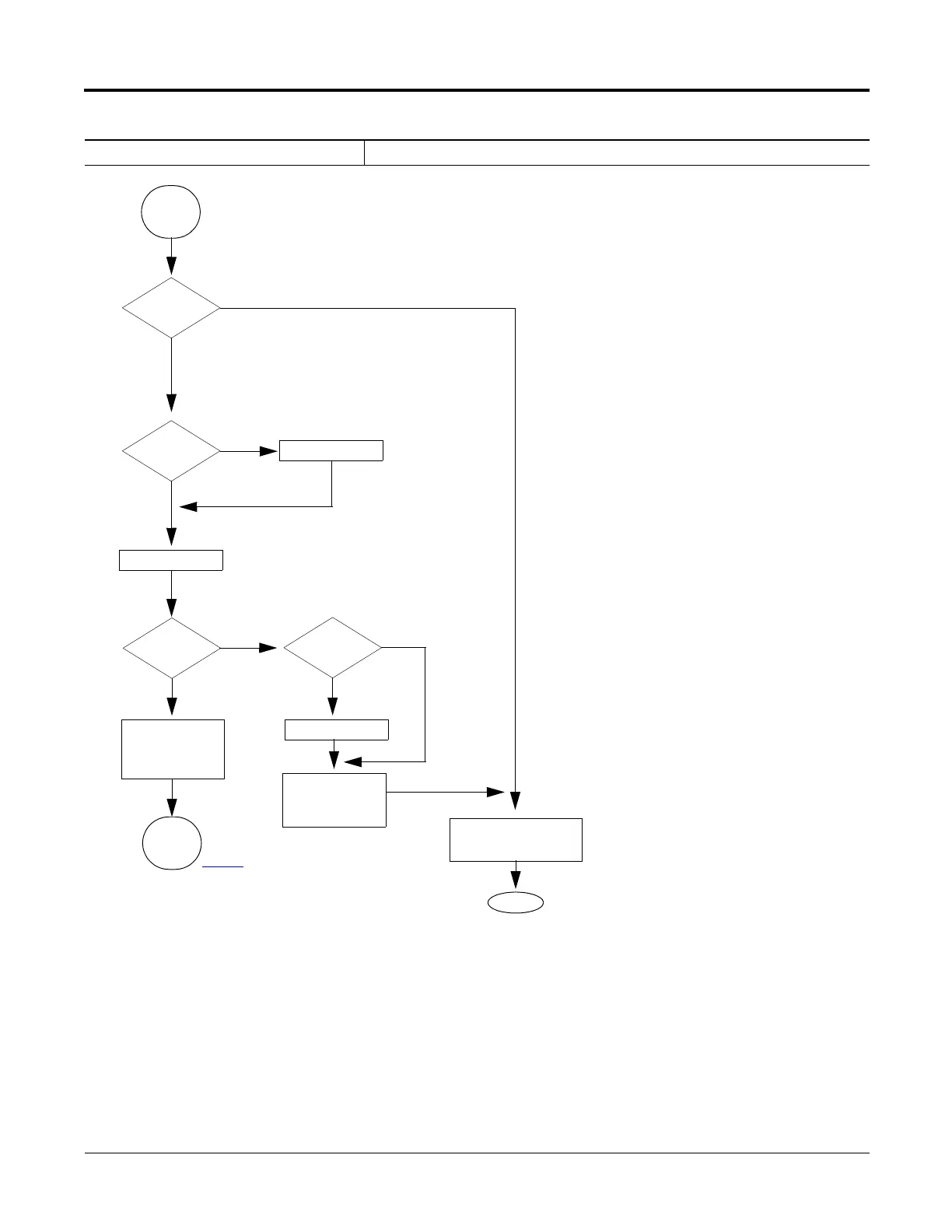

Array (File)/Misc. Instructions (FAL, FSC, COP, CPS, FLL, AVE, SRT, STD, SIZE) Chapter 8
Condition Relay Ladder Action
Examine .EN Bit
.EN Bit = 1
.EN Bit = 0
.POS = .POS + 1
.POS ≥ .LEN
Yes
No
.EN bit is set.
loop_count = 1
.POS = .POS - 1
Examine
internal bit.
Bit = 1
Bit = 0
Internal bit is set.
INC
Mode
Common
.POS = .POS - 1
.POS = 0
Yes
No
.DN bit is set.
.EN bit is set.
Rung-condition-out is set
to true.
End
