Allen-Bradley Logix5000

Rockwell Automation Publication 1756-RM003N-EN-P - October 2011 91
Bit Instructions (XIC, XIO, OTE, OTL, OTU, ONS, OSR, OSF, OSRI, OSFI) Chapter 2

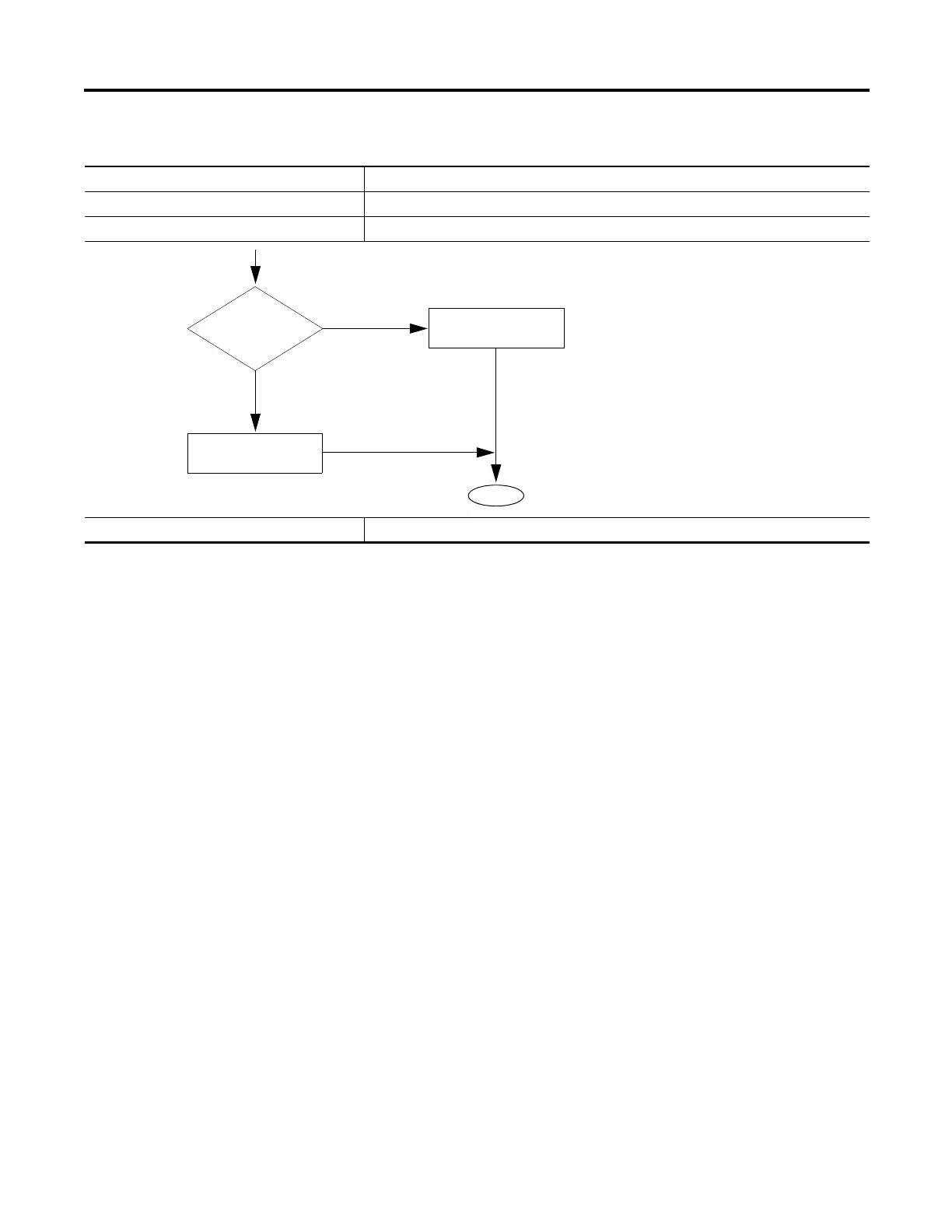

Execution:
Condition Relay Ladder Action
Prescan The rung-condition-out is set to false.
Rung-condition-in is false The rung-condition-out is set to false.
Postscan The rung-condition-out is set to false.
Examine data bit.
Data Bit = 0
Data Bit = 1
Rung-condition-out
is set to false.
Rung-condition-out is
set to true.
Rung-condition-in is true
End
