Rockwell Automation Publication 20Y-TG001C-EN-P - April 2017 57
AFE Power Structure Component Section Chapter 4

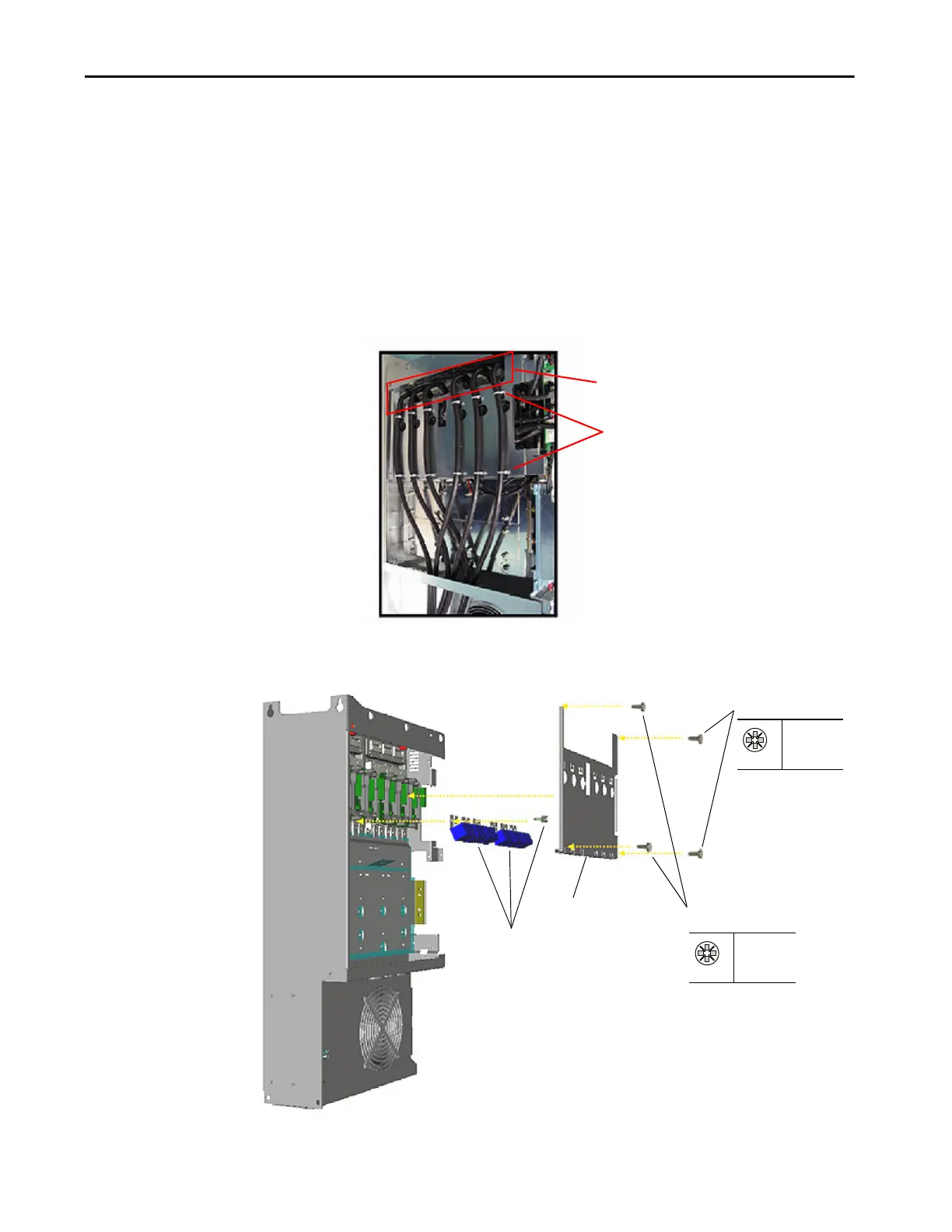

10. Remove the M5 Pozidriv screws that secure the bus bar terminals to the
power structure.
11. Slide the bus bar terminals out of the frame.
12. Remove the bus bar airflow channel from the frame.
13. Remove the M8 x 20 hexagonal screws that secure the input power
cables to the input power bus bar.
Tightening torque for reassembly is 14 N•m (124 lb•in).
14. Cut and remove the cable ties that secure the input power cables to the
EMC cover plate and remove the cables.
15. Remove the M5 x 10 Pozidriv and M4 x 8 Pozidriv screws that secure
the EMC cover to the AFE, and remove the cover.
Remove Screws and Input
Power Cables
Cut Cable Ties
Remove Screws
Remove Screw and
Snubber Capacitors
PZ2
4 N•m
(35 lb•in)
Remove Screws
Remove EMC Cover
PZ2
3 N•m
(27 lb•in)
To Next Page
