Page 48
Allied Telesis AT-8000S Switch
Web Browser Interface User’s Guide

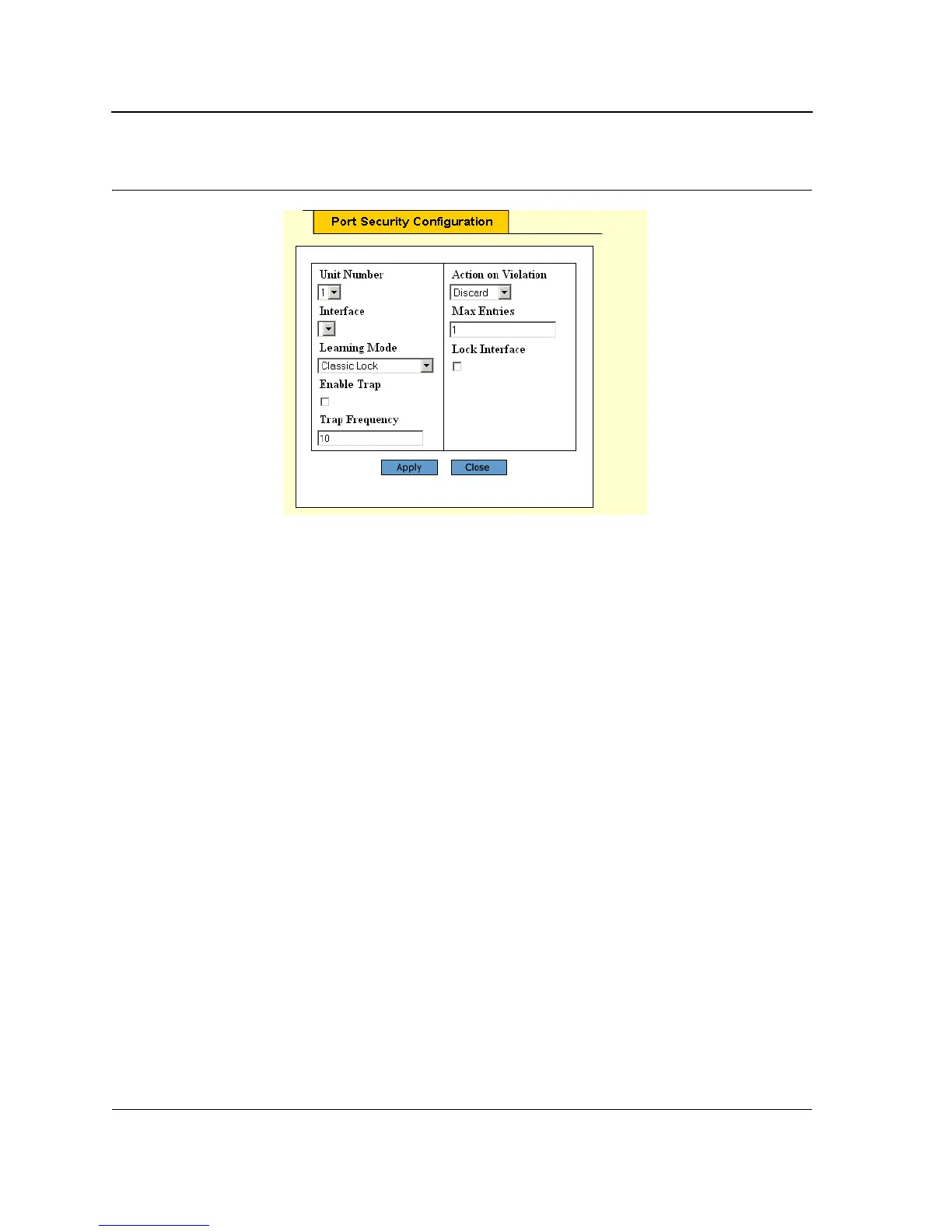

Figure 28: Port Security Configuration Page
The Port Security Configuration Page contains the following fields:
• Unit Number — Defines the unit number.
• Interface — Displays the port or LAG name.
• Learning Mode — Defines the locked port type. The Learning Mode field is enabled only if Locked is
selected in the Set Port field.The possible field values are:
– Classic Lock — Locks the port using the classic lock mechanism. The port is immediately locked,
regardless of the number of addresses that have already been learned.
– Limited Dynamic Lock — Locks the port by deleting the current dynamic MAC addresses associated with
the port. The port learns up to the maximum addresses allowed on the port. Both relearning and aging
MAC addresses are enabled.
• Enable Trap — Indicates if the SNMP trap generated if there is a violation. The possible values are:
– Yes — Trap is generated.
– No — No trap is generated.
• Trap Frequency — The time interval (in seconds) between traps. The possible field range is 1-1,000,000
seconds, and the default is 10 seconds.
• Action On Violation— Indicates the intruder action defined for the port. Indicates the action to be applied to
packets arriving on a locked port. The possible values are:
– Forward — Forwards packets from an unknown source without learning the MAC address.
– Discard — Discards packets from any unlearned source. This is the default value.
– Shutdown — Discards packets from any unlearned source and shuts down the port. The port remains
shut down until reactivated, or until the device is reset.
• Max Entries — Specifies the number of MAC addresses that can be learned on the port before the port is
locked. The field range is 1-128. The default is 1.
• Lock Interface —Locks the interface.
4. Select the security mode for the selected port(s).
5. Click Apply. The port security settings are saved and the device is updated.
