C1n Series WIFI AP/CPE Web-admin Configuration Manual
TPS15-003_rev1.3

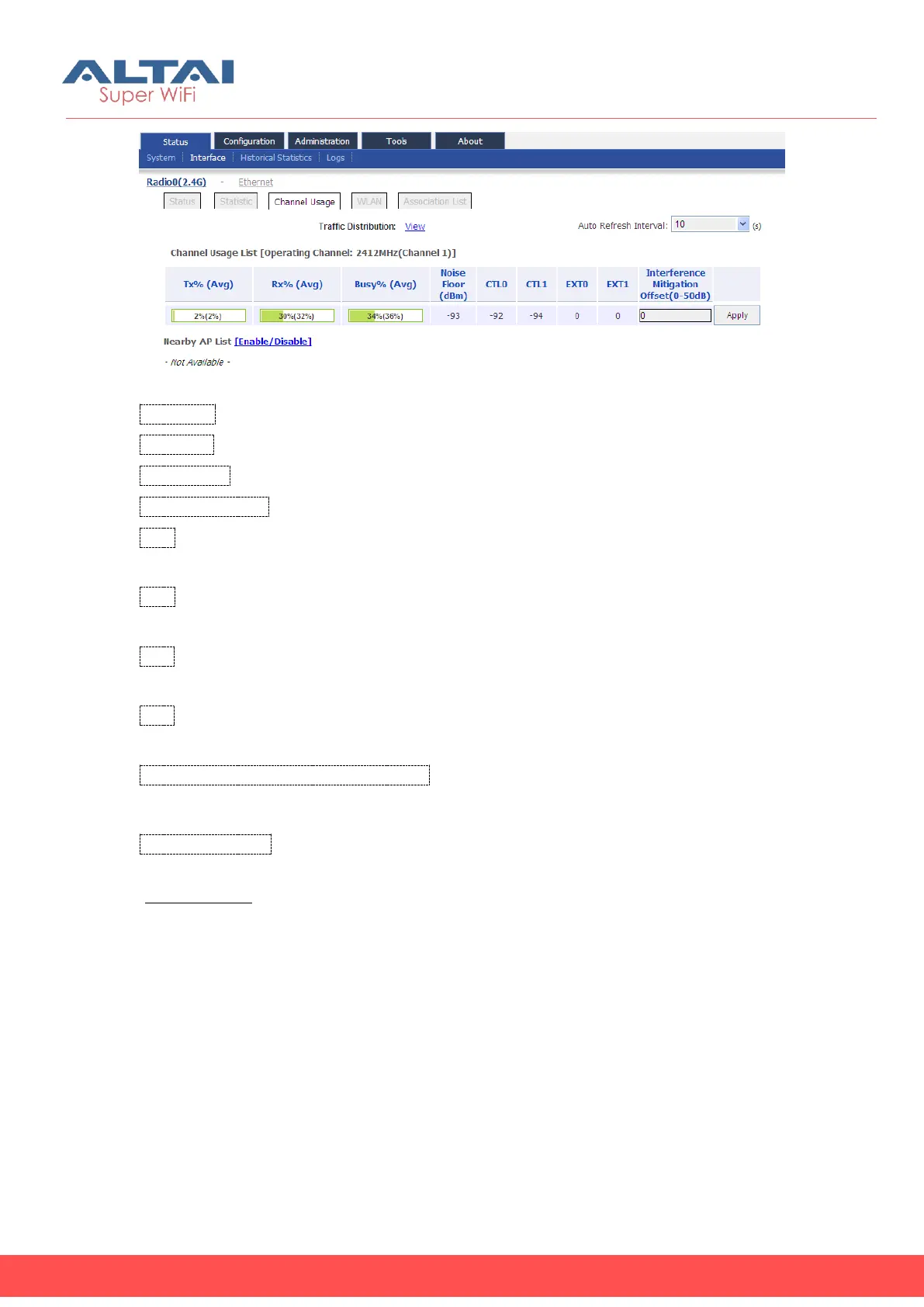

Figure 4-5 Radio0 Channel Usage information
Tx% (Avg): Average transmit frames percentage of operating channel.
Rx%(Avg): Average receive frames percentage of operating channel.
Busy%(Avg): Average busy state percentage of operating channel.
Noise Floor(dBm): Noise floor of operating channel.
CTL0: Chain 0 Noise Floor of the Control Channel (i.e. the center channel for HT20
case).
CTL1: Chain 1 Noise Floor of the Control Channel (i.e. the center channel for HT20
case).
EXT0: Chain 0 Noise Floor of the Extension Channel (i.e. the 2
nd
channel of the HT40
case).
EXT1: Chain 1 Noise Floor of the Extension Channel (i.e. the 2
nd
channel of the HT40
case).
Interference Mitigation Offset(0-50dB): This option will mask all noise / valid signal
below "0-50" dB.
Traffic Distribution: Shows the distribution of control frame, data frame, management
frame, etc. This information can be used to analyses device’s performance. Click
‘reset statistics’ can rest the #TX, TxBytes, TxBytes%, #Rx, RxBytes and RxBytes% data.
Click ‘Refresh’ button can refresh the #TX, TxBytes, TxBytes%, #Rx, RxBytes, RxBytes%
data. Click ‘close’ button at the bottom can close the ‘Traffic Distribution Statistics’
webpage.
