Initial operation
100 KE/KX/KG (RIGID) BAH0089-7 02.2020
6.6.3 Fitting the lift height limiter (specialist workshop)
CAUTION
The hydraulic system is under high pressure.
Depressurise the hydraulic system before starting work on the lifting
frame.
1. Couple the tractor to the implement.
2. Lower the lifting frame.
3. Secure tractor and implement against
unintentional starting and rolling away.
4. Depressurise the hydraulic system.
5. Uncouple the lifting frame hydraulic hose
line from the tractor.
6. Disconnect the hydraulic hose line from the
installed T-connector (Fig. 84/5).
7. Screw on the pre-assembled valve holder
(Fig. 84/1).
8. Connect the hydraulic hoses to the new T-
connector on the valve (Fig. 84/5).
9. Attach the white pull rope with the eyelet
onto the catch hook (Fig. 84/2).
10. Mount the eye bolt as a rope guide (Fig.
84/3).
11. Mount the actuation bolt onto the top link
(Fig. 84/4).
12. Connect the hydraulic plug to a single-
acting control unit (
green) on the tractor.
13. Instruct any people in the area to stand at a
minimum distance of 10.0 m from the
implement.
14. Actuate the tractor control unit in the tractor
cab.
15. Check the lifting frame for correct operation
and inspect it for leaks.

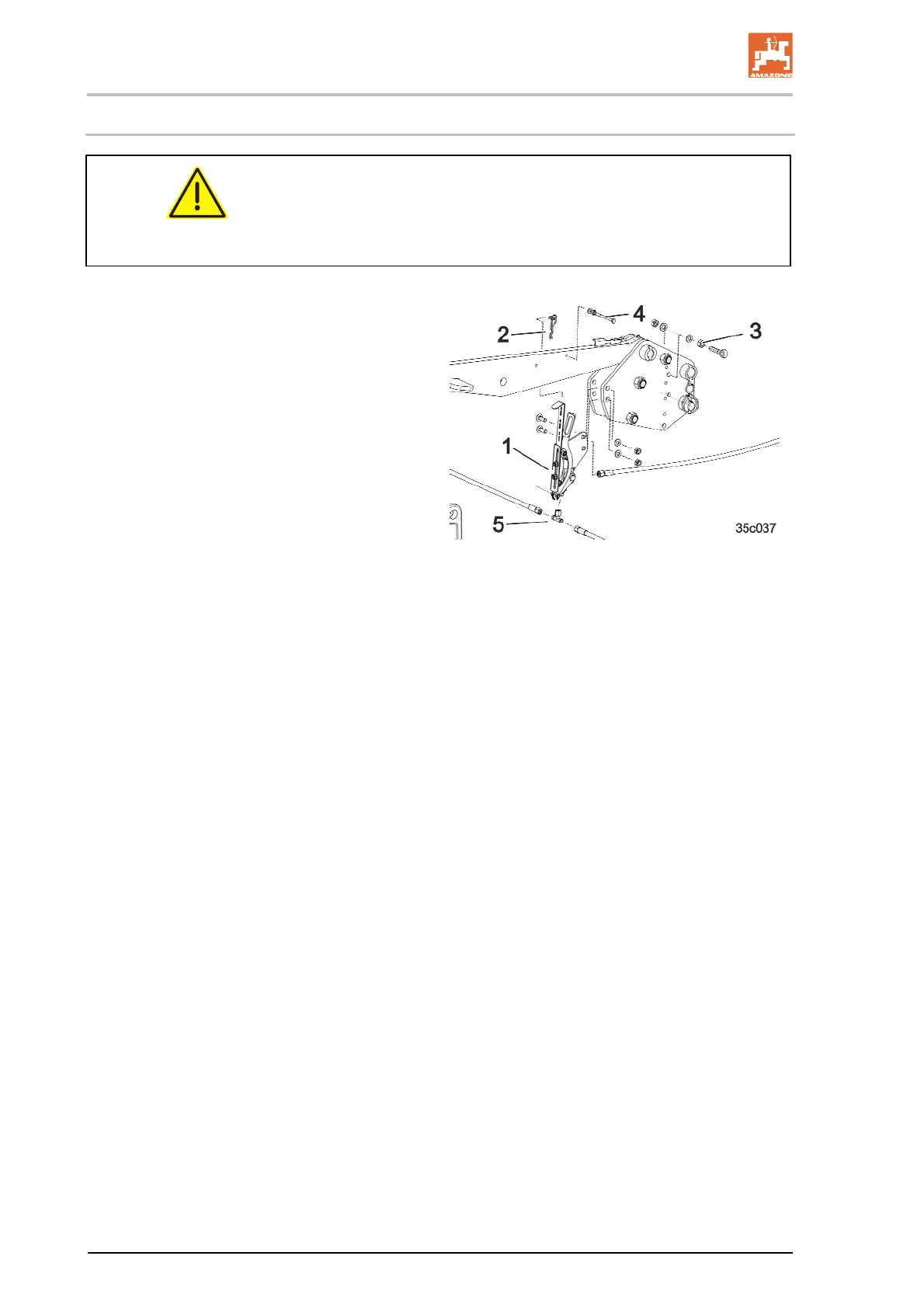

Fig. 84
