Coupling and uncoupling the implement
KE/KX/KG (RIGID) BAH0089-7 02.2020 105
7.2 Uncoupling the implement
WARNING
Danger of being crushed, cut, caught, drawn in or struck
through insufficient stability and possible tilting of the uncou-
pled implement!
Park the implement on a level surface on solid ground.
CAUTION
Avoid coming into contact with hot gearbox and universal joint
shaft components.
Wear protective gloves.
1. Switch off the tractor PTO shaft.
Wait until the tool tines have come to a complete stop.
2. Park the implement on a level surface on solid ground.
Ensure that:
The tractor wheel mark eradicators (optional) can sink into
loose soil. Or pin the tractor wheel mark eradicators all the
way at the top.
3. Apply the tractor parking brake, switch the tractor engine off and
remove the ignition key.
4. Relieve the top link by adjusting the top link length.
5. Decouple the upper link hook, working from the tractor cab.
6. Decouple the lower link hooks, working from the tractor cab.
7. Pull the tractor forward approx. 25 cm.
The clearance between tractor and implement provides
convenient access for uncoupling the universal joint shaft and
supply lines.
8. Apply the tractor parking brake, switch the tractor engine off and
remove the ignition key.
9. Uncouple the hydraulic hose lines.
10. Fasten the supply lines to the hose cabinet.
11. Remove the universal joint shaft from the
tractor PTO shaft (see operating manual
from the universal joint shaft manufacturer).

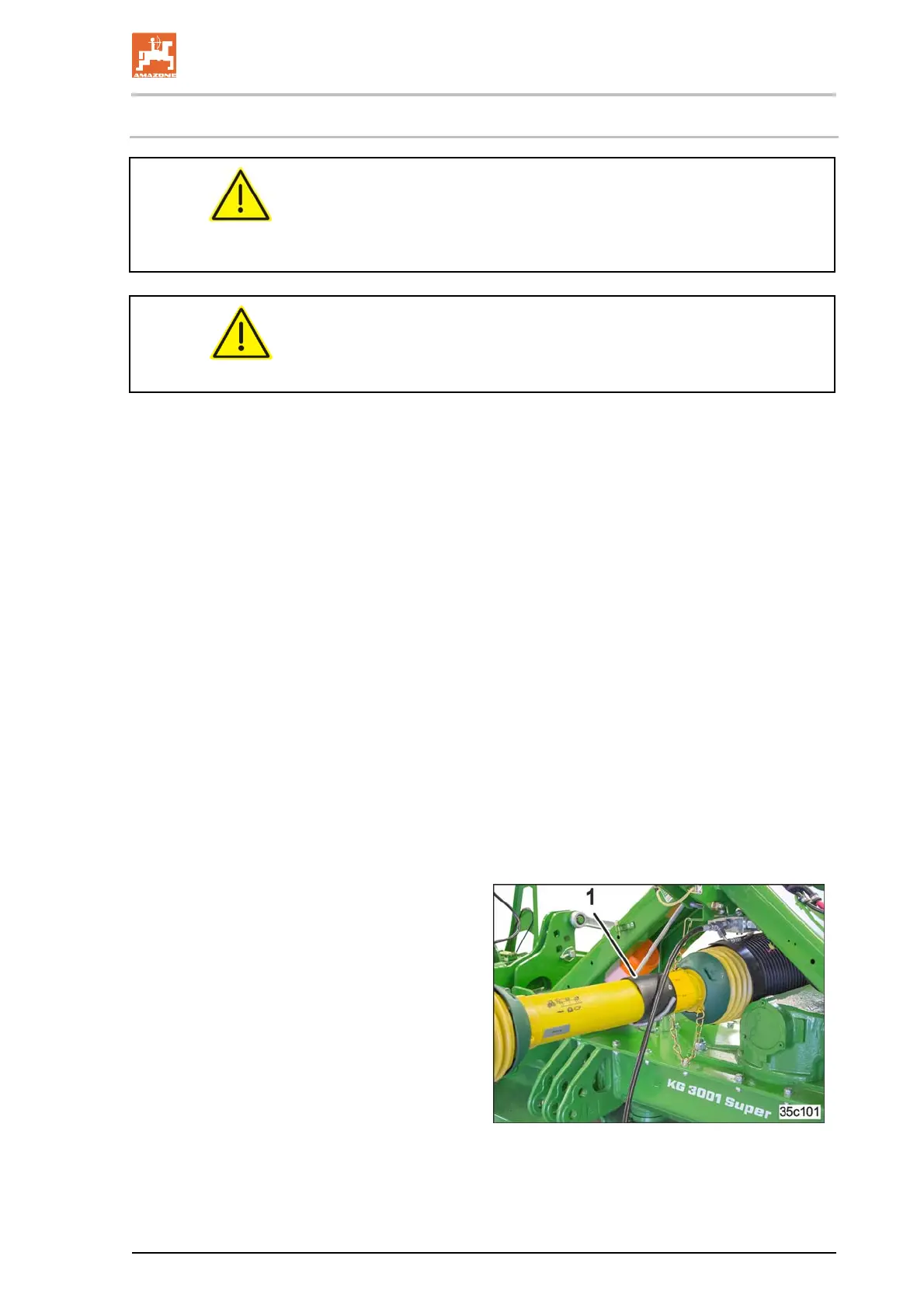

12. Hook the universal joint shaft into the
bracket (Fig. 88/1).
Fig. 88
