Coupling and uncoupling the implement
104 KE/KX/KG (RIGID) BAH0089-7 02.2020
Ensure that the universal joint shaft
has a sufficient swivelling range in all
operating conditions. The supporting
chains must not become caught on
implement or tractor parts.
12. Fasten the bracket to the transport bracket
and secure it using a linch pin (Fig. 86/1).
13. Instruct persons to get out of the danger
area between the tractor and the
implement.
14. Engage the lower hinging points (Fig. 87/1)
of the implement using the tractor lower
links. The lower link hooks lock automatical-
ly.
15. Fasten the tractor top link (Fig. 87/2) to the
implement. The upper link hook locks au-
tomatically.
The amount of lifting force required to lift
the implement is at a minimum when the
tractor top link is horizontal.
16. Bring the soil tillage implement into a
straight position by adjusting the top link.
17. Secure the top link against twisting.
18. Check that the upper and lower link hooks
are locked correctly.

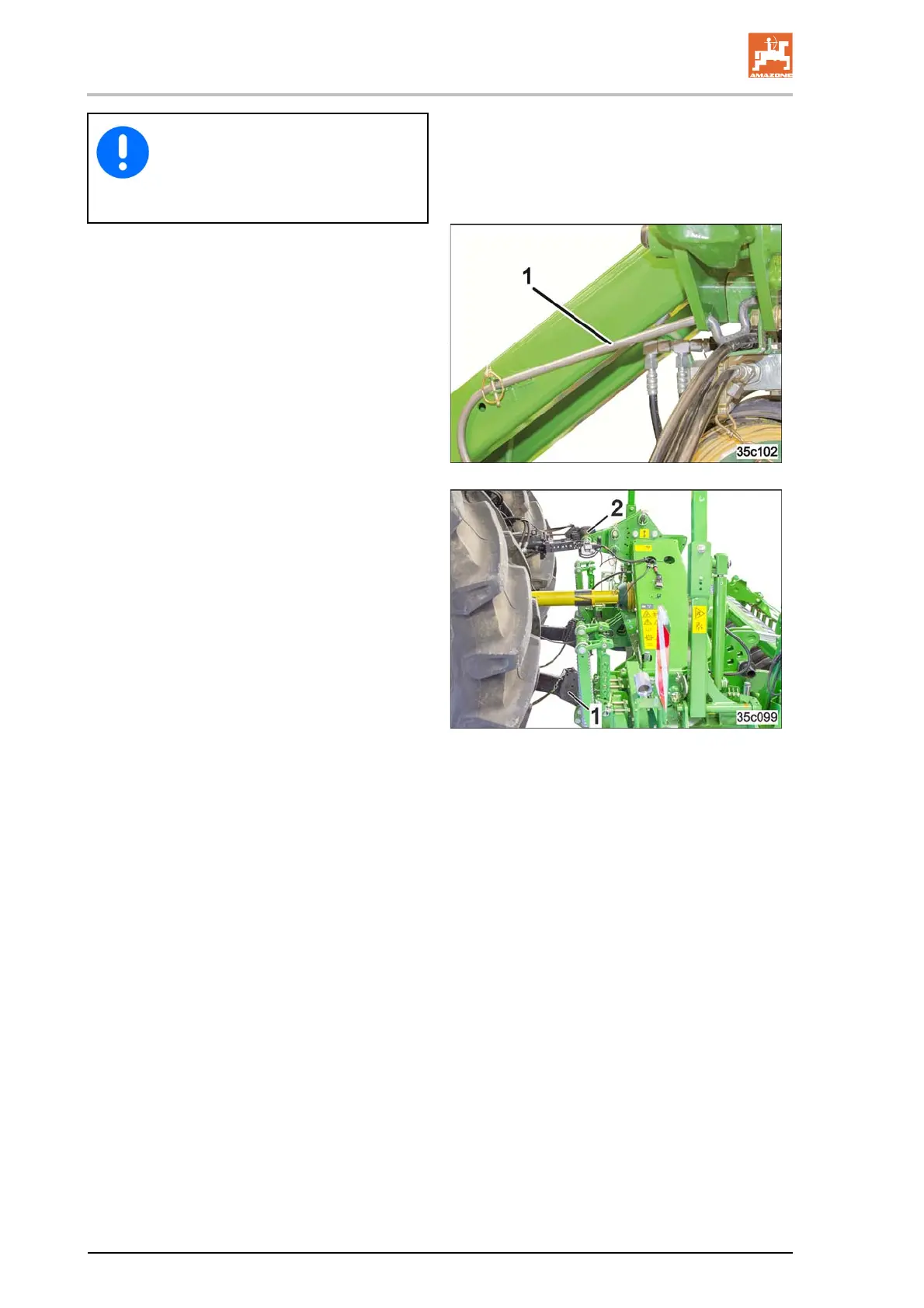

Fig. 86
Fig. 87
