Settings
KE/KX/KG (RIGID) BAH0089-7 02.2020 121

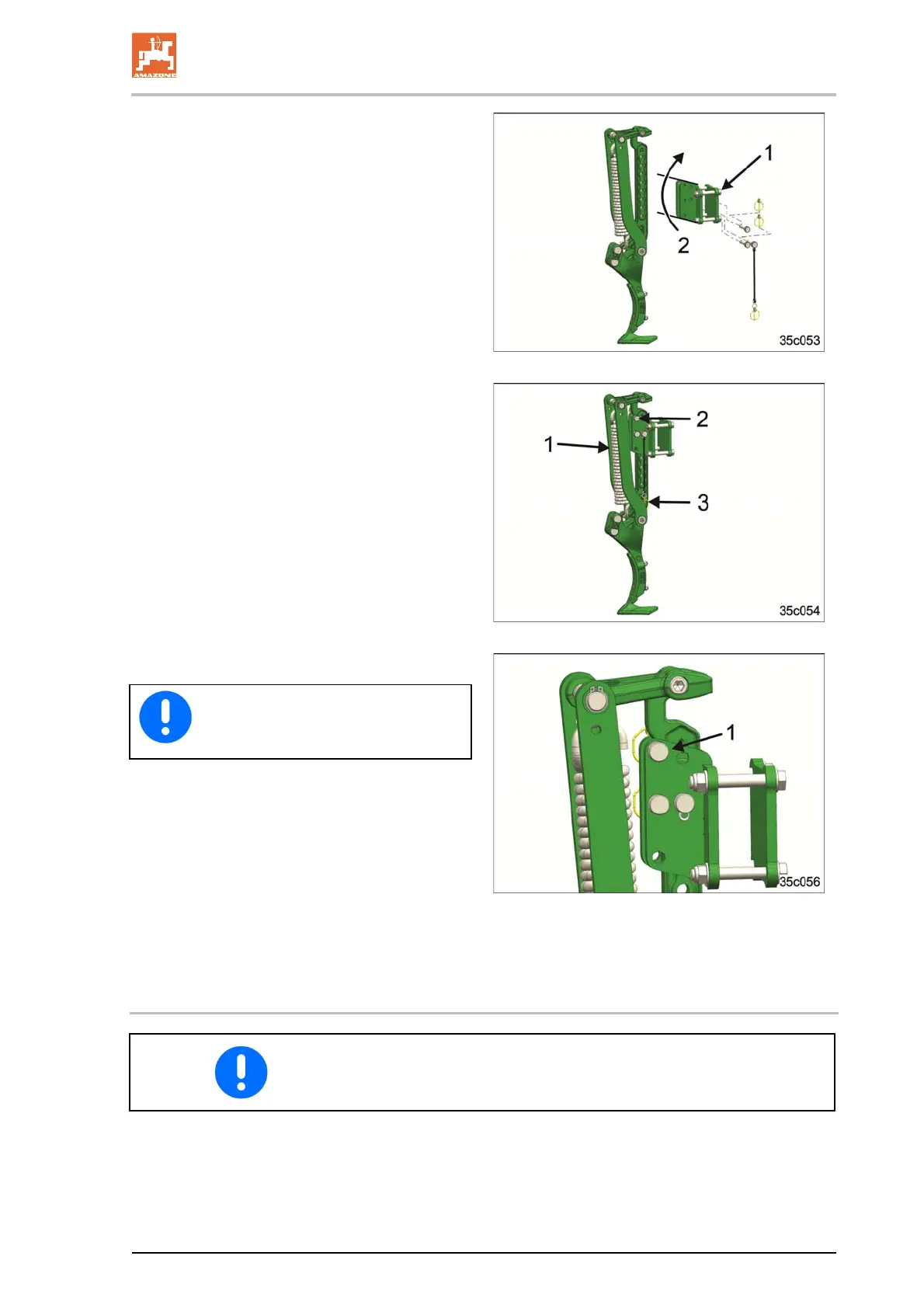

5. Remove the fixing bolts from the wheel
mark eradicator bracket (Fig. 121/1)
6. Turn the wheel mark eradicator bracket
upwards (Fig. 121/2)
7. Insert the fixing bolts of the wheel mark
eradicator bracket and tighten them (Fig.
121/1)
Fig. 121
8. Holding it by the recessed grip, insert the
wheel mark eradicator in the bracket (Fig.
122/1)
Using the recessed grip, put the wheel mark
eradicator into the desired position (Fig.
117/3)
9. Insert all of the positioning pins (Fig. 122/2).
10. Secure the positioning pins with linch pins
(Fig. 122/3).
Fig. 122
Fig. 123
Insert the locking pin into the top hole
(Fig. 123/1). The locking pin may not
be removed.
8.5 Adjusting the roller scraper
To prevent damage to the roller sleeve, the carbide-coated scrapers
must not touch the roller sleeve.
