Use of the implement
138 KE/KX/KG (RIGID) BAH0089-7 02.2020
10.4 After use
When switching off the implement, ensure that the soil tillage imple-
ment is parked on firm ground.
10.4.1 Moving the wheel mark eradicator into transport position
When switching off the implement, ensure that the soil tillage imple-
ment is parked on firm ground.
To prevent damage, the implement must not be put down on the
wheel mark eradicators. Using the recessed grip, secure the wheel
mark eradicators in the topmost position (see Fig. 149).
Complaints shall not be accepted if damage is caused by putting
the implement down on the wheel mark eradicators.

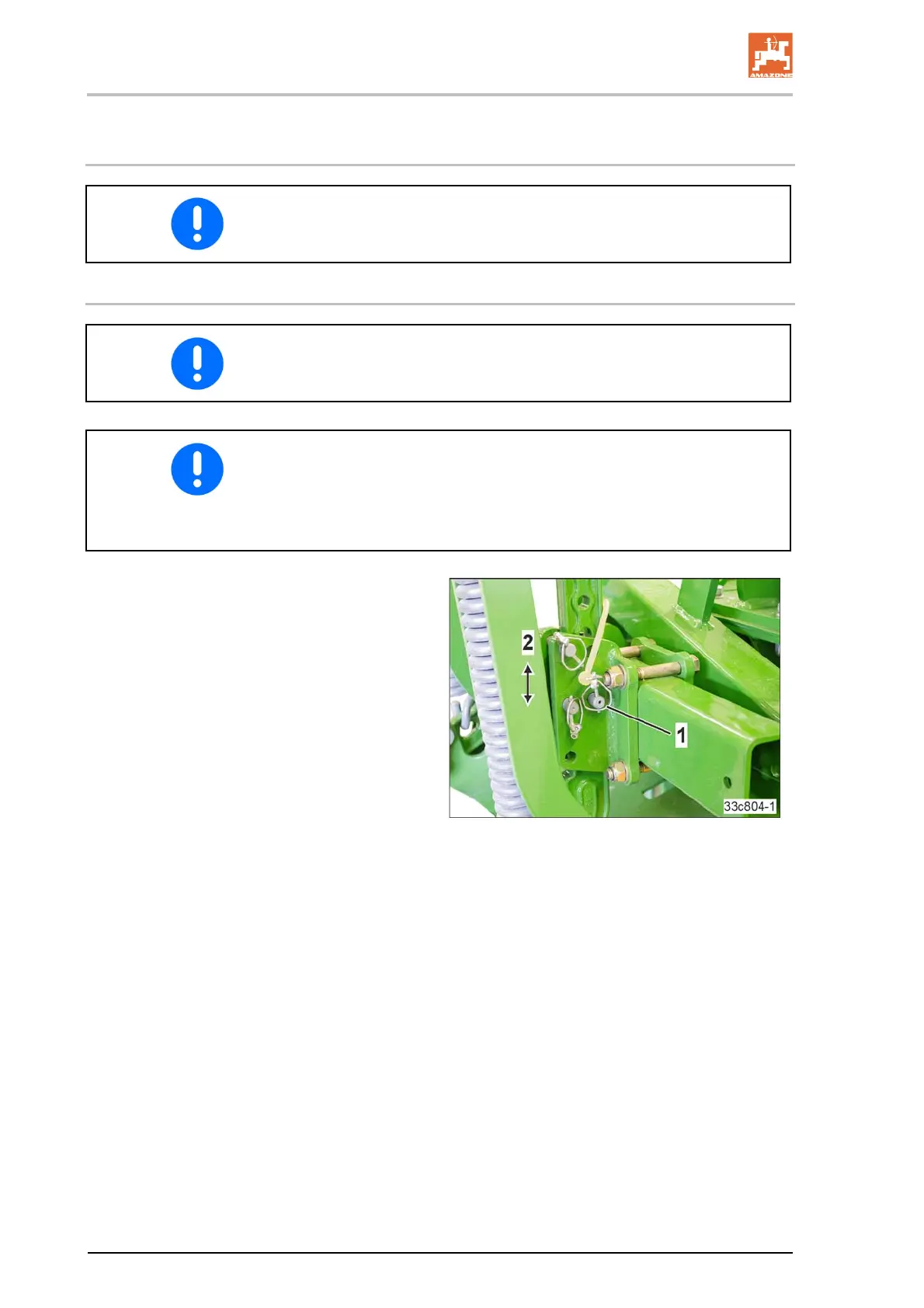

1. Remove the linch pin (Fig. 149/1)
2. Grab the wheel mark eradication by the
recessed grip (Fig. 115/1)
3. Remove the locking pins
4. Using the recessed grip, secure the wheel
mark eradicators in the topmost position
(see Fig. 149/2)
5. Secure the locking pin with a linch pin (Fig.
149/1)
Fig. 149
