Structure and function
KE/KX/KG (RIGID) BAH0089-7 02.2020 75

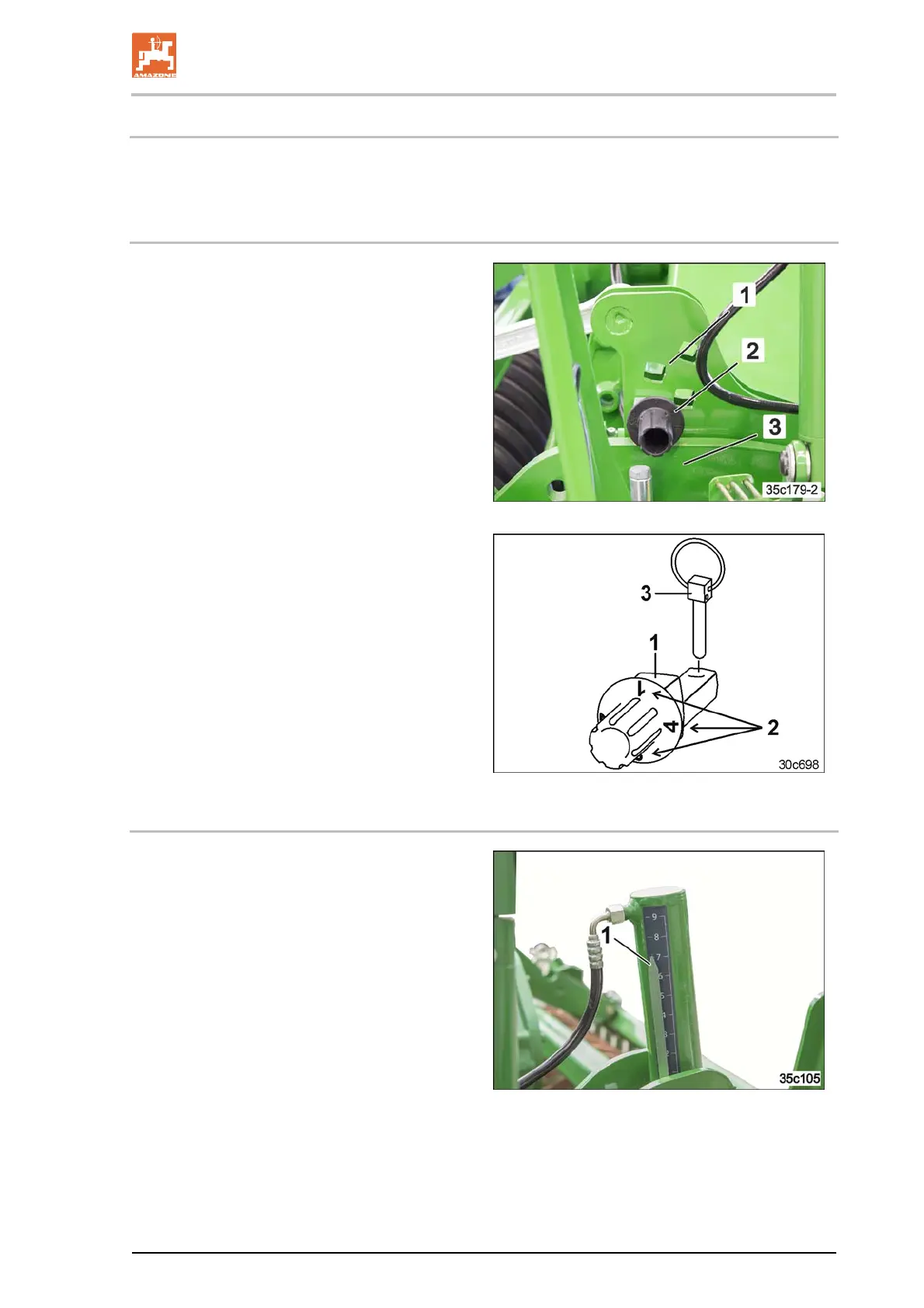

5.9 Working depth of the soil tillage implement
The soil tillage implement is supported by the roller. This ensures that
the working depth of the soil tillage implement is precisely maintained.
5.9.1 Mechanical adjustment
The adjuster segment (Fig. 52/1) is used to ad-
just the working depth.
The working depth is adjusted by relocating the
depth setting pin (Fig. 52/2) in the adjuster seg-
ment.
The various settings have an effect on a roller
carrying arm (Fig. 52/3) below the depth setting
pin.
Fig. 52
A finer graduation of the working depth is at-
tained by turning the depth setting pin in the
same square hole.
Fig. 53
5.9.2 Hydraulic adjustment (optional)
The rotary cultivator is supported on the roller by
the carrying arms and maintains a constant
working depth. The working depth can be adjust-
ed hydraulically during work.
Two hydraulic cylinders are connected to the
tractor control unit (
beige) for adjusting the work-
ing depth. The scale (Fig. 54/1) displays the set
working depth.
Fig. 54
