Initial operation
KE/KX/KG (RIGID) BAH0089-7 02.2020 99
6.6.2 Installing lifting frame 3.2 (specialist workshop)

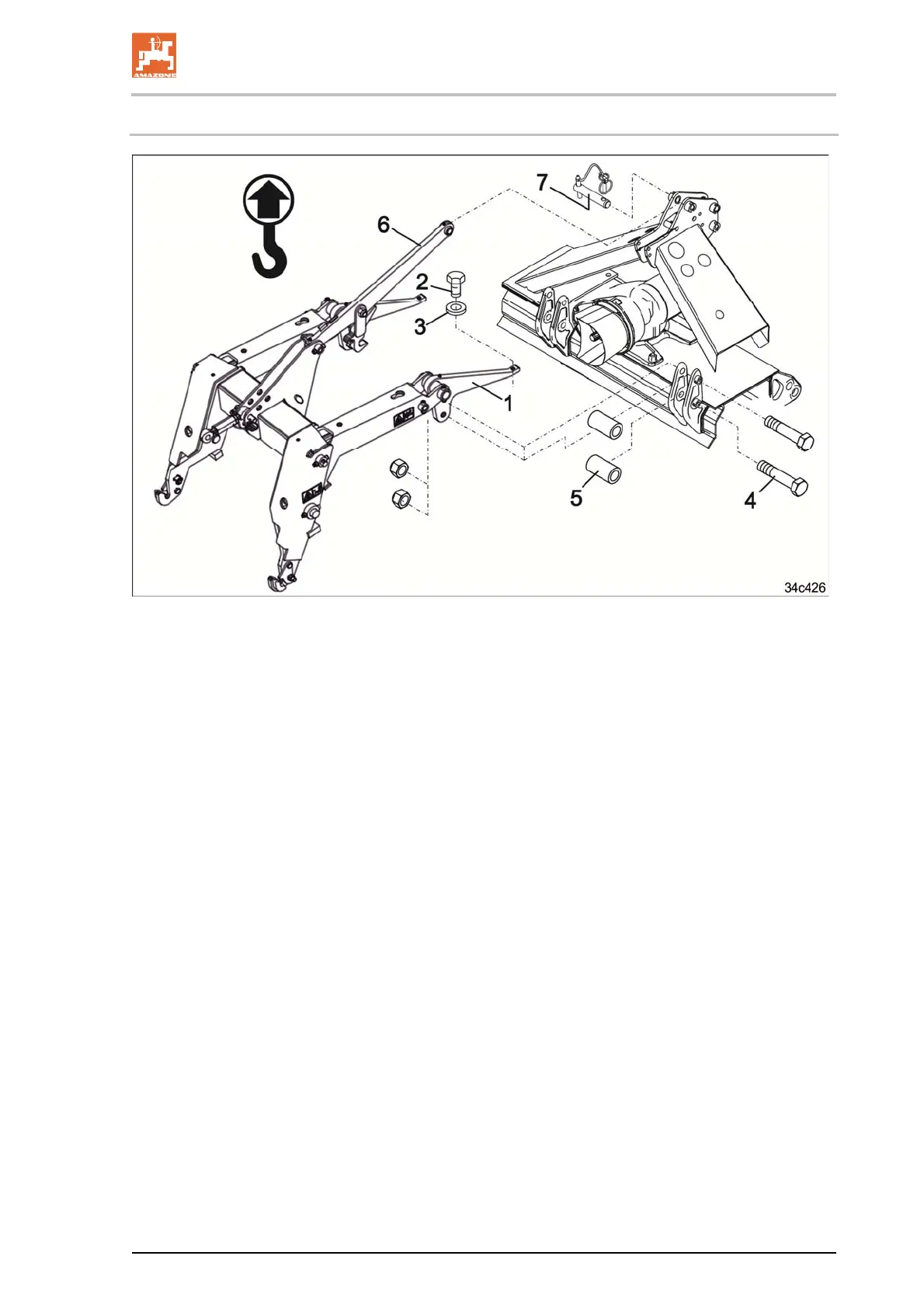

Fig. 83
1. Couple the tractor to the implement.
2. Park the implement on a firm surface.
3. Switch off the tractor PTO shaft, apply the tractor parking brake,
switch the tractor engine off and remove the ignition spanner.
4. Hook the lifting frame to a crane
5. Screw the bracket (Fig. 83/1) to the soil tillage implement using
two implement bolts (Fig. 83/2)
with discs (Fig. 83/3)
4 bolts (Fig. 83/4)
with 4 spacer sleeves (Fig. 83/5).
6. Position the top link (Fig. 83/6) with a pin (Fig. 83/7) and secure
with a linch pin.
7. Connect the hydraulic lines to the hydraulic cylinder and secure
with cable ties.
8. Connect the hydraulic plug to a single-acting control unit (
green)
on the tractor.
9. Instruct any people in the area to stand at a minimum distance
of 10.0 m from the implement.
10. Actuate the tractor control unit (
green) in the tractor cab.
11. Check the lifting frame for correct operation and inspect it for
leaks.
