Initial operation
98 KE/KX/KG (RIGID) BAH0089-7 02.2020
6.6.1 Attaching lifting frame 2.2 (specialist workshop)

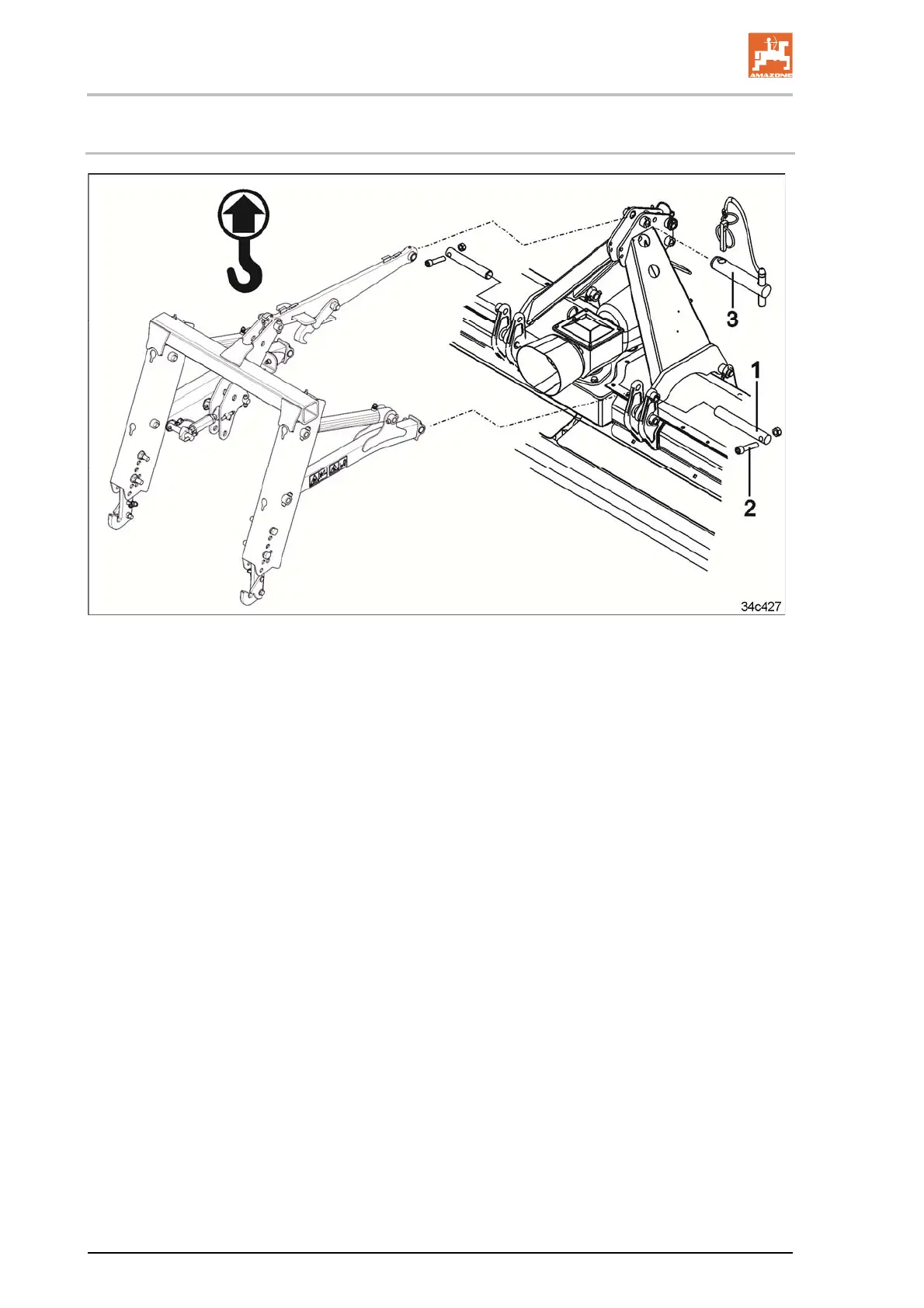

Fig. 82
1. Couple the tractor to the implement.
2. Park the implement on a firm surface.
3. Switch off the tractor PTO shaft, apply the tractor parking brake,
switch the tractor engine off and remove the ignition spanner.
4. Hook the lifting frame to a crane.
5. Peg the lifting frame at the lower pivot points. Secure the pin
(Fig. 82/1) with a bolt (Fig. 82/2) and nut.
6. Position the top link with a pin (Fig. 82/3) and secure with a linch
pin.
7. Connect the hydraulic lines to the hydraulic cylinder and secure
with cable ties.
8. Connect the hydraulic plug to a single-acting control unit (green)
on the tractor.
9. Instruct any people in the area to stand at a minimum distance
of 10.0 m from the implement.
10. Actuate the tractor control unit (green) in the tractor cab.
11. Check the lifting frame for correct operation and inspect it for
leaks.
