Structure and function
54 KE/KX/KG (RIGID) BAH0089-7 02.2020

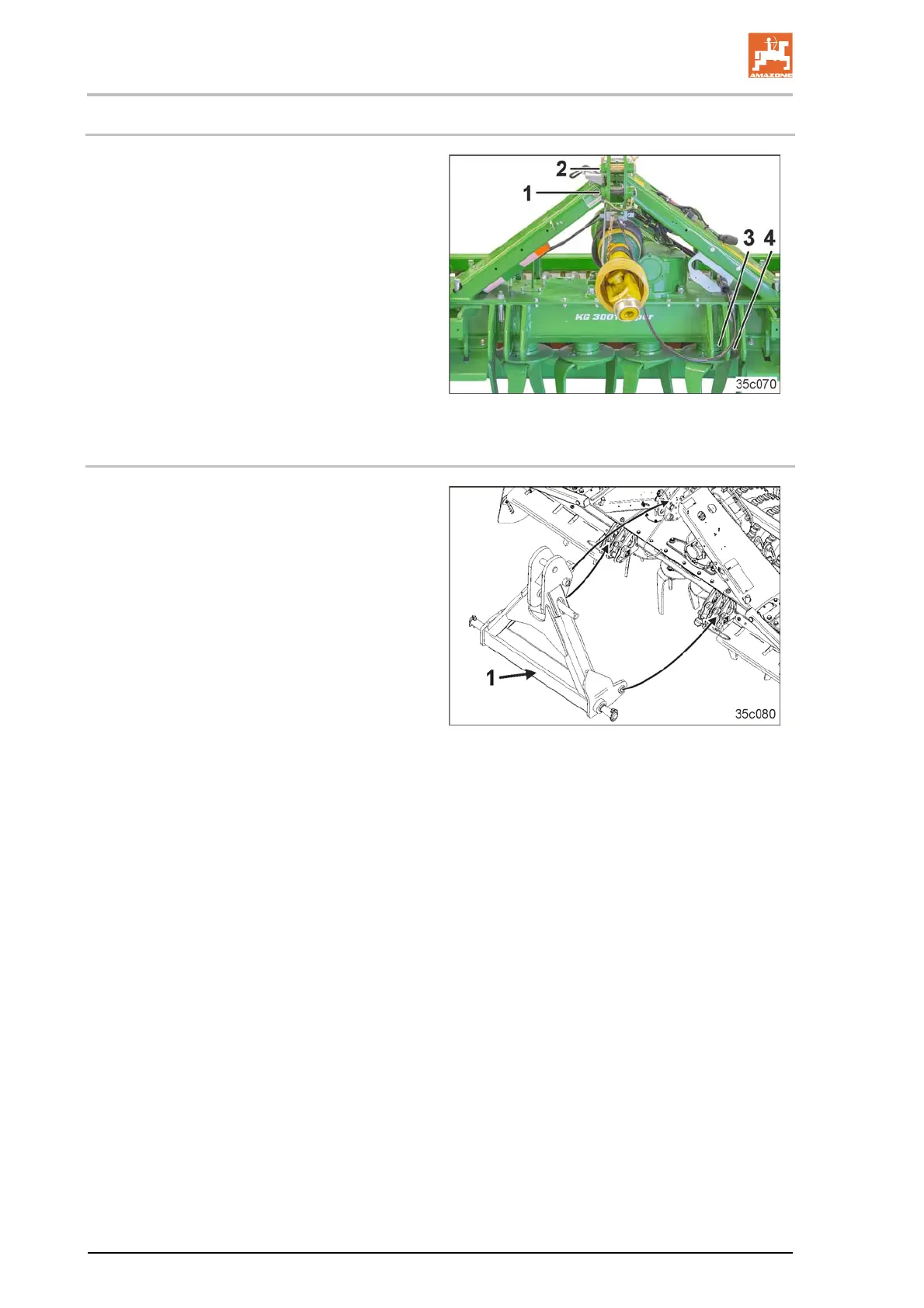

5.2.2 KX / KG Special / Super rotary cultivator
Fig. 18/…
(1) Top link pin, Ø 25 mm, Cat. 2
(2) Top link pin, Ø 31.7 mm, Cat. 3
(3) Lower link pin, Ø 28 mm, Cat. 2
(4) Lower link pin, Ø 36.6 mm, Cat. 3
The ball sleeves are tractor accessories
Fig. 18
5.2.3 Adapter frame Cat. 4 (optional)
The adapter frame enables use with Cat. 4. lifting
gear. A special universal joint shaft is required
for the drive.
Fig. 19/…
1. Cat. 4 adapter frame (only KX, KG)
Fig. 19
