Initial operation
90 KE/KX/KG (RIGID) BAH0089-7 02.2020
6.1.1.1 Data required for the calculation (attached implement)

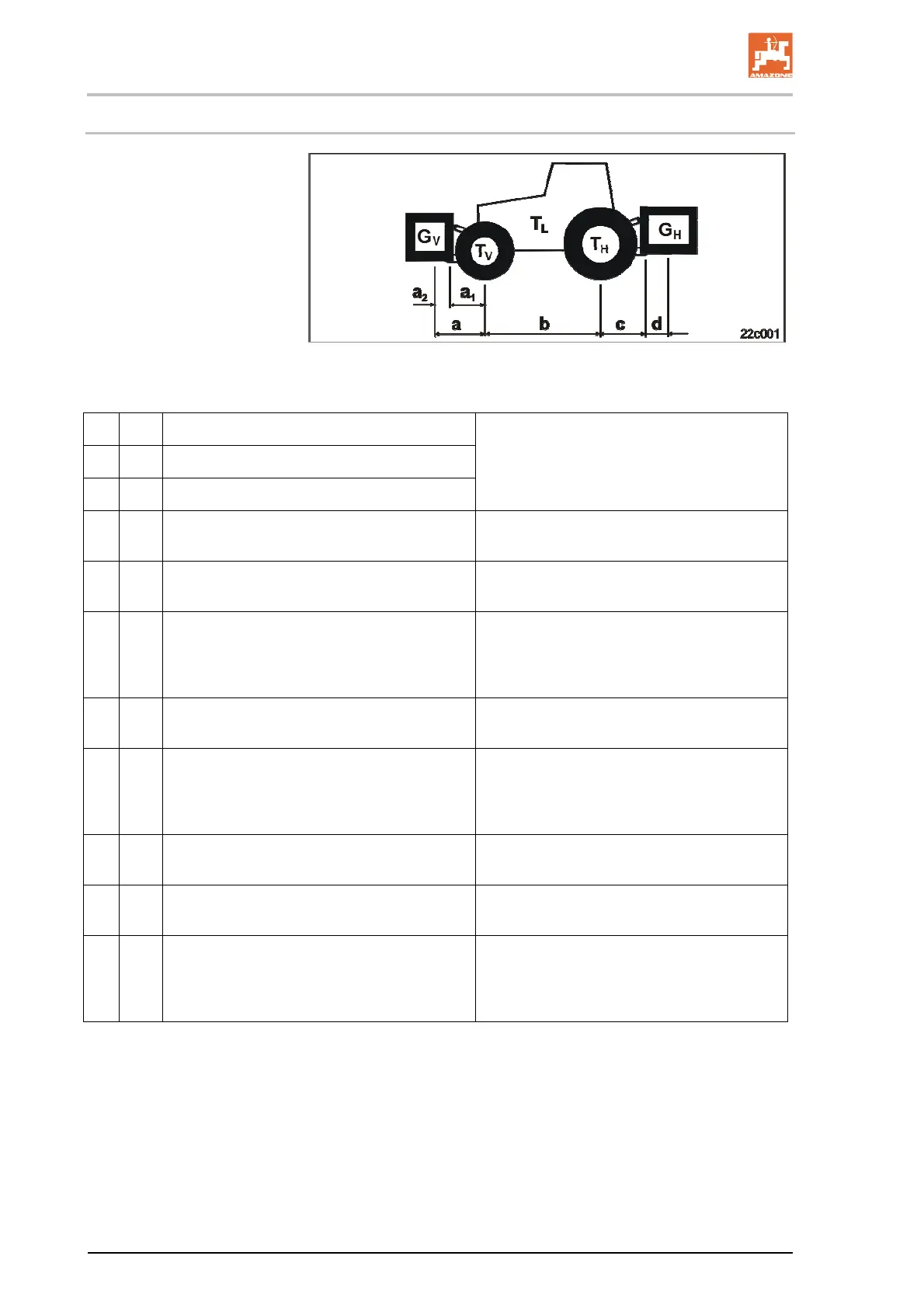

Fig. 78
T
L
KG Tractor tare weight
See tractor operating manual or vehicle
documentation
T
V
KG Front axle load of the empty tractor
T
H
KG Rear axle load of the empty tractor
G
H
KG Total weight of rear-mounted implement or
rear ballast
See the section "Technical Data" or rear
ballast
G
V
KG Total weight of front-mounted implement or
front ballast
See technical data for front-mounted imple-
ment or front ballast
a [m] Distance between the centre of gravity of the
front implement mounting or the front weight
and the centre of the front axle (total a1 +
a2)
See technical data of tractor and front im-
plement mounting or front weight or meas-
urement
a
1
[m] Distance from the centre of the front axle to
the centre of the lower link connection
See tractor operating manual or measure-
ment
a
2
[m] Distance between the centre of the lower
link connection point and the centre of gravi-
ty of the front-mounted implement or front
ballast (centre of gravity distance)
See technical data of front implement
mounting or front weight or measurement
b [m] Tractor wheel base See tractor operating manual or vehicle
documents or measurement
c [m] Distance between the centre of the rear axle
and the centre of the lower link connection
See tractor operating manual or vehicle
documents or measurement
d [m] Distance between the centre of the lower
link connection point and the centre of gravi-
ty of the rear-mounted implement or rear
ballast (centre of gravity distance)
See section "Technical Data"
