Structure and function
KE/KX/KG (RIGID) BAH0089-7 02.2020 85
5.17 Track markers (optional)
The hydraulically-actuated track markers dig into
the ground alternately on the left and the right of
the implement.
Here, the active track marker (Fig. 76/1) creates
a mark. This mark serves the tractor driver as an
orientation aid.
The tractor driver drives over the centre of the
mark.
The track markers are attached to the soil tillage
implement.

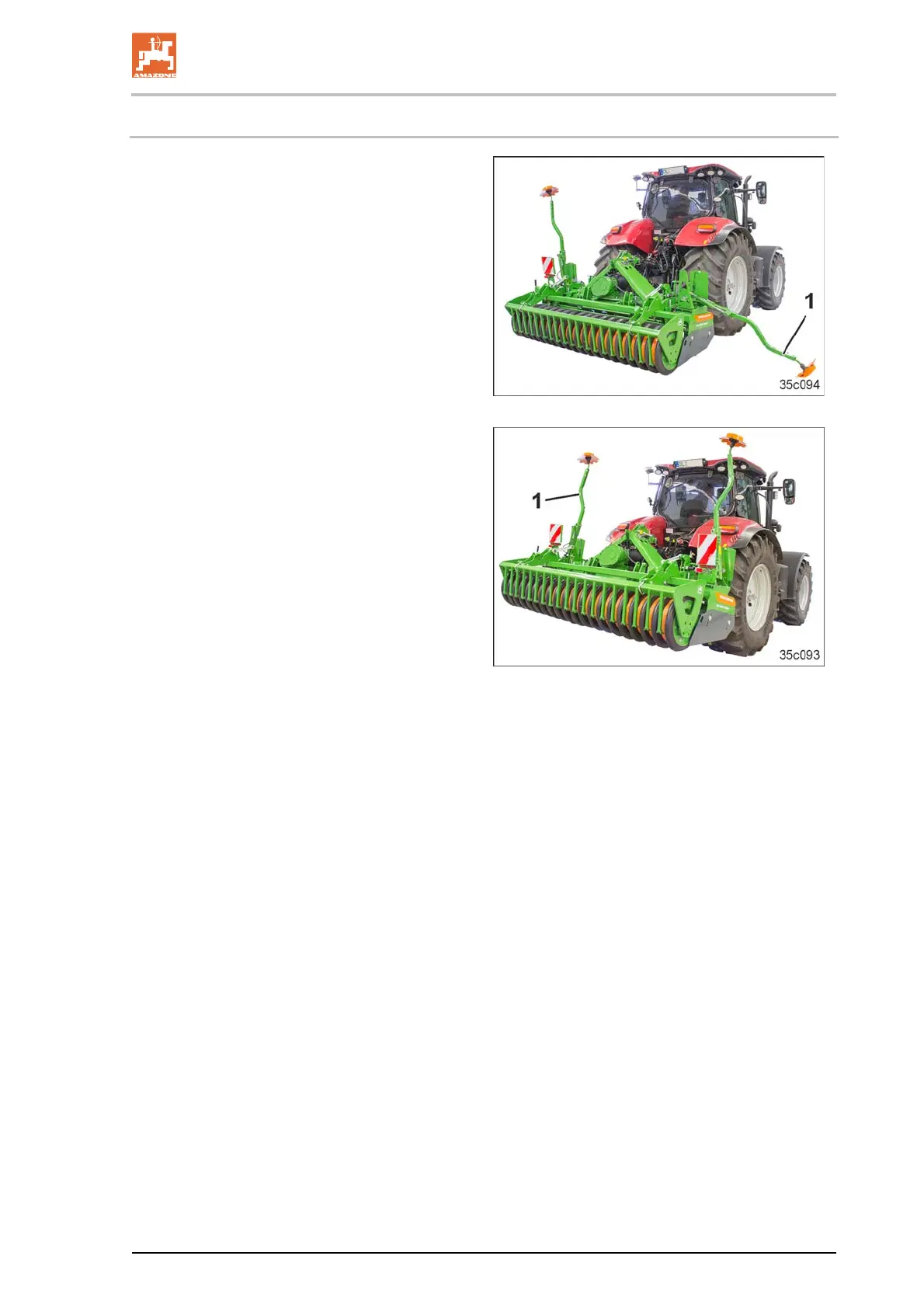

Fig. 76
Both track markers (Fig. 77/1) must be raised
when turning at the end of the field.
Both track markers (Fig. 77/1) must be raised for
transporting the implement. Each track marker is
secured with a bar.
Fig. 77
