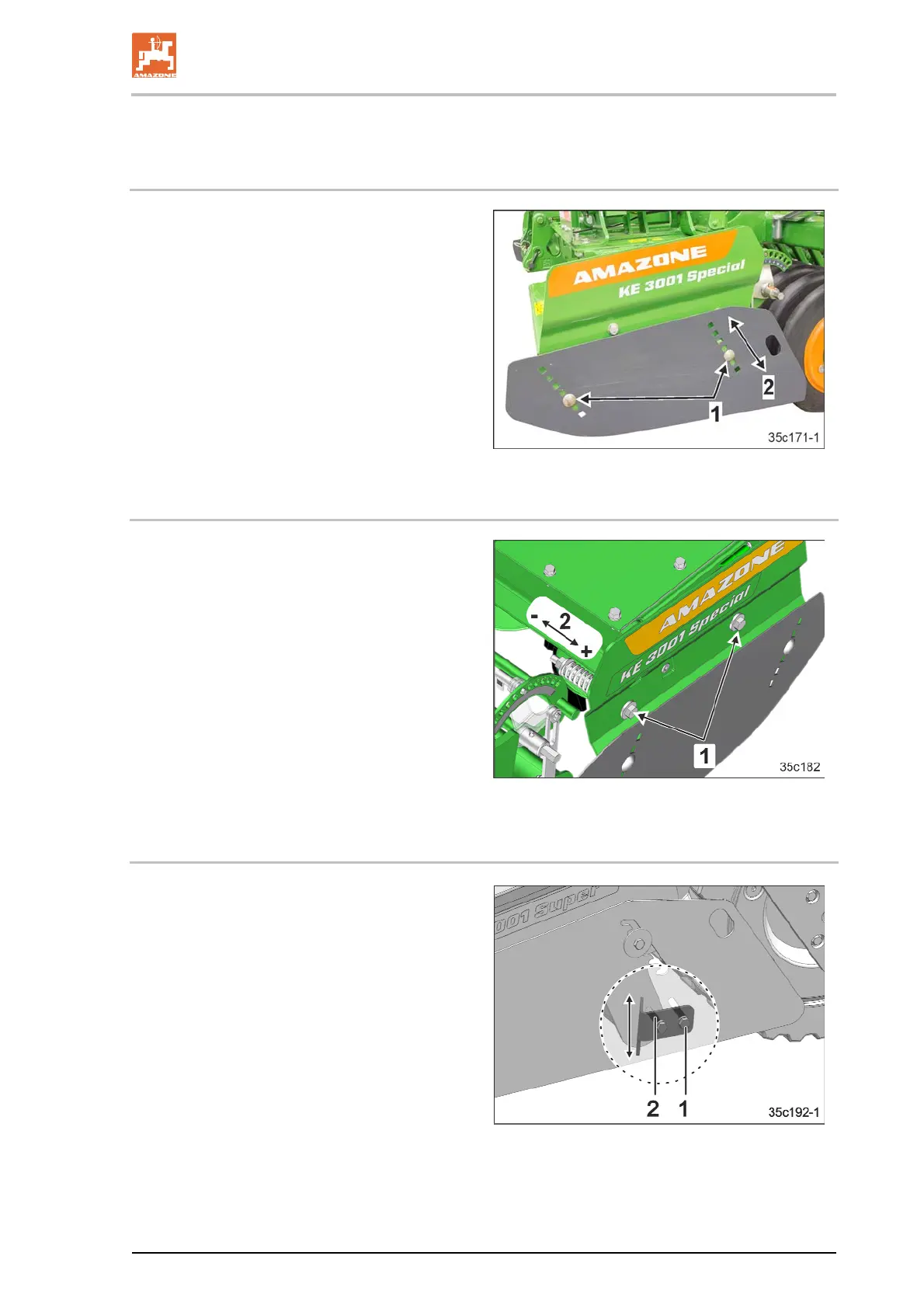

Settings
KE/KX/KG (RIGID) BAH0089-7 02.2020 117
8.2.2 Side plate KE Special
8.2.2.1 Vertical adjustment
1. Unscrew and remove the bolts (Fig. 111/1)
2. Move the side plates to the desired position
(Fig. 111/2)
3. Insert the bolts and tighten
4. After 5 hours of operation, check the bolt
connection for tight fit.
Fig. 111
8.2.2.2 Adjusting the spring tension
The adjustable tension of the spring is adjusted
at the factory for light and medium soils.
By turning the two lock nuts (Fig. 112/2), the
tension of the spring is
increased on heavy soils (Fig. 112/2+),
reduced for incorporating straw (Fig. 112/2-
).
Fig. 112
8.3 Adjusting the soil guiding angle bracket (optional)
1. Loosen the bolts (Fig. 113/1).
2. Move the soil guiding angle bracket (Fig.
113/2) to the desired position.
3. Tighten the bolts.
4. After 5 hours of operation, check the bolt
connection for tight fit.
Fig. 113
