114 KE/KX/KG (RIGID) BAH0089-7 02.2020
8.1 Adjusting the working depth
The soil tillage implement is supported by the roller. This ensures that
the working depth of the soil tillage implement is precisely maintained.
8.1.1 Mechanical adjustment
1. Lift the implement just enough for the depth
setting pins (Fig. 104/2) to clear the carrying
arms (Fig. 104/1).
2. Switch off the tractor PTO shaft, apply the
tractor parking brake, switch the tractor
engine off and remove the ignition key.
Wait until the tool carriers have come to a
complete stop.
3. Insert the depth setting pins in the same
square hole in the two outer segments. A
finer graduation of the working depth can be
achieved by turning the depth setting pin in
the same square hole. (Fig. 105/3)

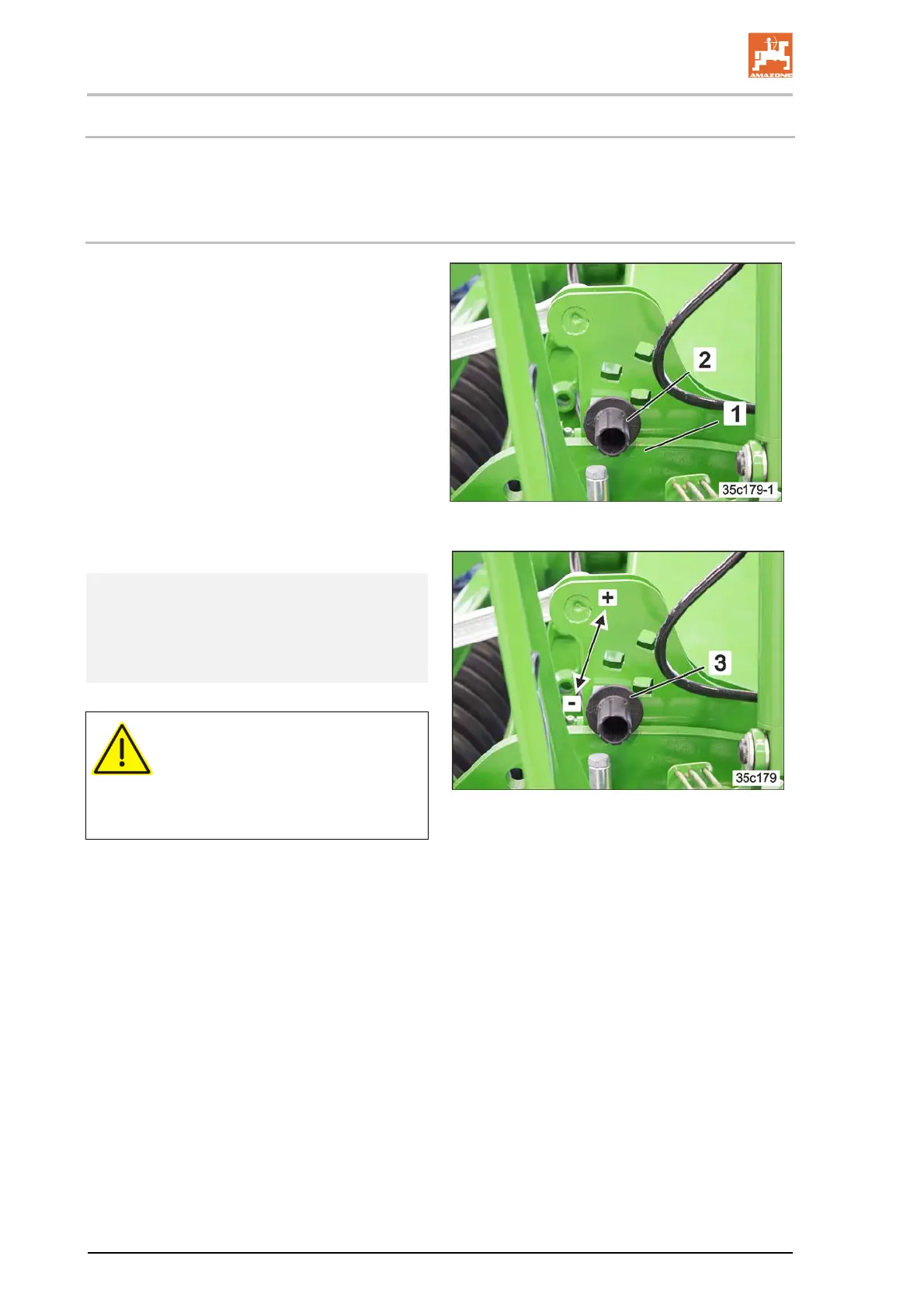

Fig. 104
Fig. 105
The working depth increases
the higher the position of the depth set-
ting pin (Fig. 105/3+) in the adjuster
segment
DANGER
Touch the depth setting pin by the
handle only.
Never reach between the carrying arm
and the depth setting pins.
