Amazone KX Series User Manual

Cleaning, maintenance and repai
r
148 KE/KX/KG (RIGID) BAH0089-7 02.2020

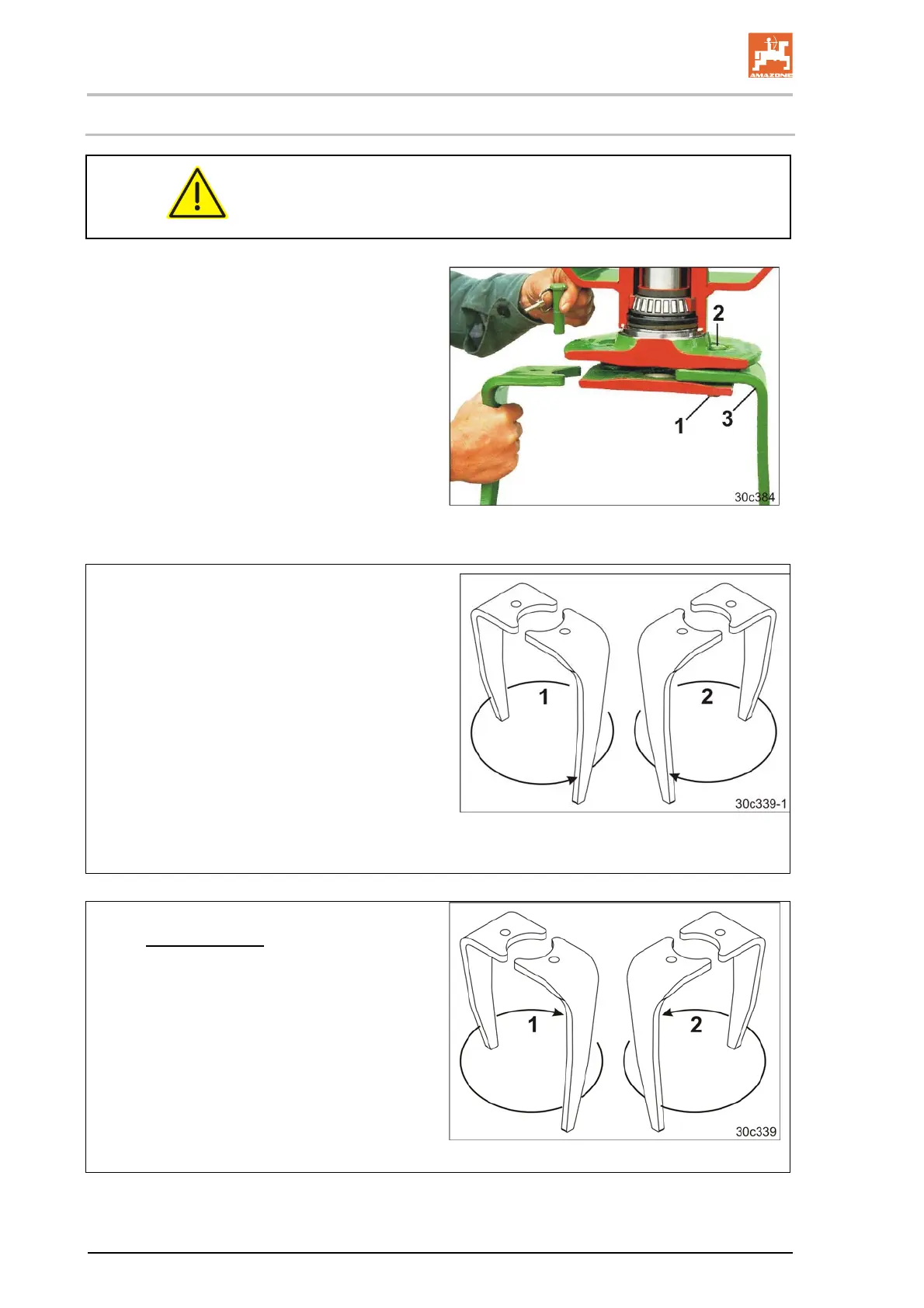

12.3.3 Replacing the tool tines (specialist workshop)
DANGER
Raise the stand-alone machine using a crane and support it
properly.
1. In a specialist workshop, raise the stand-
alone machine with a crane and support it
properly.
2. Remove the linch pin (Fig. 163/1).
3. Remove the pin (Fig. 163/2) from the tool
carrier by striking it in an upwards direction.
4. Replace the tool tines (Fig. 163/3).
5. Fasten the tool tines using the pin and
secure it using the linch pin.
Fig. 163
Direction of rotation
of the rotary harrow tines
The implement is equipped with two varieties of
tool tines (clockwise/anticlockwise).
Tool tines (1),
anticlockwise (see direction of the arrow).
Tool tines (2),
clockwise (see direction of the arrow).
Note:
The leftmost tool carrier, viewed in the direction
of travel, always rotates clockwise.
Fig. 164
Direction of rotation
of the rotary cultivator tines
The implement is equipped with two varieties of
tool tines (clockwise/anticlockwise).
Tool tines (1),
clockwise (see direction of the arrow).
Tool tines (2),
anticlockwise (see direction of the arrow).
Note:
The leftmost tool carrier, viewed in the direction
of travel, always rotates clockwise.
Fig. 165
