12.10 Spur gear trough
No dirt must enter the spur gear trough.
Oil change is not necessary.
12.10.1 Venting

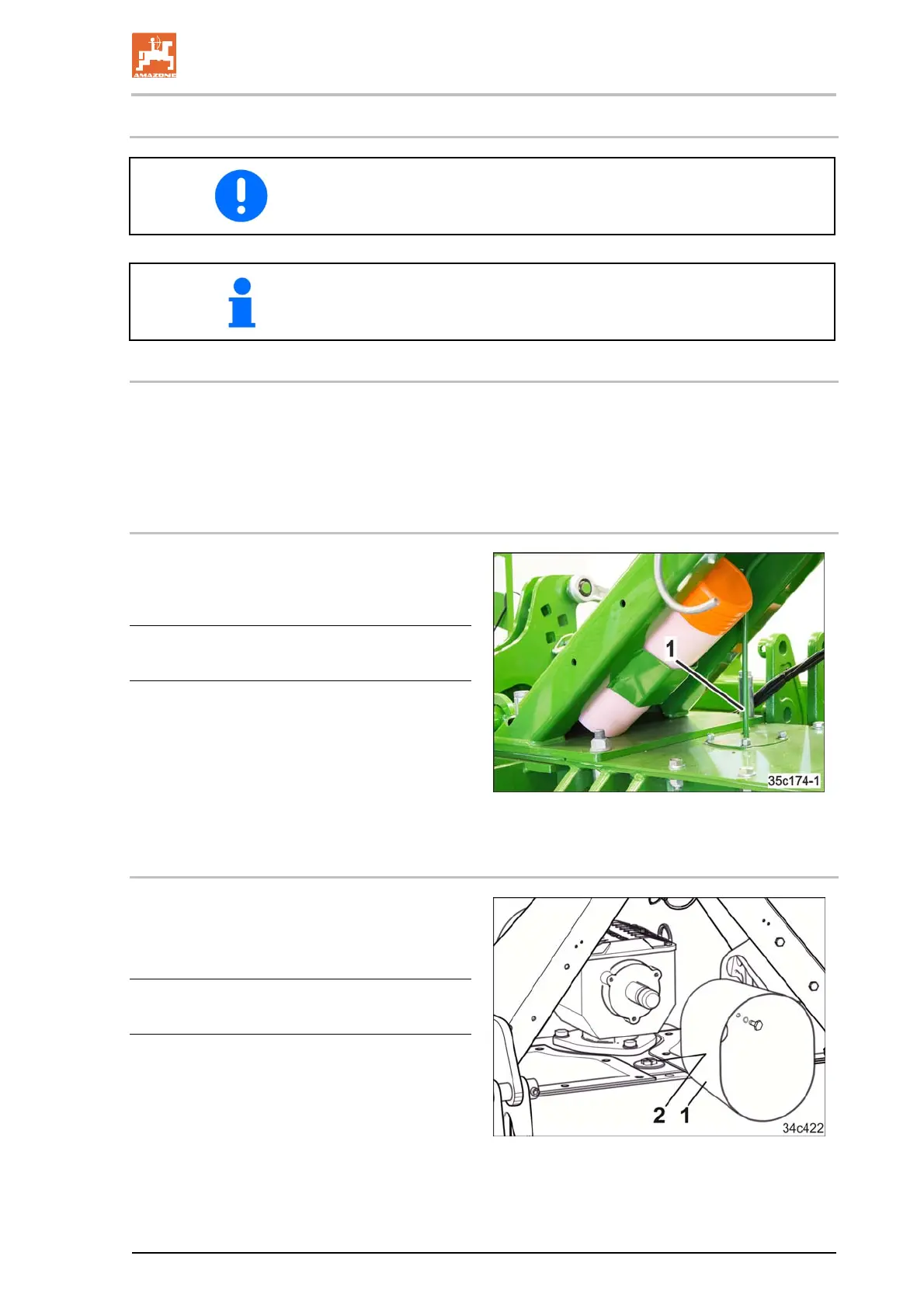

The spur gear trough is equipped with a ventilation pipe (Fig. 181/1).
Ventilation must be ensured to prevent the spur gear trough from
developing leaks.
12.10.2 Checking the oil level (only KG and KX rotary cultivator)
1. Park the implement on a level surface.
2. Open the cover with the ventilation pipe
(Fig. 181/1).
Fig. 181
The spur gears in the spur gear trough must
be halfway covered with transmission fluid.
3. If necessary, top up the transmission fluid.
For oil type and fill quantity,
see the section "Technical Data".
12.10.3 Checking the oil level (only KE rotary harrow)
1. Park the implement on a level surface.
2. Screw off the protective cap (Fig. 182/1).
3. Open the
plug seals (Fig. 182/2).
Fig. 182
The spur gears in the spur gear trough must
be halfway covered with transmission fluid.
4. If necessary, top up the transmission fluid.
For oil type and fill quantity,
see the section "Technical Data".
