Coupling and uncoupling the implement
106 KE/KX/KG (RIGID) BAH0089-7 02.2020
7.3 Coupling the mounted seed drill
DANGER
Risk of injury from the movement of the lifting frame.
Maintain a minimum distance of 10.0 m from the implement combina-
tion.
When raising the seed drill, check whether parts of the lifting frame
collide with the tractor rear window.
7.3.1 Attaching the seed drill with the coupling parts

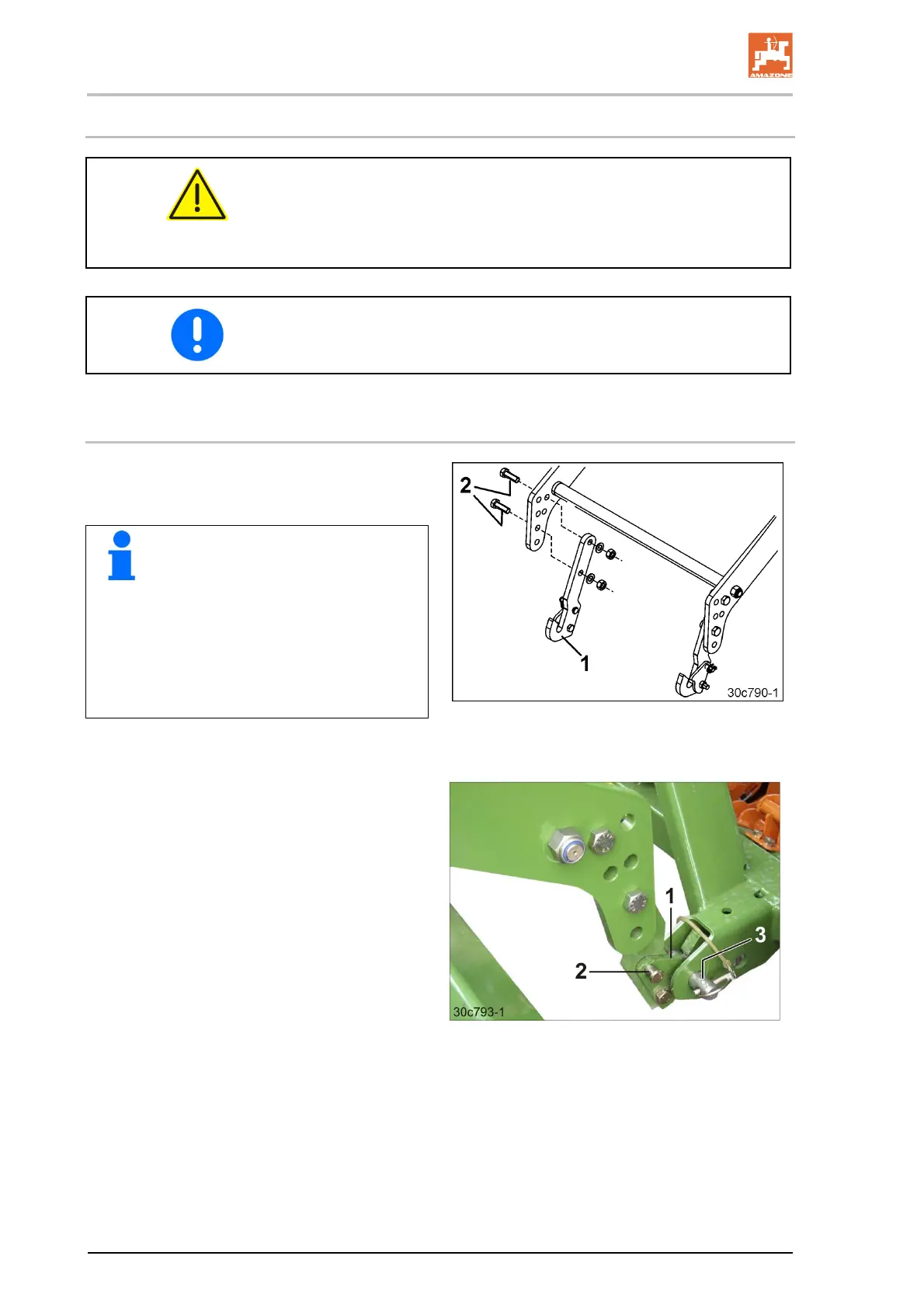

1. Fasten the catch hooks (Fig. 89/1) to the
lifting frame using two bolts for each one
(Fig. 89/2).
Fig. 89
Screw the catch hooks to the coupling
parts so that the seed drill
 can be connected without prob-
lem
 runs closely behind the roller.
The closer the seed drill is attached to
the roller, the lower the lifting power
required.
2. Release the locking straps (Fig. 90/1).
2.1 Remove the pins (Fig. 90/2).
3. Instruct persons to stay out of the danger
area between the soil tillage implement and
the seed drill.
4. Drive the soil tillage implement up to the
seed drill.
5. Engage the lower pivot points (Fig. 90/3) of
the seed drill using the catch hooks.
6. Switch off the tractor PTO shaft, apply the
tractor parking brake, switch the tractor
engine off and remove the ignition spanner.
Fig. 90
