Settings
KE/KX/KG (RIGID) BAH0089-7 02.2020 119
Vertical adjustment

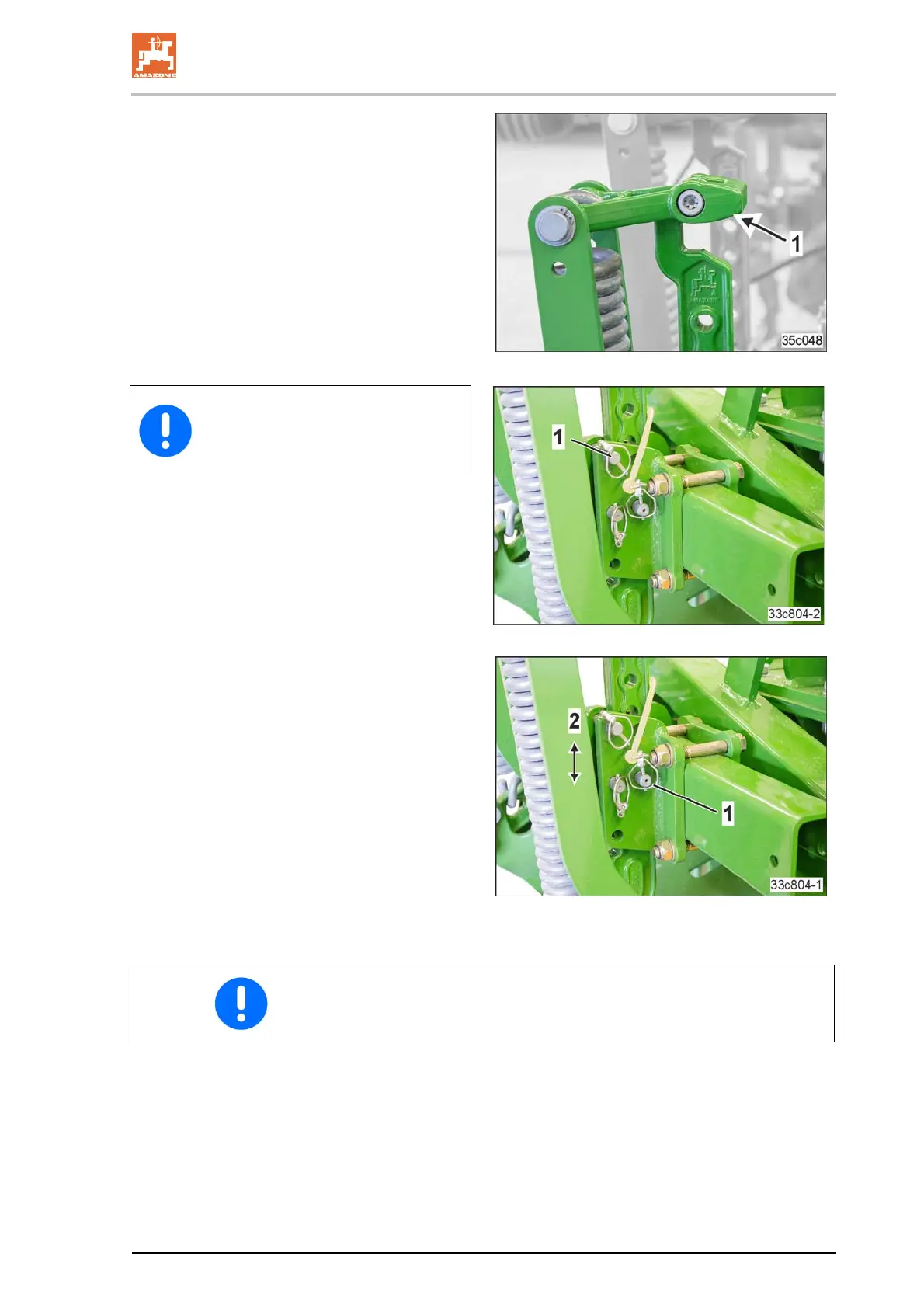

The recessed grip (Fig. 115/1) serves to safely
adjust the working depth.
Fig. 115
The top locking pin (Fig. 116/1) may
not be removed.
Fig. 116
Adjusting the working depth of the wheel mark
eradicator:
1. Remove the linch pin (Fig. 117/1)
2. Grab the wheel mark eradication by the
recessed grip (Fig. 115/1)
3. Remove the locking pins
4. Using the recessed grip, move the wheel
mark eradicator to the desired position and
insert the locking pin.
The maximum working depth is 150 mm!
5. Secure the locking pin with a linch pin (Fig.
117/1)
Fig. 117
Check the work results after each adjustment.
