2.3.1 Display Features

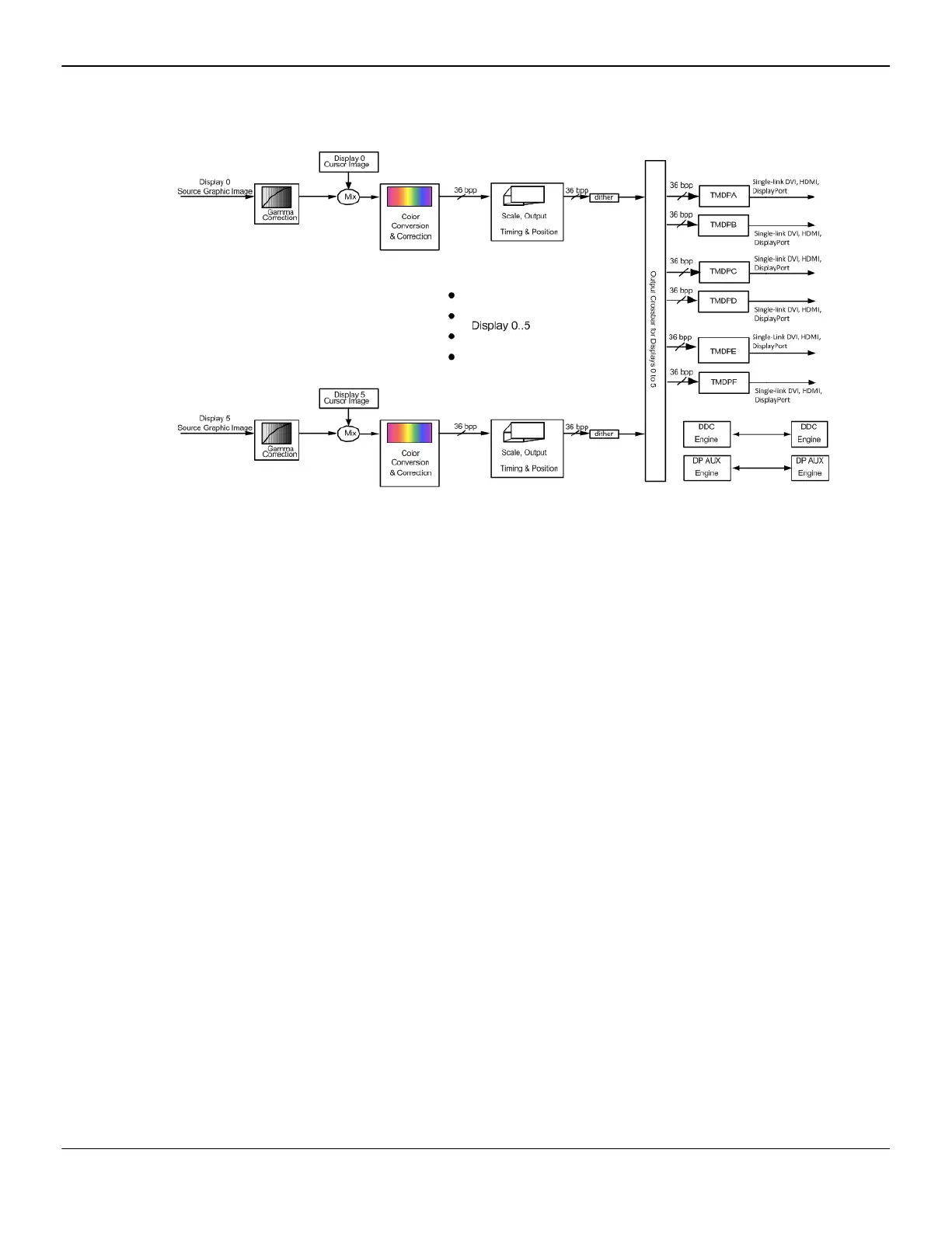

Figure 2–1 "Vega 10" Display Top-level Data-flow Diagram
• Up to six independent display controllers that support up to true 36-bpp (bits
per pixel) throughout the display pipe.
• Support for each display output type up to the following display timings:
• DisplayPort 1.4 (HBR3):
∘ Up to three 5120 × 2880 @ 60 Hz
∘ Up to two 3840 × 2160 @ 120 Hz
∘ Up to six 3840 × 2160 @ 60 Hz
∘ One 7680 × 4320 @ 60 Hz using two DisplayPort cables
• HDMI™ 2.0b (6 Gbit/s):
∘ Up to six 3840 × 2160 @ 60 Hz or four 4096 × 2160 @ 60 Hz
• Dual-link DVI:
∘ Up to 2560 × 1600 @ 60 Hz or 1920 × 1200 @ 60 Hz
• Single-link DVI:
∘ Up to six 1920 × 1200 @ 60 Hz
• Advanced video capabilities, including high-fidelity gamma, color correction,
and scaling for High Dynamic Range (HDR) or Standard Dynamic Range (SDR)
• A high-precision color pipe with the support of sRGB, Rec. 709 and Rec. 2020
color spaces with up to 12 bits/component
• HDR 10 support with HDMI 2.0b and DP 1.4 HDR scaling.
• Each display pipe includes a high-quality scaler for upscaling lower resolution
desktop modes to available display resolutions or underscanning for the HDMI
output (if needed):
• All desktop sources up to 4096 pixels/line may be upscaled
• Desktops up to 1920 wide may be underscanned for HDMI
Functional Overview 7
