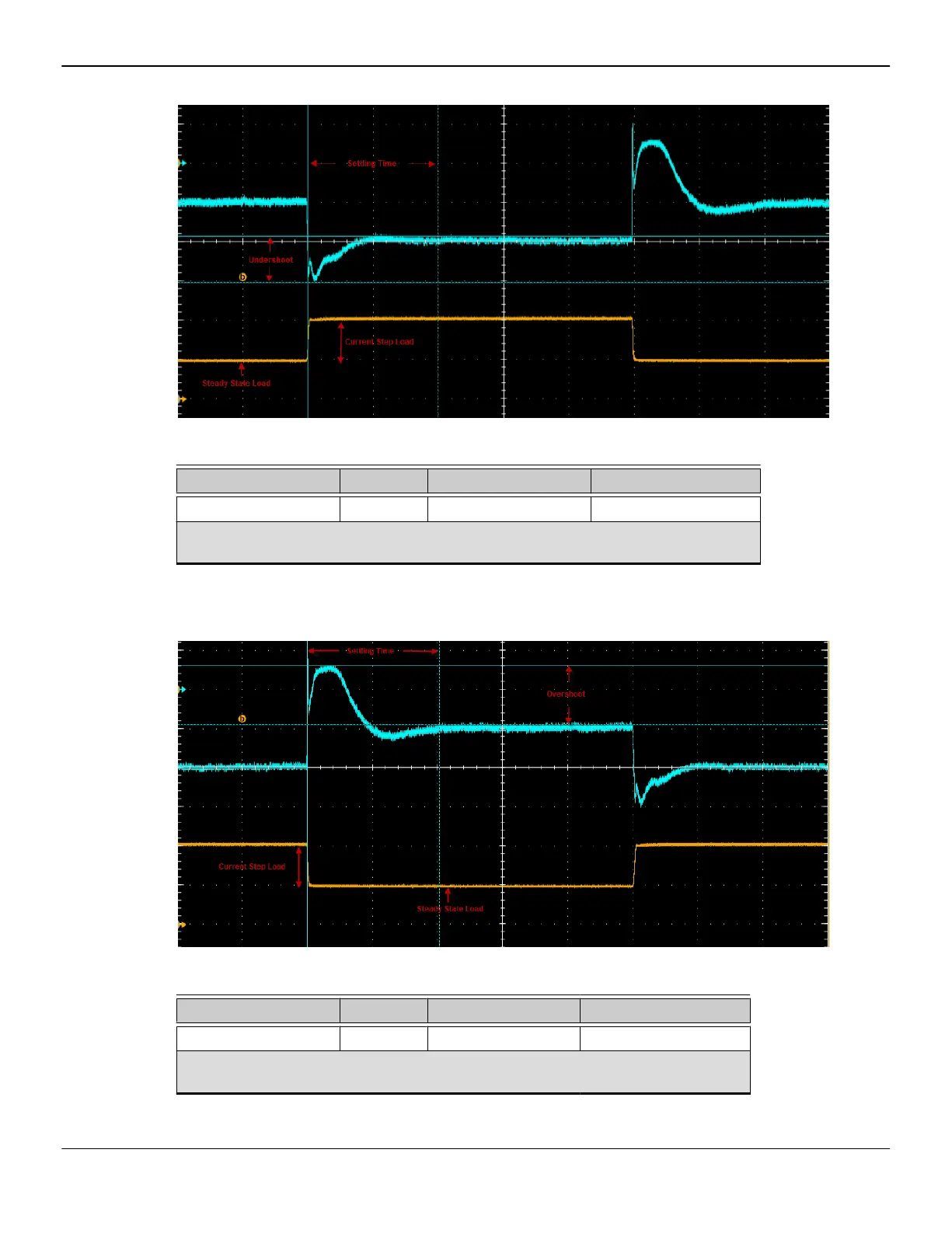

Figure 5–1 Load Insertion Legend
Table 5–3 Load Insertion Behavior
Current Step Load (A) di/dt (A/us) Max Undershoot (mV) Max Settling Time (us)
320
1
1037 60 20
Note: If using AMD provided SDLE for the transient study:
1. Step load is applied in addition to a 300 A steady state load.
Figure 5–2 Load Release Legend
Table 5–4 Load Release Behavior
Current Step Load (A) di/dt (A/us) Max Overshoot (mV) Max Settling Time (us)
320
1
-3656 76 21
Note: If using AMD provided SDLE for the transient study:
1. Step load is applied in addition to a 300 A steady state load.
