AMETEK CTS OCS 500 N6 series
Manual for Operation V 5.24 13 / 80

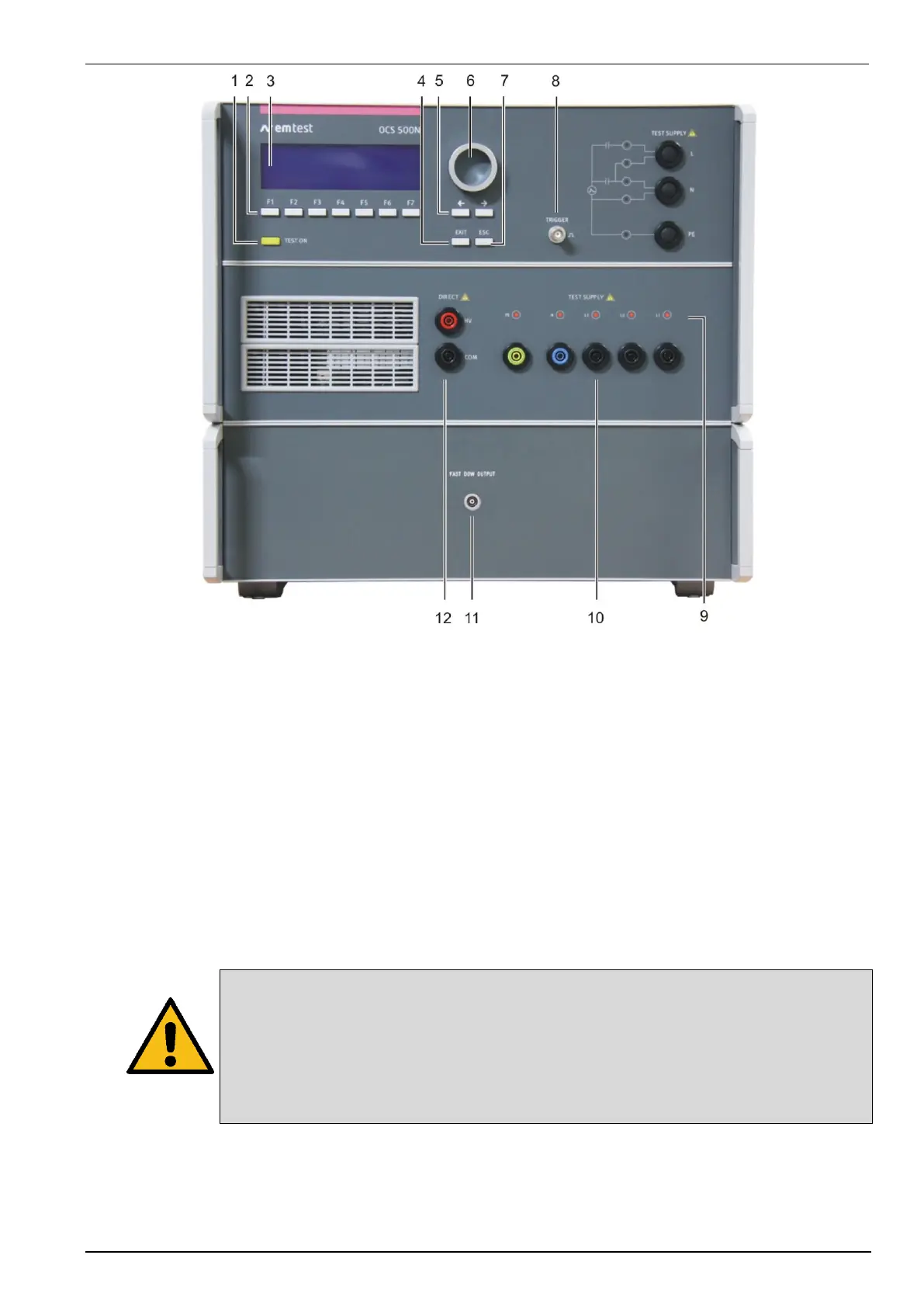

1 "Test On"
2 Function keys "F1..F7
3 Display
4 Exit
5 Cursor keys "" and ""
6 Knob (Inc. / Dec)
7 Escape
8 CRO trigger output 5V
9 LED mains coupling 1/3 ph.
10 EUT test supply 1ph/3ph
11 Fast damped output for I/O lines
12 Direct output HV COM
9 LED mains coupling
The LED Indicate the actual coupling mode for the 1-phase or 3-phase.
10 EUT test supply
For single- or three-phase EUT the coupling/decoupling network is part of the generator. The EUT is powered via the safety
banana plugs at the front panel of the simulator
11 Fast damped output for I/O lines
Coaxial output plug for the fast damped oscillatory wave to a capacitive coupling clamp for testing I/O lines.
12 Direct HV and COM output
The HV and COM output are the designed for an external using of the impulse. This output is floating and is
used for external coupling/decoupling networks or magnetic field antenna.
Attention
The direct HV and COM output of the generator is located at the front panel of the instrument. It
is not allowed to connect these outputs to any other coupling/decoupling network than
manufactured by AMETEK CTS, e.g. the types CNV or CNI.
Before to connect any external networks to this output the operator must contact the
manufacturer. Any damages due to this matter are not covered by warranty.
The direct pulse output shall also not be used to connect the generator directly to any power
conducting lines.
