Manual for Operation V 5.24 71 / 80
10.5.
Verification Damped Oscillatory Wave 100 / 1000 kHz magnetic field
10.5.1.
Verification Parameter
IEC 61000-4-10 (to MS 100 antenna)
Current measurement
Current 10.0A ±10%
Current 30.0A ±10%
Current 100.0A ±10%
H-Field measurement
Settings: 100A/m Antenna factor= 0.9
Current 111.1A ±10%
Oscillating frequency 100, 1000 kHz ±10%

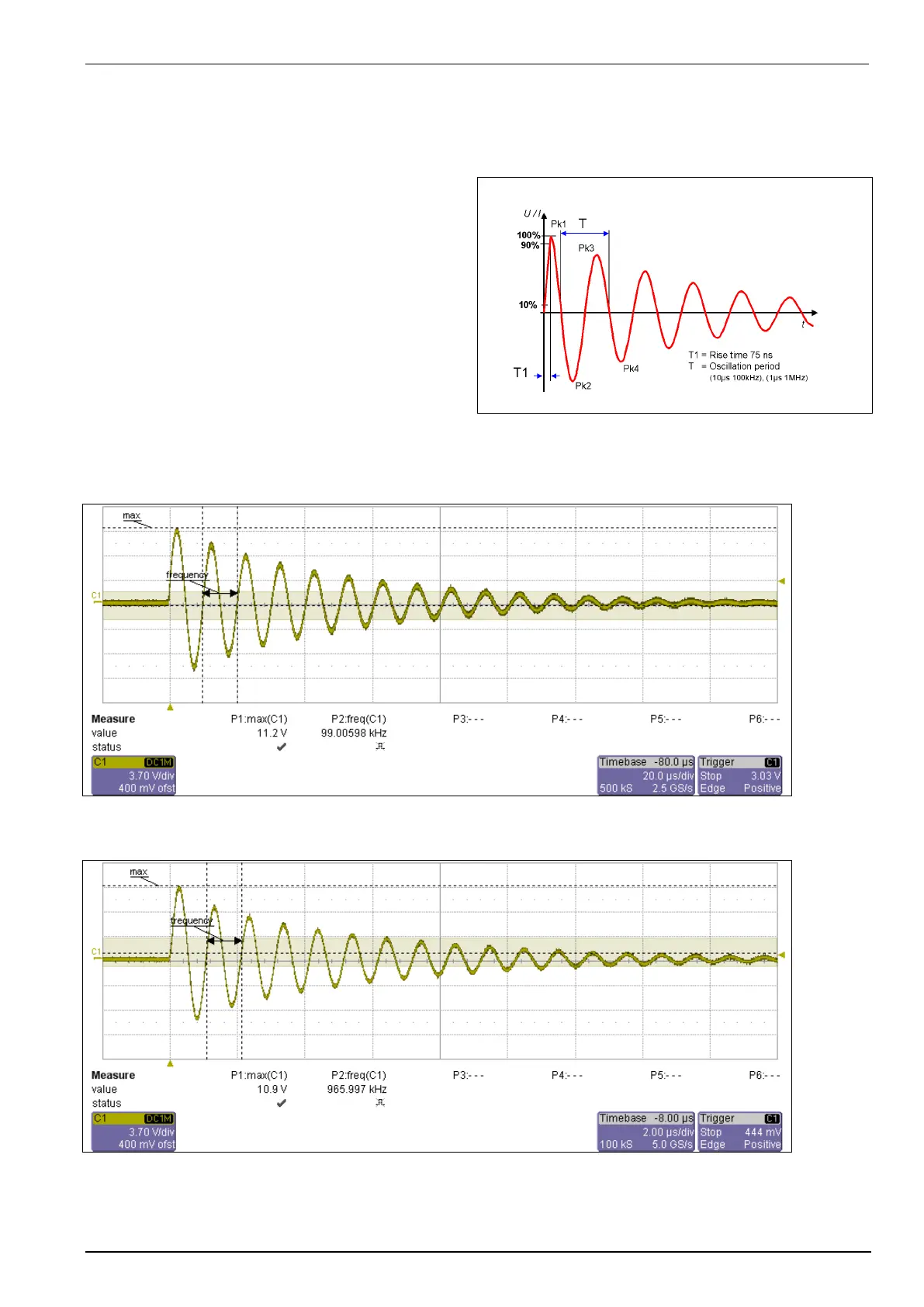

Typical pulses, measured with a calibrated equipment
U set : +100A 100kHz Antenna factor = 0.9
U set : +100A 1000kHz Antenna factor = 0.9
