AMETEK CTS OCS 500 N6 series
Manual for Operation V 5.24 51 / 80

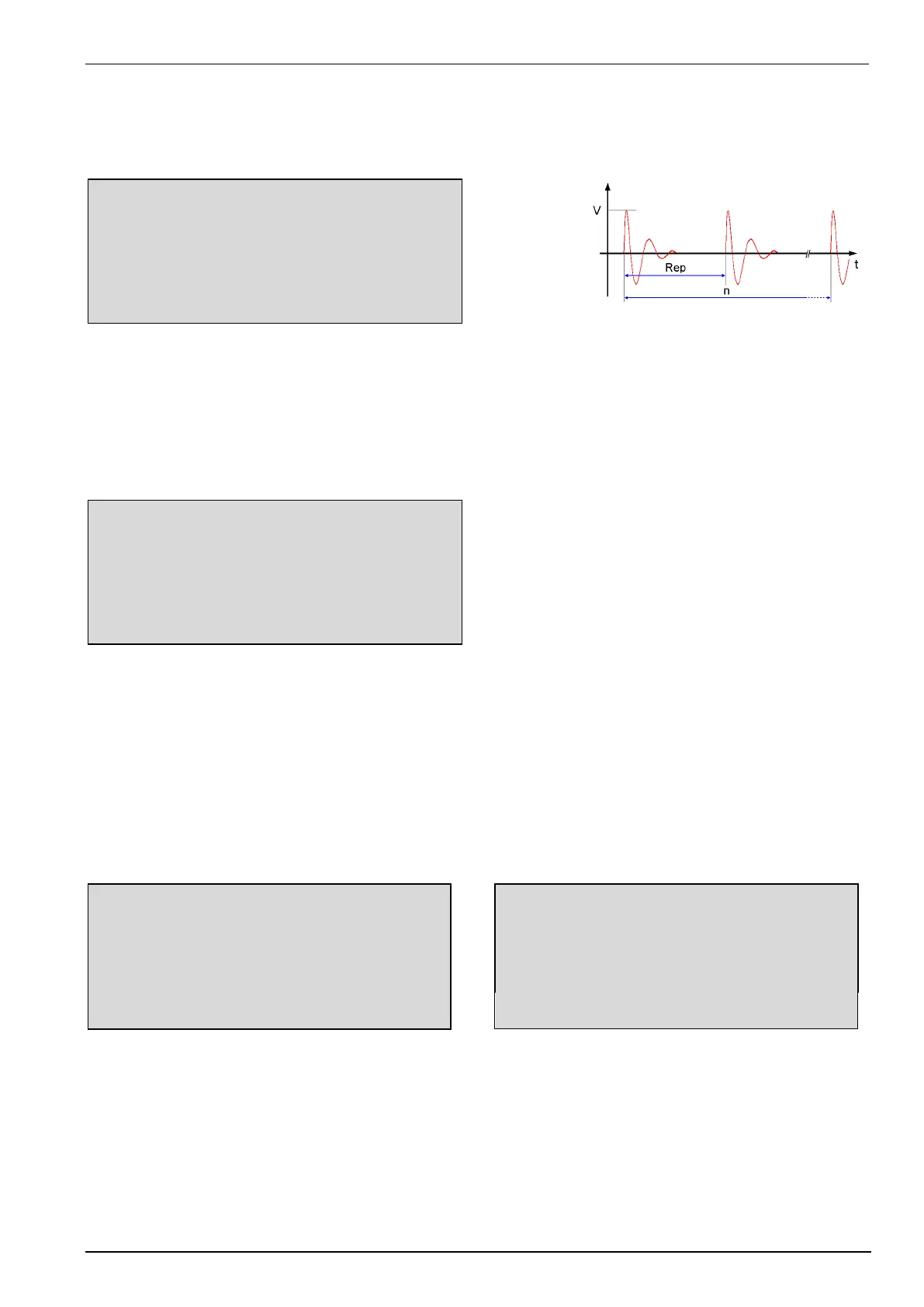

Quick Start
Easy and very fast operation of all standard functions of the equipment. The latest simulator settings are stored
automatically and will be recalled when Quick Start is next selected.
Page 2
tri = Auto n = 1001 pulses
Press START and the test routines begin to work.
Press CHANGE and the actual parameters can be changed.
All function keys except F2 (manual trigger) can Stop the test routine.
Page 3 (Start)
tri = Auto n = 1001 pulses
VSet = 2000V U = + 2000V COUNTER
The user can select the parameter with the related function key and can change the value with the knob. The
cursor allows the user to define the value of the digit which should be changed (fast or slow change).
Pressing the ESC button will bring the user back to the previous level from where the test can be restarted with
new levels. After restart the actual test time is displayed. All functions keys except F2 (MAN TRIGGER) can stop
the test routine. The latest setting will be displayed.
Any pressing of a function key will indicate the functions START, CHANGE or CONTINUE. F3 will continue the
same test routine. Also the test time will continue running. If the user selects at first START or CHANGE the test
will be stopped completely.
Page 3 (Change)
Repetition tr : 1s - 999s
Angle A : 0grd - 360grd / asyn.
Events n : 1 - 30000 / Endless
Coupling cpl : L / N / PE
250 12 Ohm 0 + L-PE 2 1 / 2
To Next Page
