AMETEK CTS OCS 500 N6 series
Manual for Operation V 5.24 38 / 80
6.2.2.
Coupling to Signal- and Datalines
For coupling of Ringwave or damped waves to signal- and data lines special coupling network as per IEC 61000-4-
12 / -18 are available. The CND uses special coupling capacitors (CNV 504N1 for four lines).
For many applications special coupling networks are necessary for such kind of test.

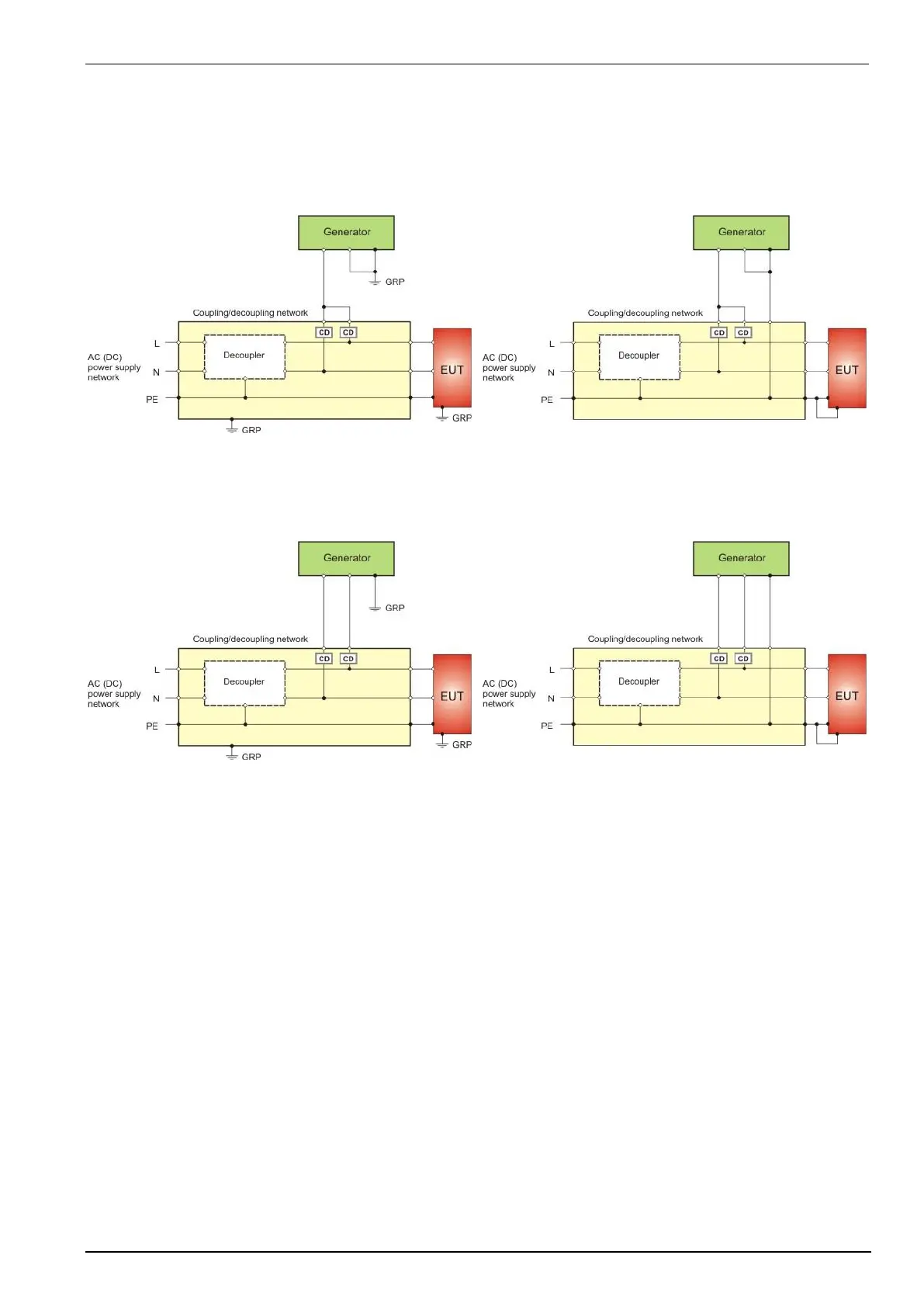

Test setup for Line to ground test
IEC 61000-4-18 Ed1 figure 7a
Setup implemented with the ground reference plane
IEC 61000-4-18 Ed1 figure 7b
Setup implemented with dedicated earth connection
Test setup for Line to Line test
IEC 61000-4-18 Ed1 figure 11a
Setup implemented with the ground reference plane
IEC 61000-4-18 Ed1 figure 11b
Setup implemented with dedicated earth connection
