8.2.
Ringwave and damped oscillatory pulse generation

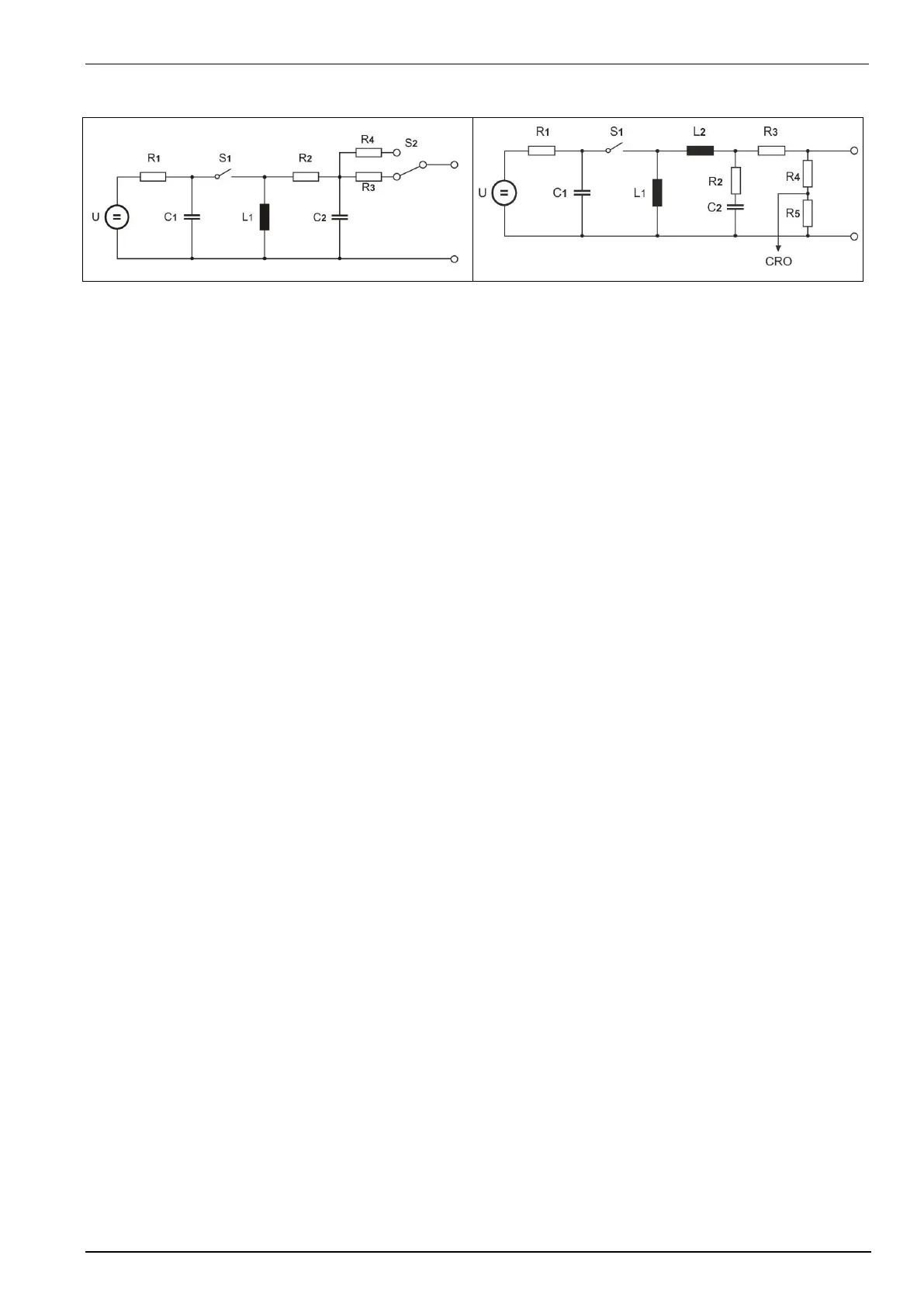

Block diagram Ringwave Generator
Block diagram Damped oscillatory Wave Generator
U
High voltage source (Surge)
R
2
Filter resistor
S
2
Output impedance selector
R
1
Charging resistor
C
2
Filter capacitor
C
3
Coupling capacitor
C
1
Energy storage capacitor
R
3
12 resistor
L
2
Filter inductance
S
1
High voltage switch
R
4
30 resistor
R
5
Source resistor
L
1
oscillating circuit coil
Discharge switch:
The discharge switch is a highly reproducible semiconductor switch.
