AMETEK CTS OCS 500 N6 series
Manual for Operation V 5.24 46 / 80

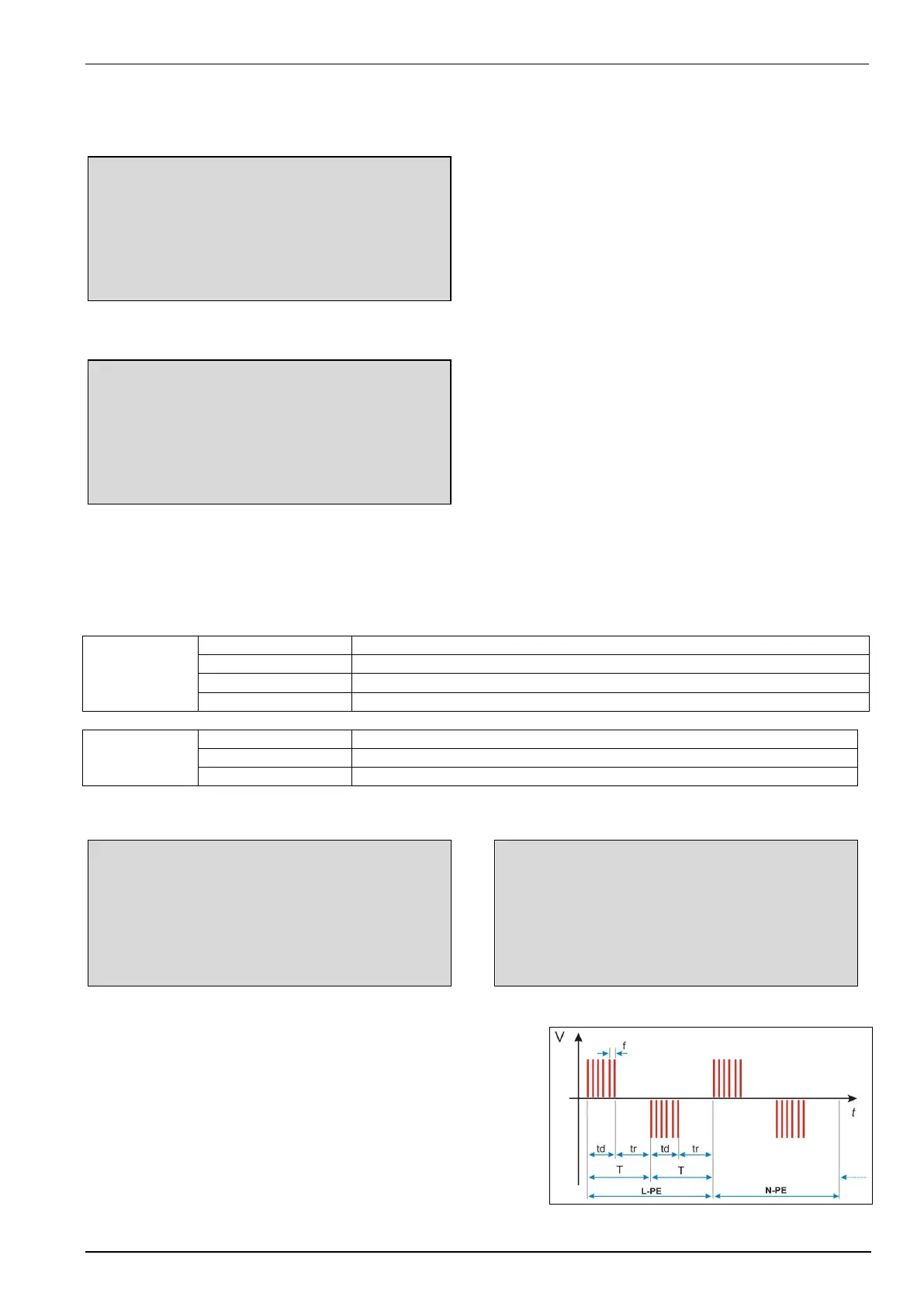

Standard test routines
The user can select preprogrammed standard test routines.
Page 3
Damped Osc. 3MHz IEC 61000-4-18
Damped Osc. 3MHz IEC 61000-4-18
The standard levels for common and differential mode can be changed in the setup menu.
Level test
A selected level will step through all couplings in the selected Mode. The following parameters are used:
5000/s (3MHz) 5000/s (10 MHz) 5000/s (30 MHz)
each coupling positive and negative
Common Mode Lx-PE, N-PE, Lx+N-PE
1 ms – 50 ms Depends on fast module setting 3, 10, 30 MHz
Damped
Page 5 (standard test in stop mode) (Running standard test)
Damped Osc. 3 MHz IEC 61000-4-18 L3
Damped Osc. 3 MHz IEC 61000-4-18 L 3
current coupling 0:00:21
STOP Step complete test time 0:02:21
- The Test time shows the elapsed time per actual test level as
well as the complete time of all triggered test levels within the
running test sequence.
- Pushing the function key F2 STEP will bring you into the next
iteration sequence.
