Ametek OCS 500N6 Series User Manual

AMETEK CTS OCS 500 N6 series
Manual for Operation V 5.24 72 / 80
11.
Delivery Groups
Identical accessory parts are delivered only once if several devices are ordered. The delivered packing list is in
each case valid for the delivery.
11.1.
Basic equipment
• Generator OCS 500N6.x series with including slow damped oscillatory 100kHz and 1MHz and Ringwave
or
Generator OCS 500 N6F.x series including fast damped oscillatory 3, 10, 30 MHz
- Option including slow damped oscillatory 100kHz and 1MHz
- Option including Ringwave
•
• Mains cable
• Mains cable for the EUT supply
• Adapter for power cable
• Manual on USB memory Stick
• Calibration certificate
11.2.
Accessories and options

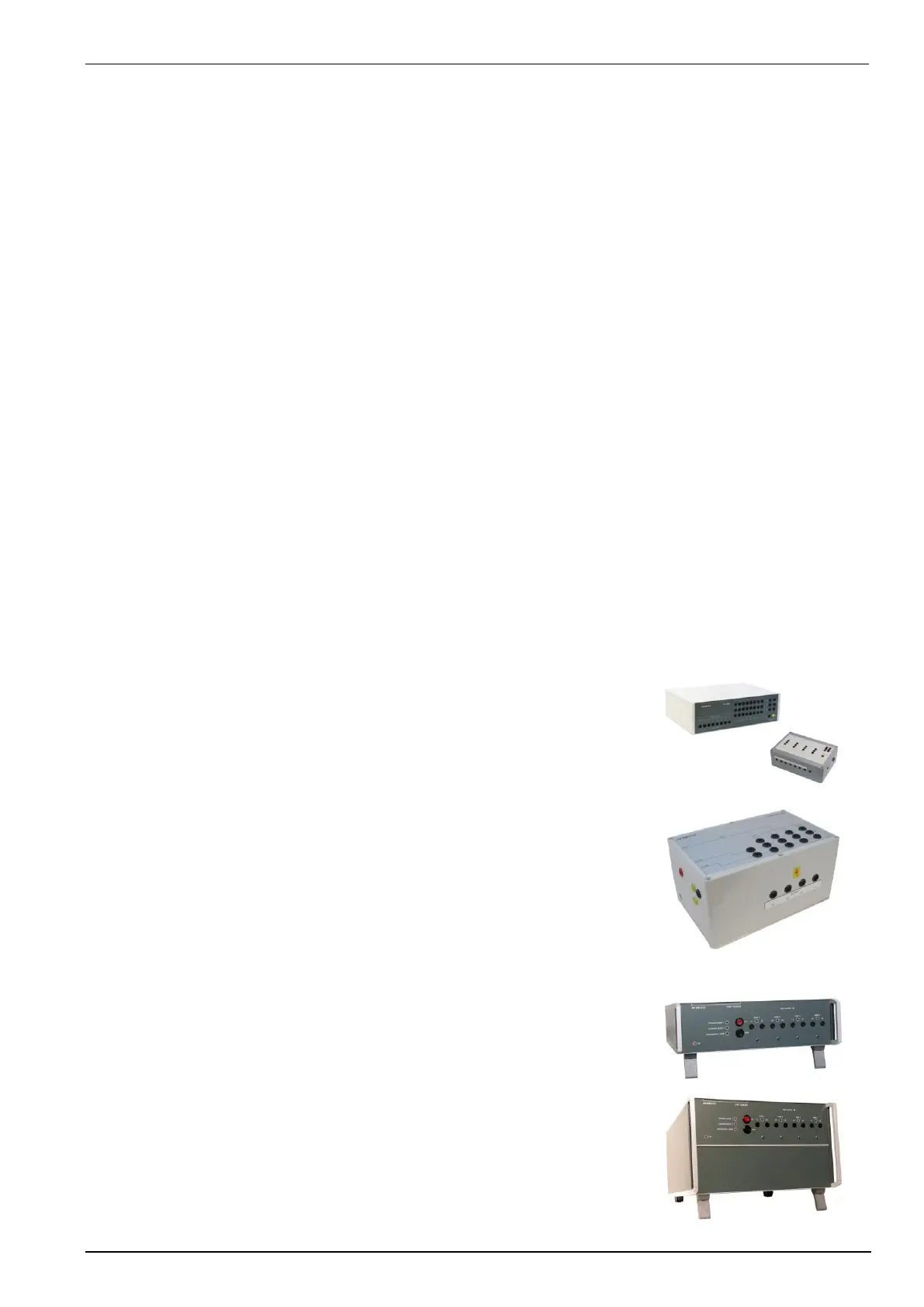

Coupling network for signal and data lines
• CNV 504N / 508N Series
Coupling/decoupling network as per IEC 61000-4-5 and -12
- 4/8 signal/data lines for Surge and Ringwave
- coupling capacitor value 0.5 uF / 40Ω for Surge, 0.5 uF for Ringwave
- decoupling inductor value 20 mH per line
- Rated line voltage 50 V/ 300 V, current 1 A / 5 A
- Generator series: OCS 500M6/N6/N6F
CNV 504N1 CNV 508N1 50V AC/DC / 1 A per line, 4 kV
CNV 504N1.1 CNV 508N1.1 50V AC/DC / 5 A per line, 4 kV
CNV 508N1.2 CNV 508N1.2 300V AC/DC / 1 A per line, 4 kV
CNV 504N1.3 CNV 508N1.3 300V AC/DC / 5 A per line, 4 kV
Other models for 7 kV and 10 kV are available
• CNV 504N5.x
Coupling/decoupling network as per IEC 61000-4-18
- 4 signal/data lines for 100kHz and 1MHz damped oscillatory wave
- coupling capacitor value 0.5uF, R = 100 Ohm
- decoupling inductor value >1.5mH
- Rated line voltage/current 50V/ 300V4A
- Generator series: OCS 500M6/N6/N6F
CNV 504N5.1 50V AC/DC per line
CNV 504N5.3 250V AC/DC per line
• CNV 508N4.x Coupling/decoupling network as per IEC 60255-26
for signal lines (4 signal pairs) 2.5kV
CNV 504N4 250V 4A
CNV 504N4.1 250V 16A
