AMETEK CTS OCS 500 N6 series
Manual for Operation V 5.24 30 / 80
5.4.
General Specifications OCS 500N6.x
DUT Supply
OCS 500 N6.5 N6
built in 1- phase coupling network 250 V 16 A ac 250 V/16 A dc
OCS 500 N6.6 N6.2
built in 1- phase coupling network 250 V 32 A ac 250 V/32 A dc
OCS 500 N6.7 N6.3
built in 3- phase coupling network 3x440 V 16 A ac 250 V/16 A dc
OCS 500 N6.8 N6.4
built in 3- phase coupling network 3x440 V 32 A ac 250 V/32 A dc
OCS 500 N6.17 (for RCCB)
built in 3- phase coupling network 3x440 V 32 A ac 250 V/32 A dc
OCS 500 N6.11
built in 3- phase coupling network 3x690 V 32 A ac 250 V/32 A dc
OCS 500 M6S8
built in 3- phase coupling network 3x440 V 100 A ac
OCS 500 N6.22
built in 3- phase coupling network 3x690 V 100 A ac 250 V/32 A dc
Mains
Power mains supply
230 V/115 V, 50/60 Hz, less than 100 W
Fuse
230 V: 2 AT slow blow, 115 V: 4 AT slow blow
Safety
Safety circuit
External interlock capability
Warning lamp
Voltage free contact max. 250 V 5 A
Design
per IEC 1010, EN 61010
Interfaces
Serial RS 232
1200 - 19200 Baud
Parallel IEEE
Address 1-31

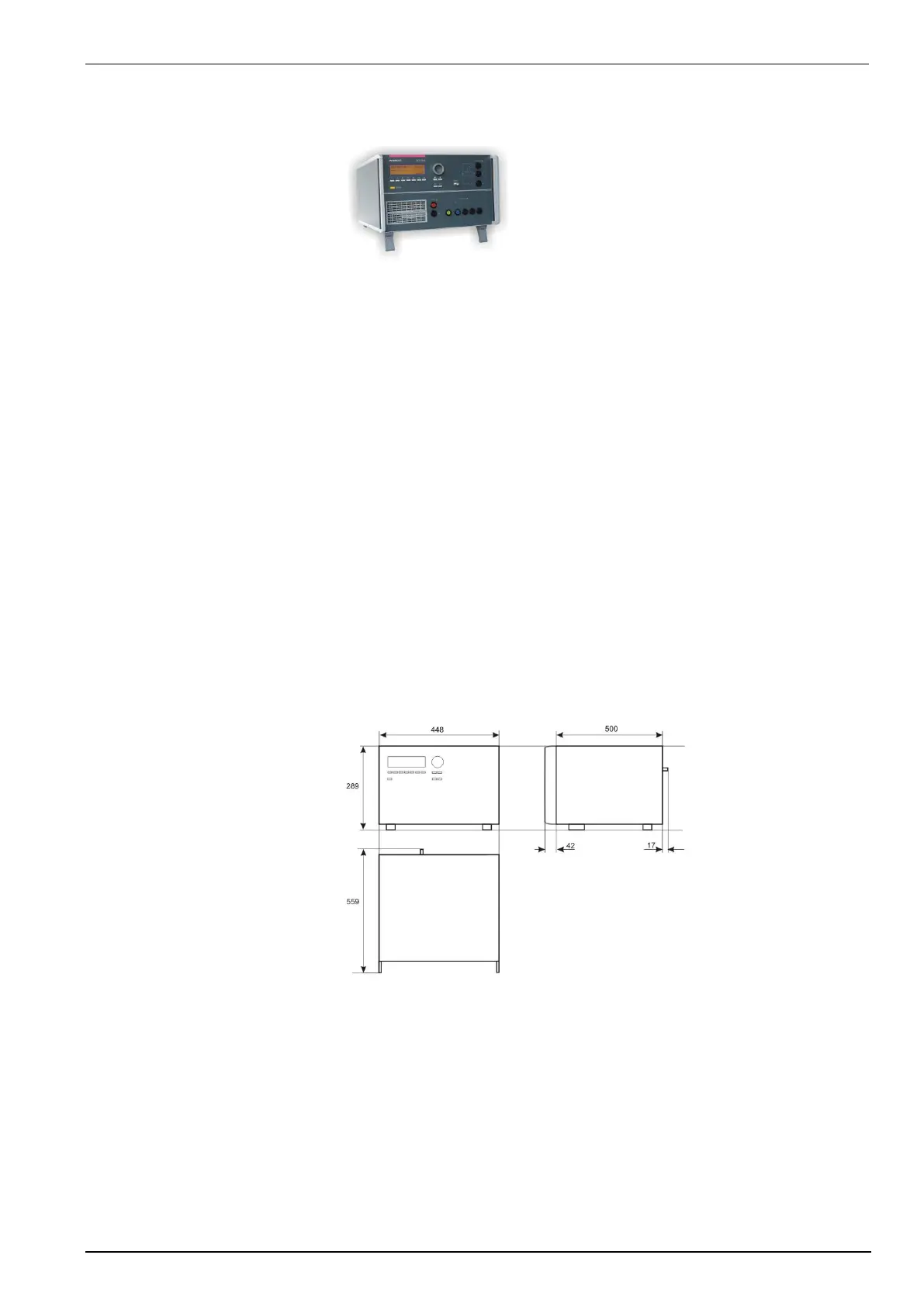

Dimensions
OCS 500 Nx
19" / 6 HU
OCS 500 M6S8
19" / 25 HU minirack 1240 x 553 x 780 mm
Weight
OCS 500 N6.5 N6.1
app. 28 kg 1ph / 16 A
OCS 500 N6.6 N6.2
app. 32 kg 1ph / 32 A
OCS 500 N6.7 N6.3
40.90 kg 3ph / 16 A
OCS 500 N6.8 N6.4
40.65 kg 3ph / 32 A
OCS 500 N6.11
40.5 kg 3ph / 32 A
OCS 500 N6.17 (for RCCB)
40.5 kg 3ph / 32 A
OCS 500 N6.20
179.5 kg 3ph / 100 A
OCS 500 N6.22
ca. 210 kg 3ph / 100 A 25 HU 1320 mm x 550 mm x 800 mm
