Ametek OCS 500N6 Series User Manual

AMETEK CTS OCS 500 N6 series
Manual for Operation V 5.24 31 / 80
5.5.
General Specifications OCS 500N6F.x
DUT Supply
OCS 500 N6F
built in 1- phase coupling network 250 V 16 A ac 250 V/16 A dc
OCS 500 N6F.1
built in 1- phase coupling network 250 V 32 A ac 250 V/32 A dc
OCS 500 N6F.2
built in 3- phase coupling network 3x440 V 16 A ac 250 V/16 A dc
OCS 500 N6F.3
built in 3- phase coupling network 3x440 V 32 A ac 250 V/32 A dc
OCS 500 N6F.4 (for RCCB)
built in 3- phase coupling network 3x440 V 32 A ac 250 V/32 A dc
Mains
Power mains supply
230 V/115 V, 50/60 Hz, less than 100 W
Fuse
230 V: 2 AT slow blow
115 V: 4 AT slow blow
Safety
Safety circuit
External interlock capability
Warning lamp
Voltage free contact max. 250 V 5 A
Design
per IEC 1010, EN 61010
Interfaces
Optical USB
1200 - 19200 Baud
Parallel IEEE
Address 1-31

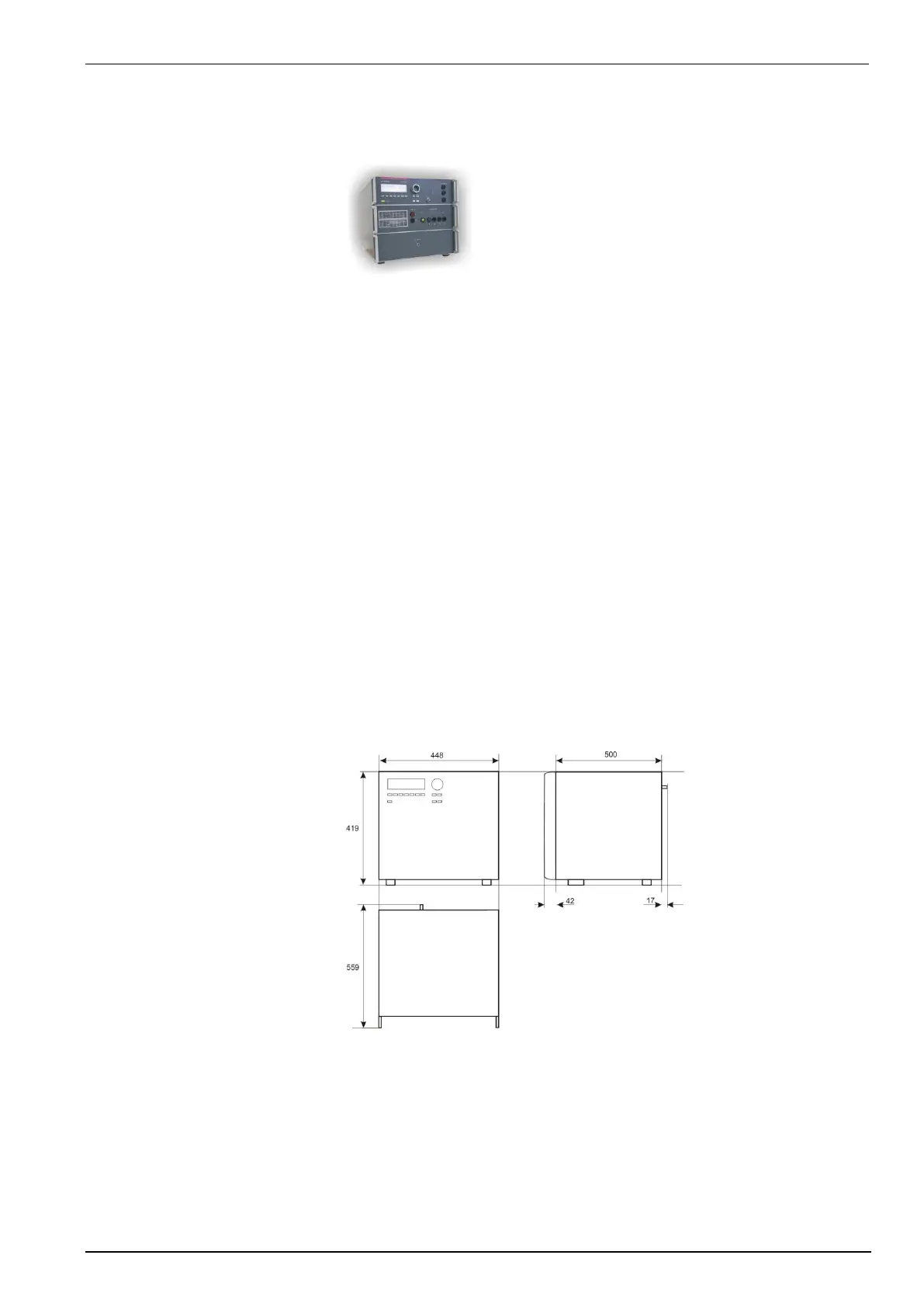

Dimensions
OCS 500 N6F.x
19" / 9 HU
Weight
OCS 500 N6F
app. 28 kg 1ph / 16 A
OCS 500 N6F.1
app. 32 kg 1ph / 32 A
OCS 500 N6F.2
50.50 kg 3ph / 16 A
OCS 500 N6F.3
app. 60 kg 3ph / 32 A
OCS 500 N6F.4
app. 60 kg 3ph / 32 A
=> Not relevant data for the standards can be changed by the manufacturer <=
