AMETEK CTS OCS 500 N6 series
Manual for Operation V 5.24 34 / 80

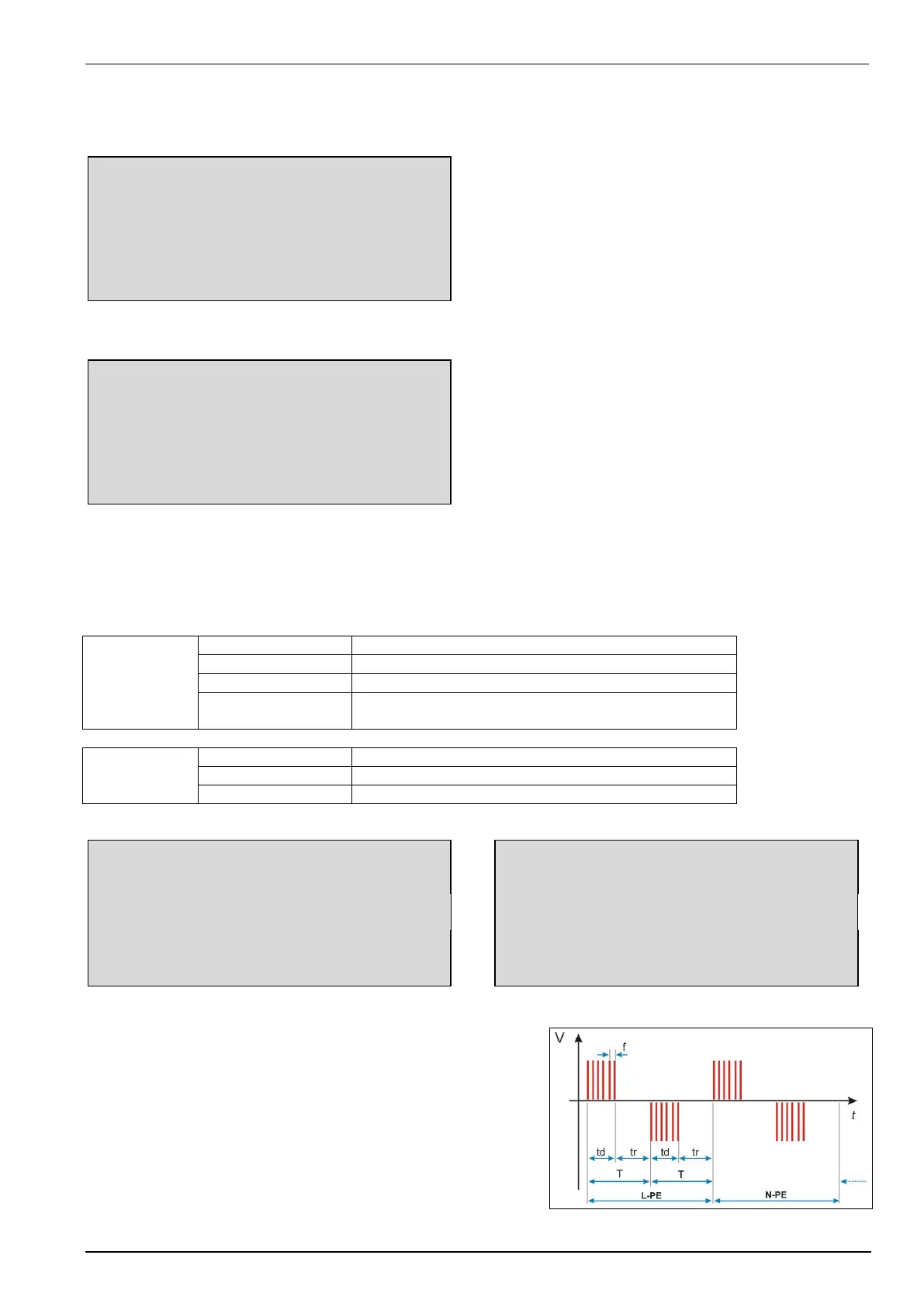

Standard test routines
The user can select preprogrammed standard test routines.
Page 3
Damped Osc. 1MHz IEC 61000-4-18
F1 : Common Mode L-PE, N-PE L+N - PE
F2 : Differential Mode L-N
Damped Osc. 1MHz IEC 61000-4-18
The standard levels for common and differential mode can be changed in the setup menu.
Level test
A selected level will step through all couplings in the selected Mode. The following parameters are used:
40/s (100 kHz) 400/s (1 MHz)
each coupling positive and negative
Differential Mode L-N
Common Mode L-PE, N-PE, L+N-PE
Page 5 (standard test in stop mode) (Running standard test)
Damped Oscillatory IEC 61000-4-18 Level 3
Damped Oscillatory IEC 61000-4-18 Level 3
current coupling 0:00:21
STOP Step complete test time 0:02:21
- The Test time shows the elapsed time per actual test level as
well as the complete time of all triggered test levels within the
running test sequence.
- Pushing the function key F2 STEP will bring you into the next
iteration sequence.
