AMETEK CTS OCS 500 N6 series
Manual for Operation V 5.24 28 / 80
5.2.
Fast damped oscillatory as per IEC 61000-4-18
Test Level
Output voltage
450V – 4`400 V  10 %

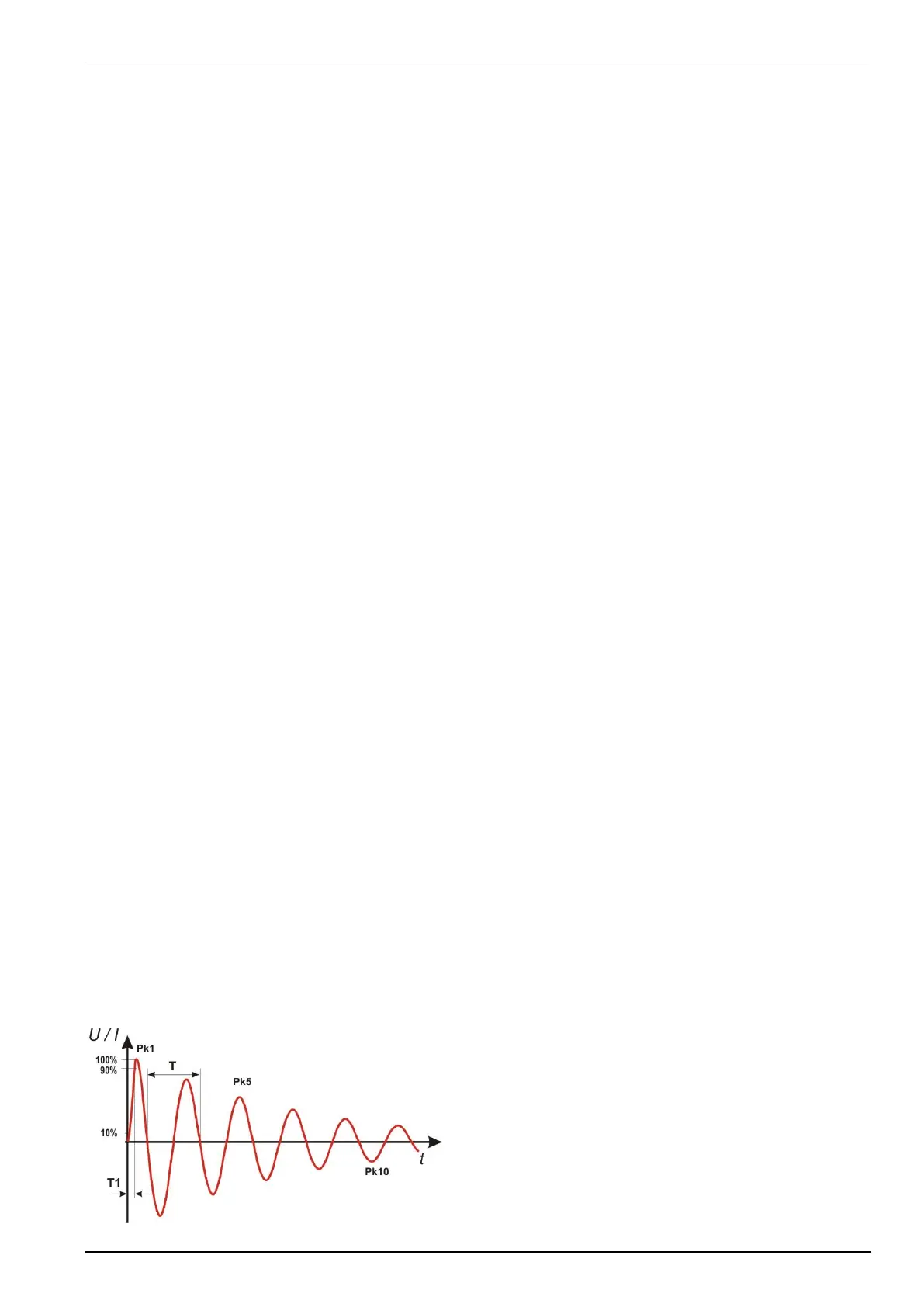

Wave form (open circuit):
Rise time
5 ns  30 %
Oscillation frequency
3 MHz, 10 MHz, and 30 MHz  10 %
Decaying (voltage)
Peak 5 must be > 50 % of peak 1 value
Peak 10 must be < 50 % of peak 1 value
No requirements for other peaks
Source impedance
Coupling capacitor
50   20 %
33 nF  10 %
Polarity
Positive, Negative
Repetition rate
5000 /s
Burst duration, td
50 ms  20 % at 3 MHz
15 ms  20 % at 10 MHz
5 ms  20 % at 30 MHz
Burst period
300 ms  20 %
Short circuit current
9 A to 88 A  20 %
Rise time current
< 330 ns at 3 MHz
< 100 ns at 10 MHz
< 33 ns at 30 MHz at
Decaying (current)
Peak 5 must be > 25 % of peak 1 value
Peak 10 must be < 25 % of peak 1 value
No requirements for other peaks
Trigger
Trigger of bursts
AUTO, MANUAL, EXTERN
Repetition rate, Rep
1 /s – 5000 /s for 3, 10, 30 MHz
Burst duration td
3 MHz: 1.0 – 50 ms
10 MHz: 1.0 – 15 ms
30 MHz: 1.0 – 5.0 ms
0.1 s – 99.9 s
Test duration, T
0:01 min – 99:59 min  1 s, endless
Repetition time tr
0.3 s – 99.9 s / Man
Output
Direct at the front panel
Coaxial 50 Ω to capacitive coupling clamp (HFK)
Coupling network 1 phase
To L, N all combinations to PE
Coupling network 3 phase
Lx-PE, N-PE, L1+L2+L3-PE, L1+L2+L3+N-PE
Test routines
Quick Start
Immediate start, all parameters adjustable during a running test
Standard test as per
IEC 61000-4-18 level 1 up to level 4
IEC 61000-4-18 Manual operated standard test routine
User test routines
Synchronized
Random release
Voltage change after T by steps of dV
Change polarity after T
