AMETEK CTS OCS 500 N6 series
Manual for Operation V 5.24 12 / 80
2.2.
OCS 500N6F models
2.2.1.

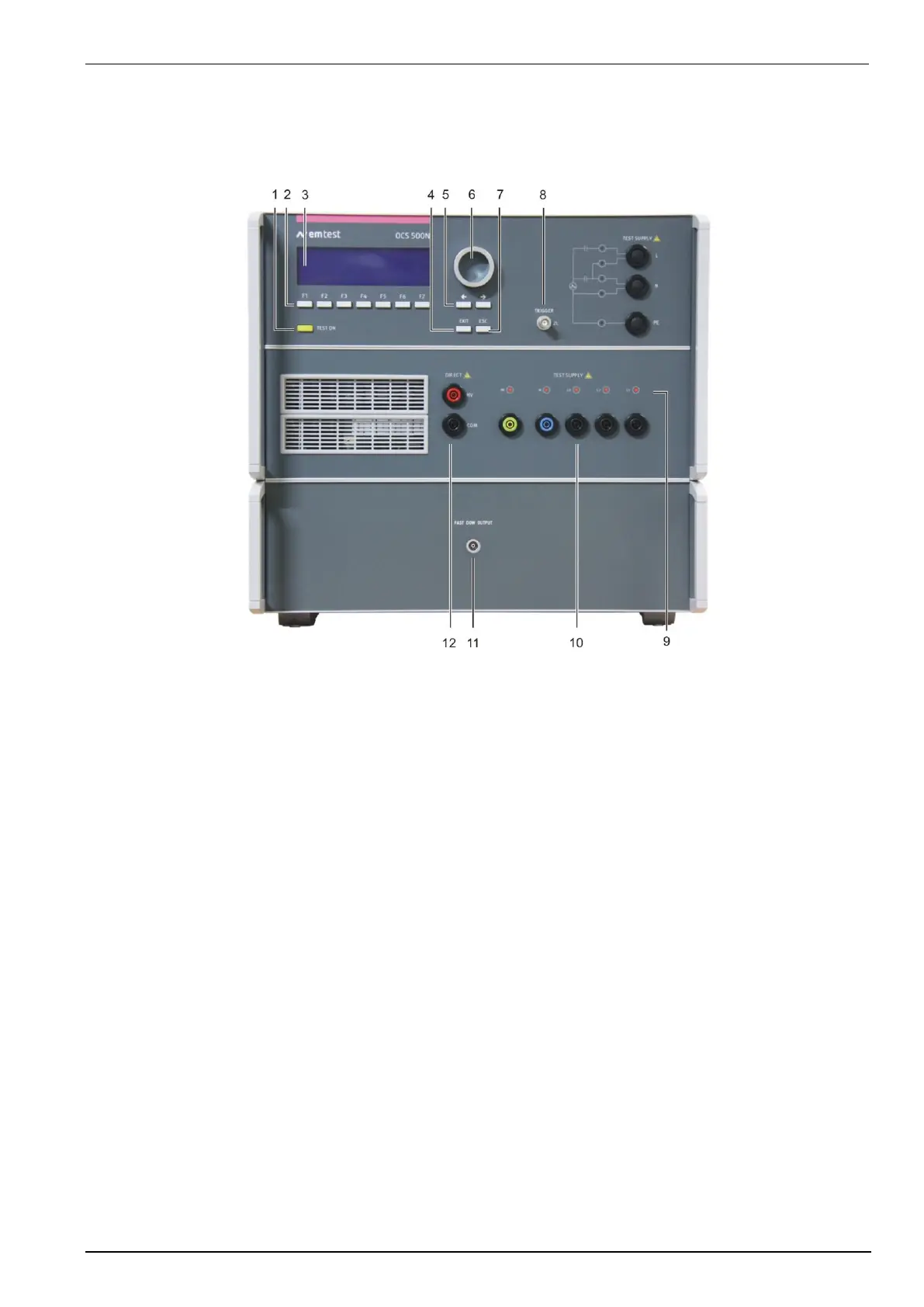

Front view OCS 500N6F.x
1 "Test On"
2 Function keys "F1..F7
3 Display
4 Exit
5 Cursor keys "" and "→"
6 Knob (Inc. / Dec)
7 Escape
8 Trigger output  5V
9 LED mains coupling 1/3 ph.
10 EUT test supply 1ph/3ph
11 Fast damped output for I/O lines
12 Direct output HV – COM
1 Test On
By pressing the key "Test On" the power supply of the high voltage part will be ready for start. The red LED indicates the
trigger of a burst event.
2 Function keys "F1 ... F7
Parameters and functions, displayed in the lowest line, can be selected with the related function key.
3 Display
All functions and parameters are displayed (8 lines with max. 40 characters).
4 Exit
Pressing of the Exit function will cause a reset of the firmware. This is only possible if no test routine is running.
5 Cursor keys
Parameters and functions can be changed on-line. The selection of these parameters is realized with the cursor moving to
the left or to the right.
6 Knob (Inc. / Dec)
The knob increments or decrements test parameters with a numeric value or selects from a list of parameters.
7 ESC
When pressing the ESC button the user moves back one page in the menu. The displayed parameters before are stored.
8 Trigger
At the BNC output (5V pos slope) the generator trigger can be used as oscilloscope trigger output. It is synchronous to the
impulse events.
