Ametek OCS 500N6 Series User Manual

AMETEK CTS OCS 500 N6 series
Manual for Operation V 5.24 41 / 80
6.3.2.

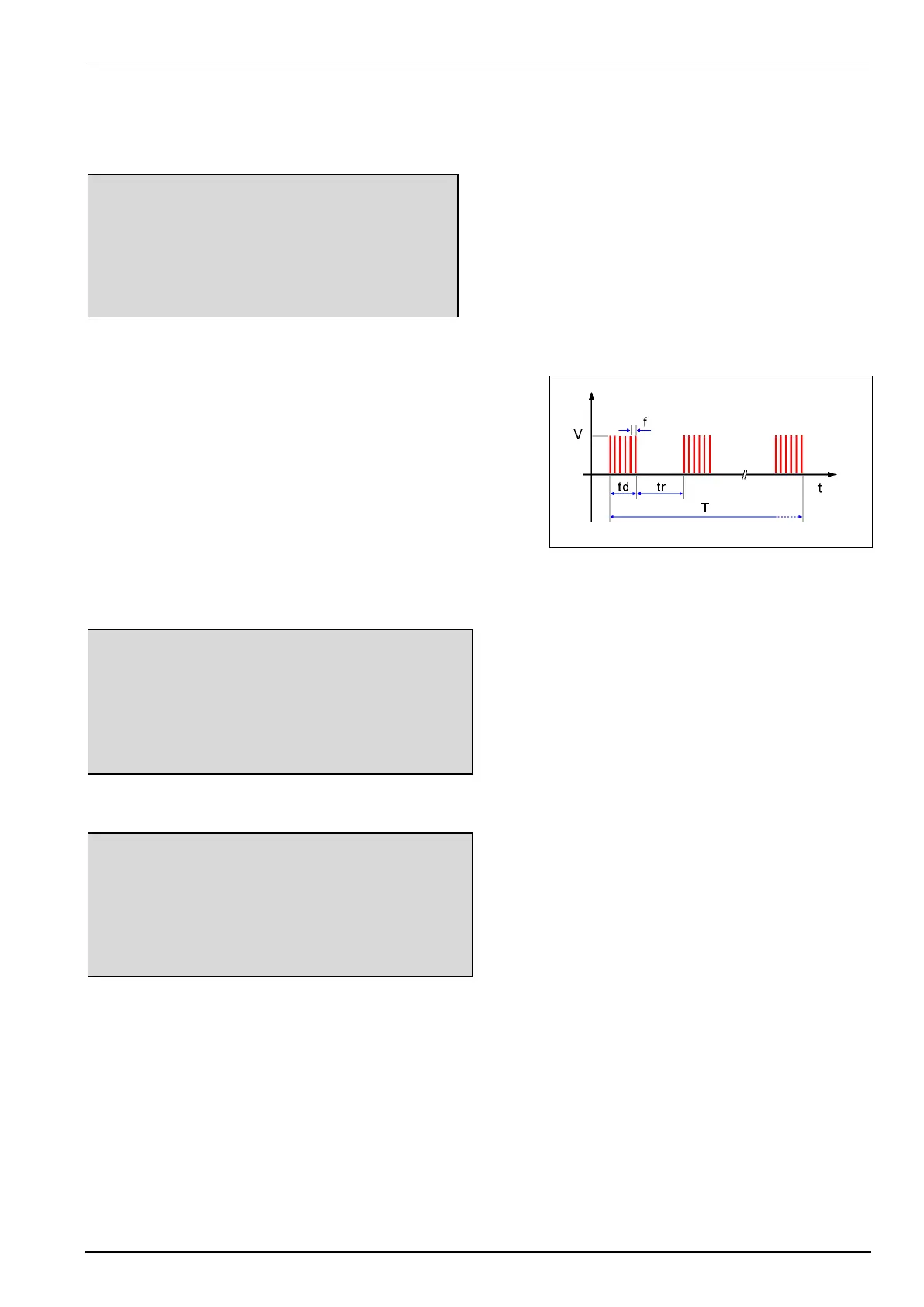

Quick start
Easy and very fast operation of all standard functions of the device. The latest simulator settings are stored
automatically and will be recalled when Quick Start is next selected.
Page 3
Damped Osc. 1MHz EXT. Quick start
V = 500 V Rep = 400/s
td = 2 s tr = 2s
cpl = M1 L1-L2 +/- = +
T = 01:00 min
START CHANGE
F1
F2
F3
F4
F5
F6
F7
Press ESC will bring the user back to the previous menu level.
All function keys except F2 (manual trigger) can Stop the test
routine.
Burst specification as pre IEC 60255-26
Td = 2s
tr = not specified (2s factory setting)
f = 400/s for 1MHz
6.3.3.
Standard test routines
The user can select preprogrammed standard test routines.
Page 3
Damped Osc. 1MHz EXT. IEC 60255-26
F1 : Common Mode 1 L1+L2, L3+L4, L5+L6, L7+L8
F2 : Common Mode 2 L1+L2, L3+L4, L5+L6, L7+L8
F3 : Differential Mode L1-L2, L3-L4, L5-L6, L7-L8
F1
F2
F3
F4
F5
F6
F7
Page 4
Damped Osc. 1MHz EXT. IEC 60255-26
F1 : Level 1 1000 V
F2 : Level 2 2500 V
F1
F2
F3
F4
F5
F6
F7
The standard levels for common and differential mode can be changed in the setup menu.
