Test Equipment OCS 500 Nx
4.1.

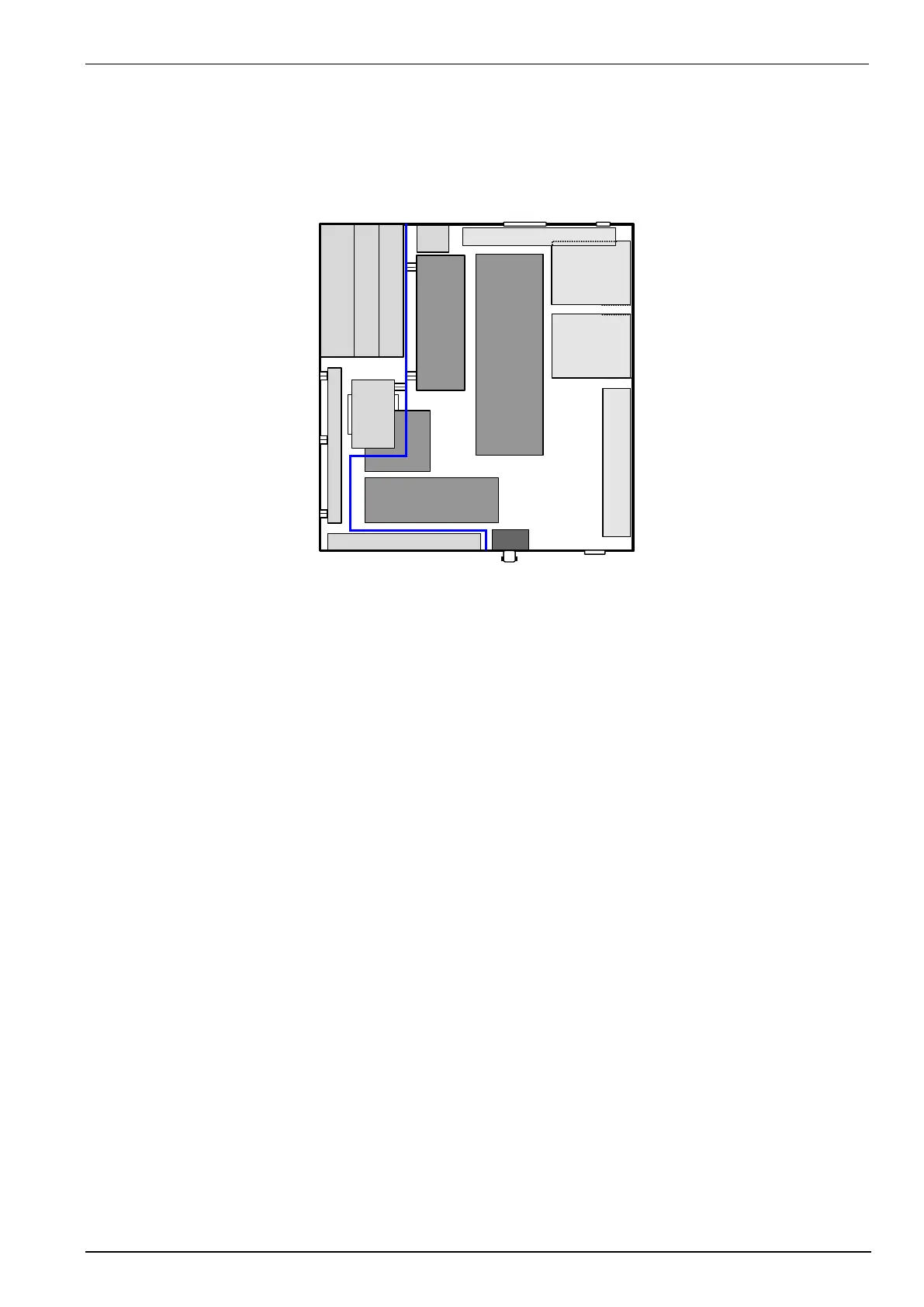

Assembling OCS 500N6
1
2
3
Frontpanel
Rearpanel
11
1
2
3
4
5
1
6
8
9
10
12
11
14
13
13
9
15
16
17
7
3
18
3
Control unit
1 Power supply board
2 Interface board
3 Controller board
4 Power supply transformer
5 Filter board / connecting board
6 Keyboard / LCD- display
High voltage unit
7 General power supply input, filter
8 Ventilation
9 High voltage power supply
10 Storage capacitor
11 Damped oscillatory module
12 Ringwave module
Coupling/decoupling unit
13 Decoupling chokes
14 Coupling network
15 Filter board for the EUT supply
16 Input EUT supply
17 Output for the EUT supply
18 Trigger output BNC
