Coupling to Signal- and Datalines
For coupling of Ringwave or damped waves to signal- and data lines special coupling network as per IEC 61000-4-
12 / -18 are available. The CND uses special coupling capacitors (CNV 504N1 for four lines).
For many applications special coupling networks are necessary for such kind of test.
CDN 504N1.x CDN 508N1.x and CDN504N2.x CDN 508N2.x
- IEC 61000-4-5
- IEC 61000-4-12,
- ANSI IEEE C62.41.2

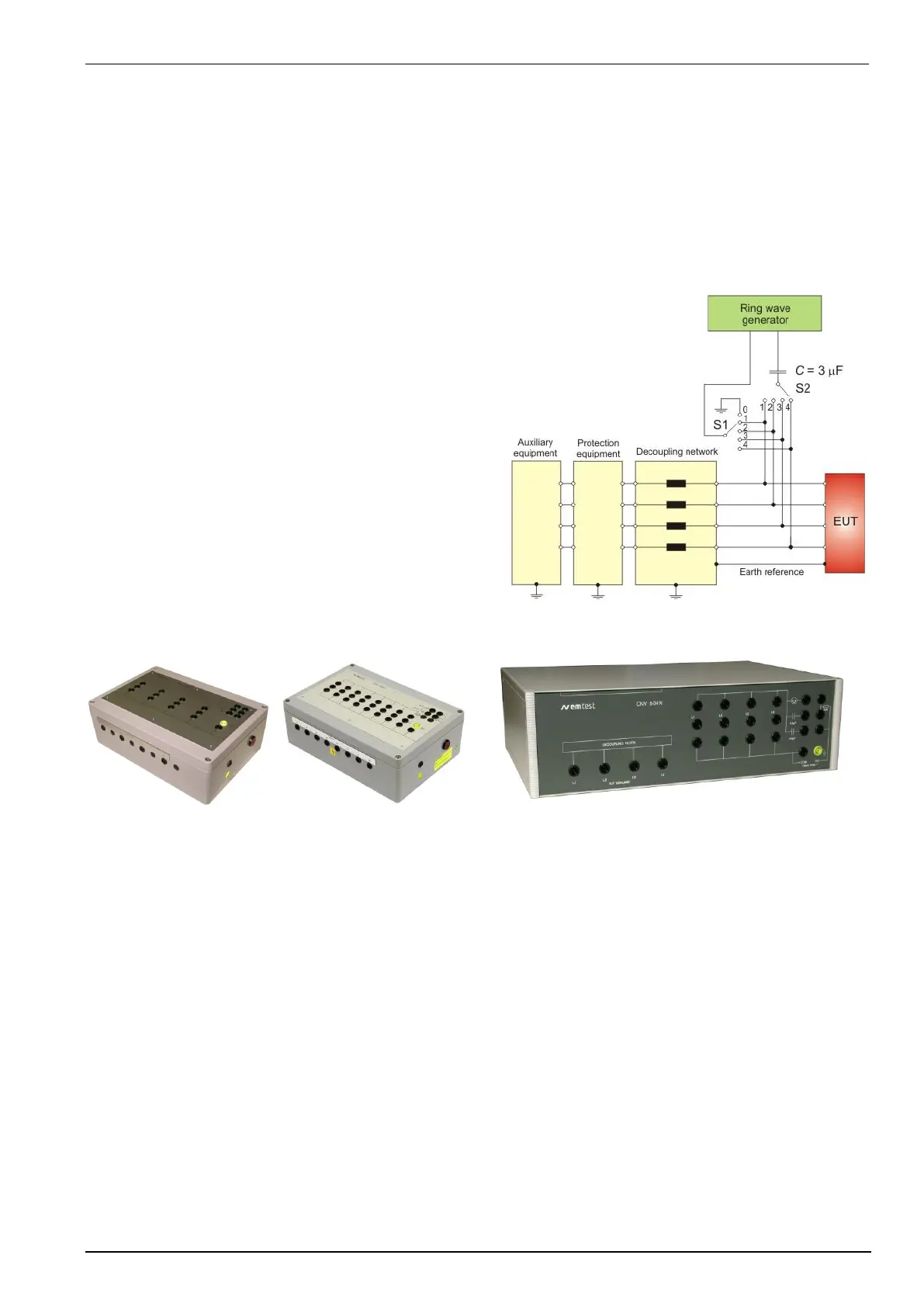

For coupling of signal and- und data lines as per figure 9 of
IEC 61000-4-12, AMETEK CTS offers the coupling
networks of the series CNV.
CDN up to 4 lines: CNV 504N1.x 4 kV
CNV 504N2.x 7 kV
CDN up to 8 lines: CNV 508N1.x 4 kV
CNV 508N2.x 7 kV
The CDN are designed for different test voltages with
various nominal voltages and currents. The protected levels
on the EA port can be customized in different steps.
Because the large number of CDN’s only the basic types
are listed below.
