AMETEK CTS OCS 500 N6 series
Manual for Operation V 5.24 32 / 80

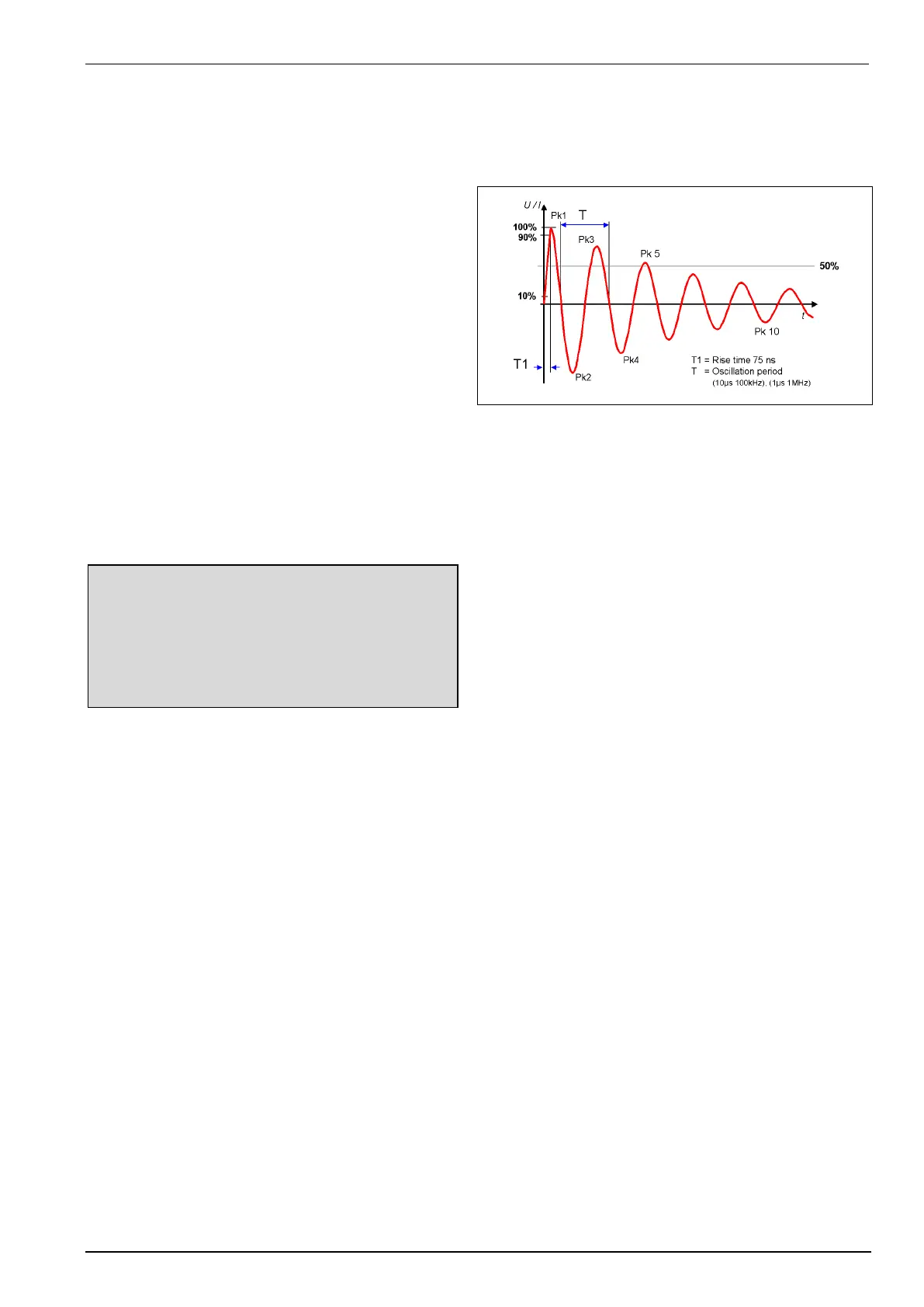

Damped Oscillatory 100 kHz or 1 MHz as per IEC 61000-4-18
This phenomenon is representative of switching of isolators in HV / MV open-air stations, and is particularly
related to the switching of HV bus-bars, as well as of background disturbances in industrial plants.
Verification as per IEC 61000-4-18:
Open circuit
V peak 250 V – 2500 V ±10 %
Rise time first peak 75 ns ±20 %
Oscillating frequency 100, 1000 kHz ±10 %
Decaying of peak 5-1 > 50% of peak 1
Decaying of peak 10-1 < 50% of peak 1
Repetition rate at least 40/s for 100 kHz
at least 400/s for 1 MHz
Short circuit
I peak (200) 1.25, 2.5, 5, 10A ± 20 %
Source impedance 200 20 %
Operation
This menu offers different test routines for Damped Oscillatory testing. The menu structure is identical for both,
the 100 kHz and the 1MHz damped oscillatory.
Page 2
Damped Osc. 1MHz IEC 61000-4-18
F2 : Standard test routines
F1 Quick start
Easy and fast online-operation of the equipment.
F2 Standard test routines
The operator can select between various preprogrammed test routines as required in different standards
F3 User test routines
The operator can select between various preprogrammed test routines which helps to accelerate testing and
which are very helpful especially during design.
