Description
Page 18 of 100 Back-in-Box-Lift K70 / K90 / K90 ACTIVE
The side nearest the vehicle is provided with a transfer
plate. During the raising and lowering procedure, this
transfer plate forms a guard that prevents the passenger’s
feet from being caught between the platform and the un-
derside of the vehicle (see Figure 3 and Figure 4, page 17).
When the platform reaches the same level as the floor in-
side the vehicle, the transfer plate folds down onto the
floor. The passenger then uses the transfer plate as a

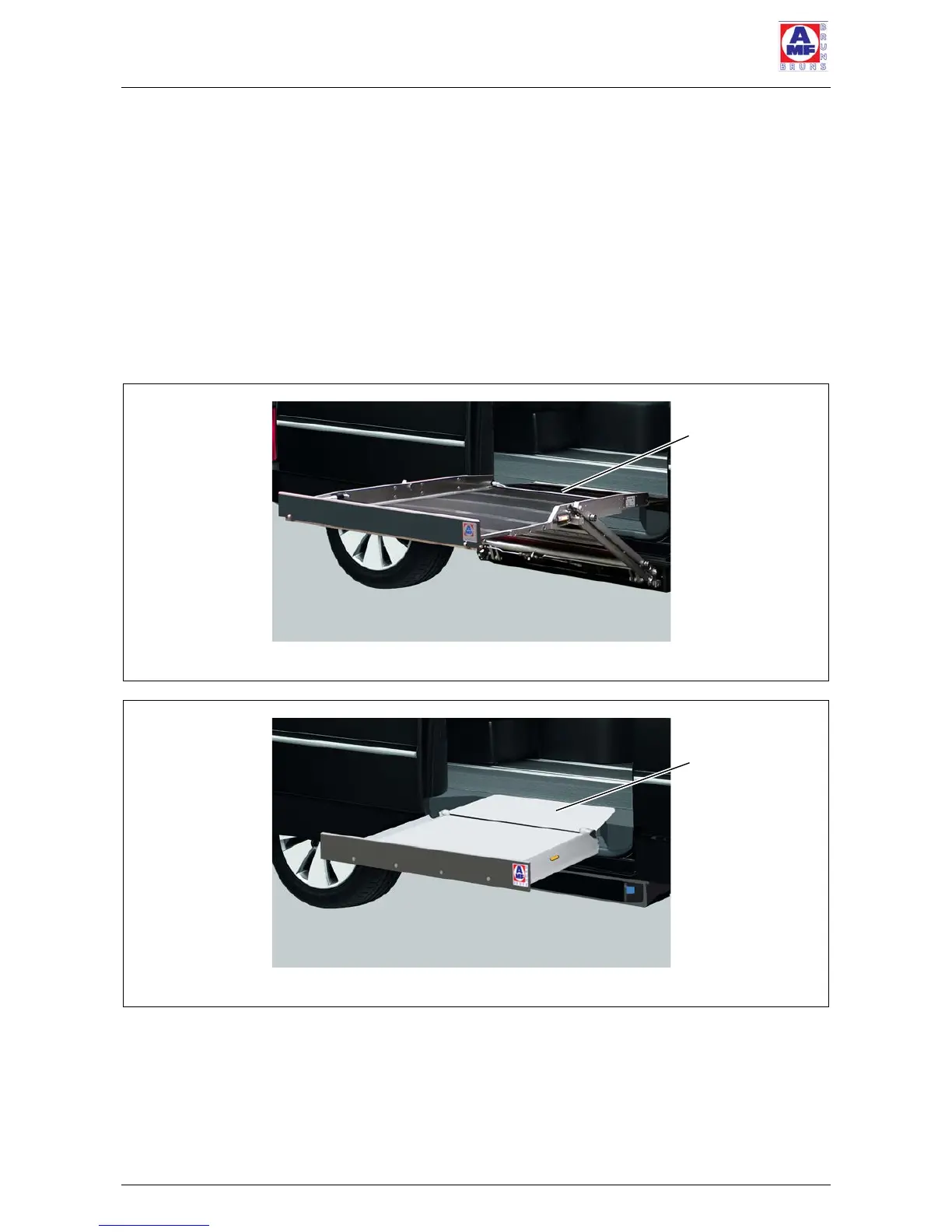

bridge to cross from the platform into the vehicle (see Fig-
ure 5 and Figure 6).
Guards are provided on all other sides of the platform to
prevent the wheelchair from rolling off the platform (see
Figure 5 and Figure 6).
