Description
Back-in-Box-Lift K70 / K90 / K90 ACTIVE Page 19 of 100
On the K70 and K90, one of the platform’s two side guards
is optionally shortened to extend roughly half way along
that side. This provides side access to the platform, mak-
ing it easier for the passenger to roll on and off the plat-
form when there is limited space available outside the ve-
hicle (see Figure 7).

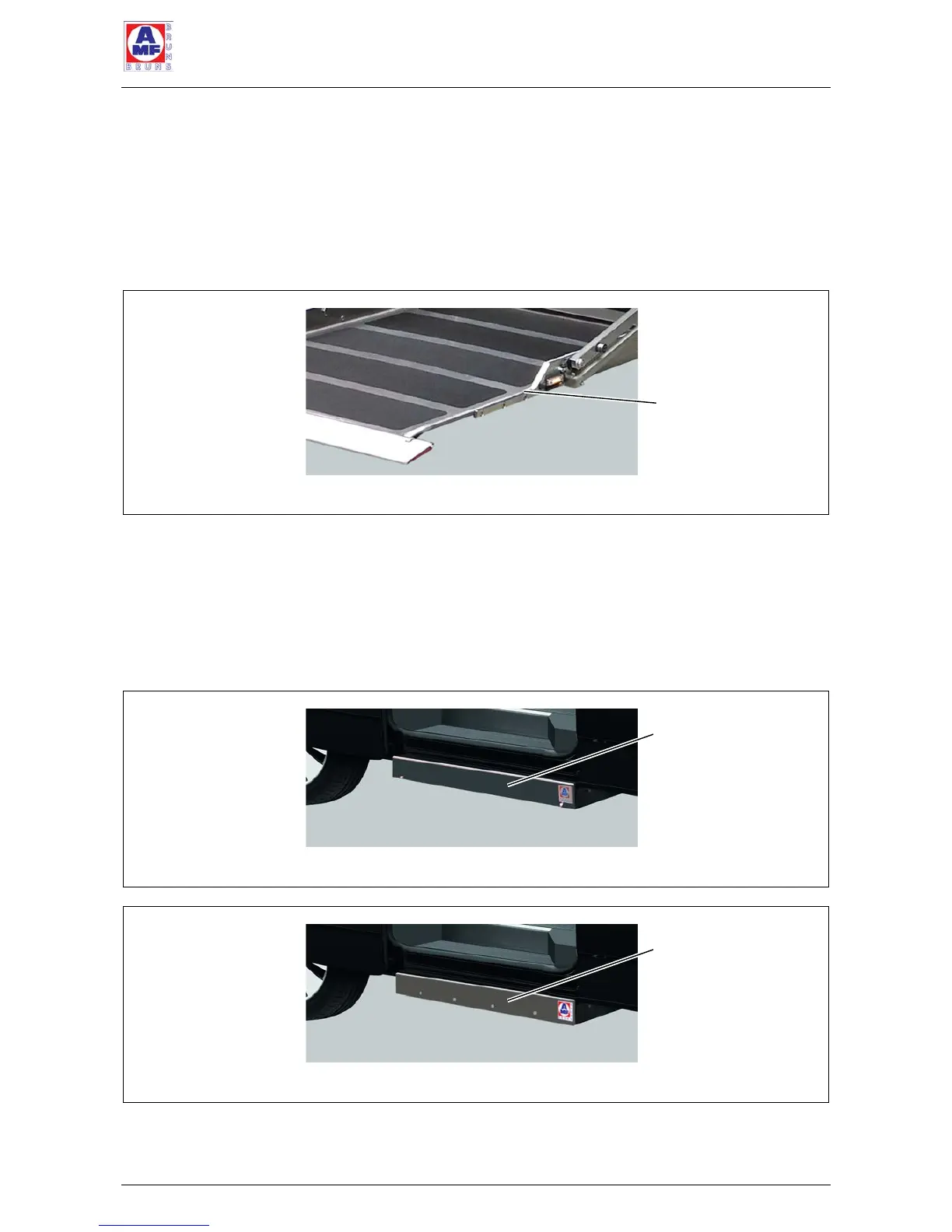

Figure 7: Back-in-Box-Lifts K70 and K90 with Side Access
When the platform on the K70 or K90 is retracted into the
cassette, the raised roll-off guard acts as a cover for the
cassette (see Figure 8). With the K90 ACTIVE, the platform
side guard acts as a cover for the cassette (see Figure 9).
In each case this prevents dirt from entering the mechan-
ics of the Back-in-Box-Lift.
Figure 8: Back-in-Box Lifts K70 and K90, Retracted
Figure 9: Back-in-Box-Lift K90 ACTIVE, Retracted
Short platform
side guard
