Faults and Troubleshooting
Page 66 of 100 Back-in-Box-Lift K70 / K90 / K90 ACTIVE

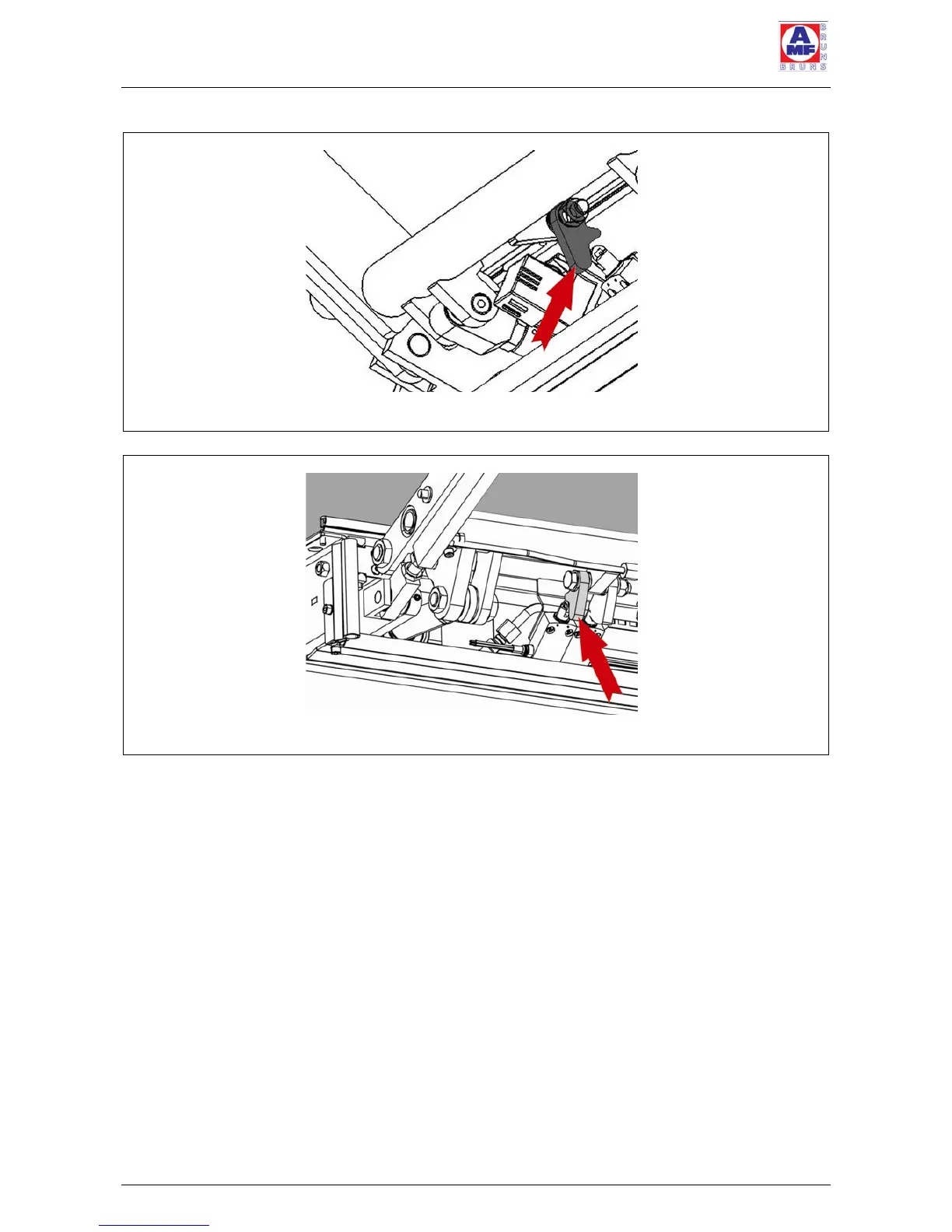

Figure 45: Adjusting the Switching Cam, View from Below (K70)
Figure 46: Adjusting the Switching Cam, View from Below (K90)
ð Carry out a trial run.
ð Repeat the procedure if the platform still jerks when be-
ing retracted.
