Anritsu Spectrum Master MS2720T Maintenance Manual

2-7 Resolution Bandwidth Accuracy Verification Chapter 2 — Spectrum Analyzer Verification
2-12 PN: 10580-00342 Rev. D MS2720T MM
2-7 Resolution Bandwidth Accuracy Verification
The following test is used to verify the resolution bandwidth accuracy of the spectrum analyzer in the
MS2720T Spectrum Master.
Equipment Required for MS2720T with option MS2720T/709, MS2720T/713, or MS2720T/720
• Anritsu MG3692x Synthesized Signal Source (see equipment list for required options)
• Frequency Reference Symmetricom Rubisource T&M
• Anritsu 34RKNF50 50 ohm Adapter
• Anritsu 15NN50-1.5C RF Coaxial Cable
• BNC male to BNC male Coaxial Cable
Equipment Required for MS2720T with option 732 or 743
• Anritsu MG3695C Synthesized Signal Source (see equipment list for required options)
• Frequency Reference Symmetricom Rubisource T&M
• Anritsu 34VKF50 50 ohm Adapter
• Anritsu 3670K50-2 RF Coaxial Cable
• BNC male to BNC male Coaxial Cable
Setup

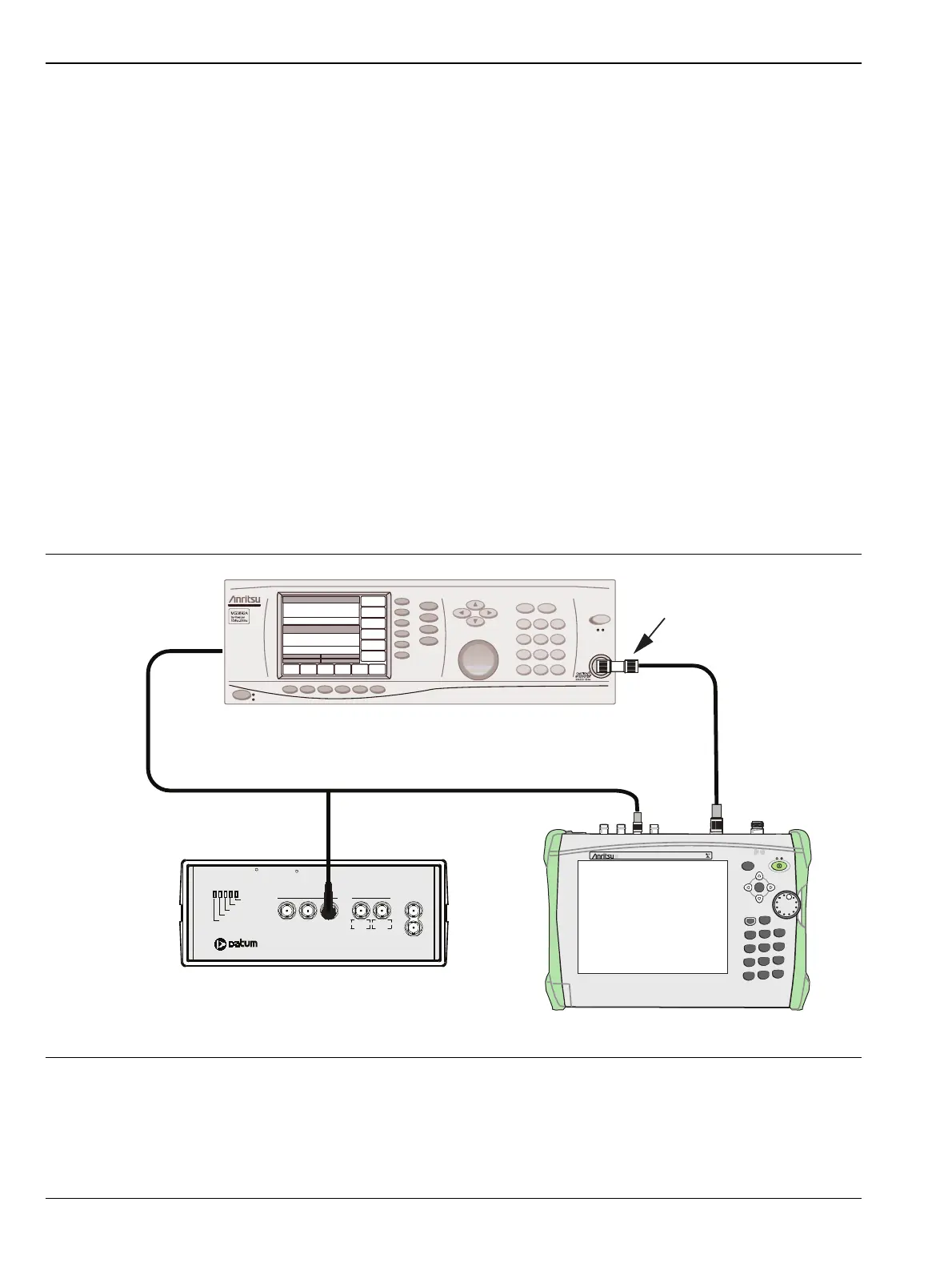

Figure 2-1. Resolution Bandwidth Accuracy Test Setup
Power
MS2720T
Spectrum Analyzer
SpectrumMaster
Charge
File
7
System
8
Shift
Esc
Mode
9
Meas
4
Trace
5
Limit
6
Preset
1
Cal
2
Sweep
3
0
.
+/-
Menu
Enter
MS2720T Spectrum Master
10 MHz Reference
MG3692x Signal General
Adapter
Oscillator Warmup
Oscillator Ready
Failure
1 PPS Sync
1 PPS OUT
1 MHz 5 MHz 10 MH
5 MHz 10 MHz
Sine wave Out AUX
1 PPS IN
Power
TESTIME
PLUS
R
RubiSource T&M
R
Ext Ref In
(back panel)
Ext Ref In
10 MHz
Sine Out
