4-2 Battery Pack Removal and Replacement Chapter 4 — Battery Information
4-2 PN: 10580-00342 Rev. D MS2720T MM
4-2 Battery Pack Removal and Replacement
This section provides instructions for the removal and replacement of the Spectrum Master battery pack.
1. Locate the battery access door illustrated in Figure 4-1.
2. With the Spectrum Master laying flat and face up on a stable surface, grab the battery access door notch
and pull the battery door down towards the bottom of the instrument as shown in Figure 4-2.
Note
Many of the procedures in this section are generic, and apply to many similar instruments. Photos
and illustrations used are representative and may show instruments other than the Spectrum Master.

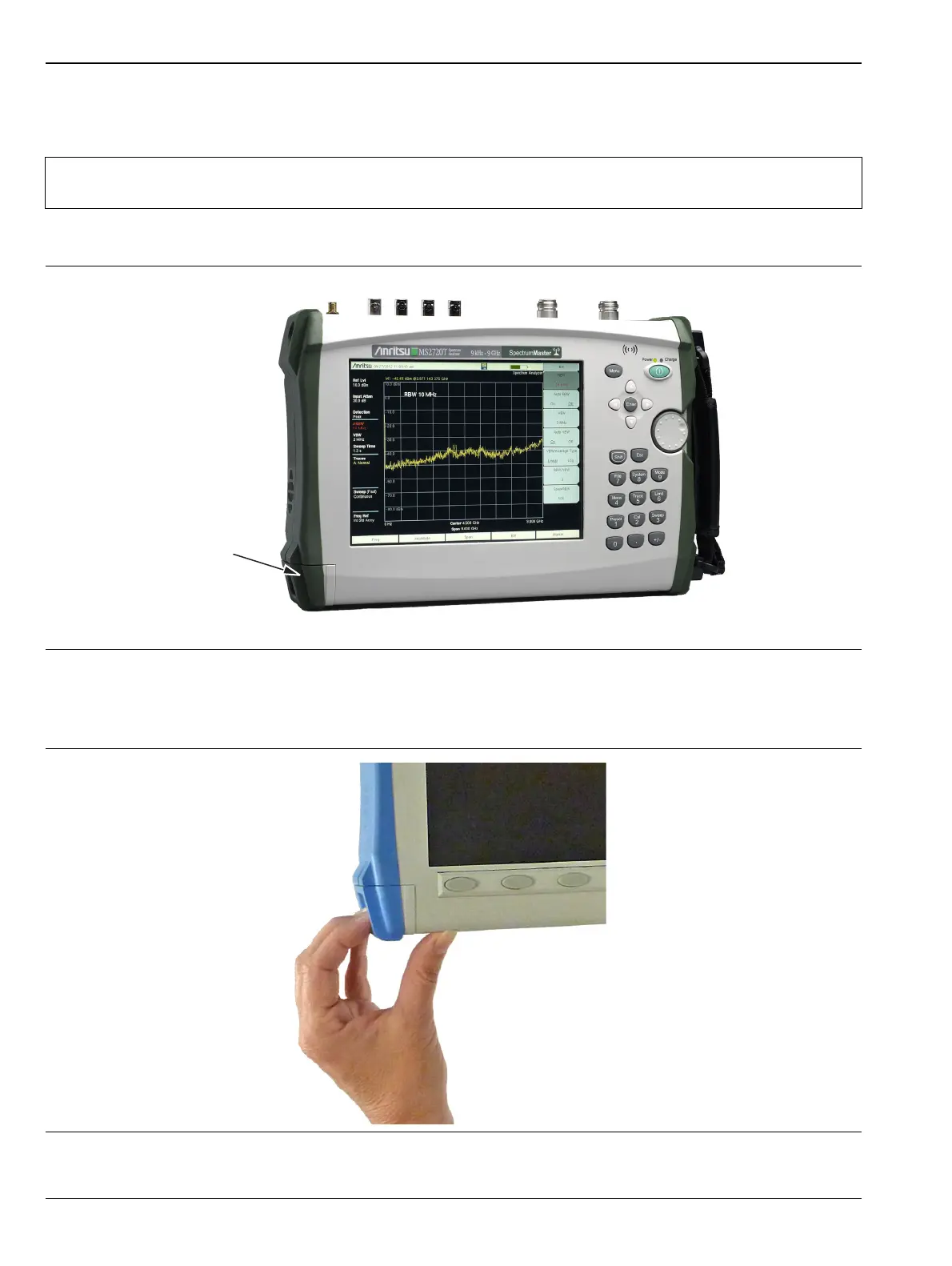

Figure 4-1. Battery Access Door Location and Finger Notch
Figure 4-2. Opening the Battery Access Door
Battery Door
Location and
Finger Notch
